M216KASPC - Exmark 21" Metro Self-Propelled Walk-Behind Mower, 6HP Kawasaki (SN: 440000 - 509999) (2004)

21" Metro Self-Propelled Walk-Behind Mower, 6HP Kawasaki

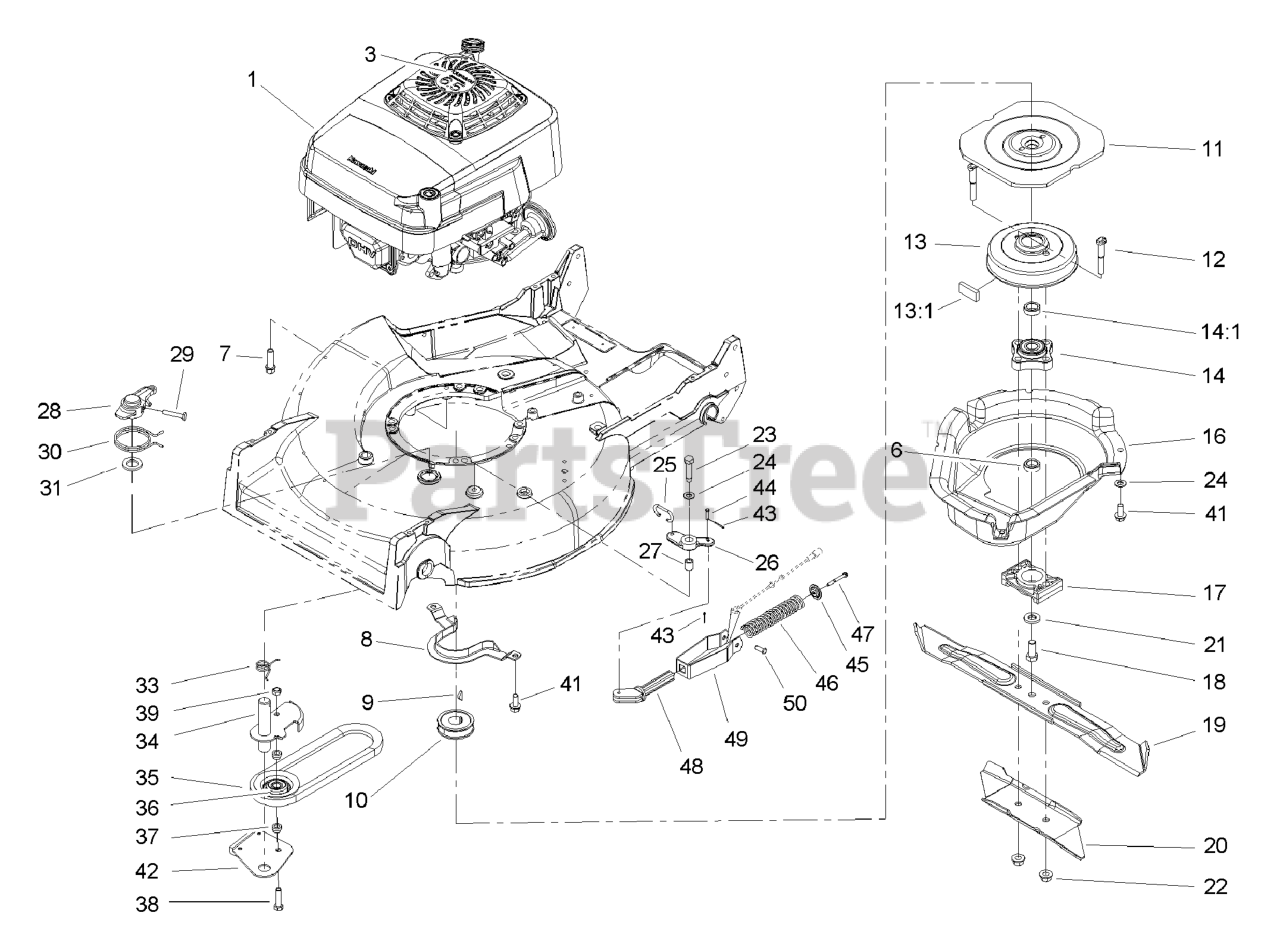

M216KASPC - Exmark 21" Metro Self-Propelled Walk-Behind Mower, 6HP Kawasaki (SN: 440000 - 509999) (2004) > Parts Diagrams (10) > Engine And Blade Assembly

  • Title
Engine-Kawasaki, Fj180v-As09

1

Engine-Kawasaki, Fj180v-As09

Part# Engine-Kawasaki, Fj180v-As09

Not available

106-0843

3

Decal-Recoil

Part# 106-0843

OEM Warranty Repair Part for Exmark

Not available

107-4058

6

Spacer-Output Shaft

Part# 107-4058

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.64

95-1727

7

Screw-Taptite

Part# 95-1727

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.36

66-0570-03

8

Bracket-Guide, Belt

Part# 66-0570-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.22

3257-17

9

Key-Woodruff

Part# 3257-17

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.77

56-6180

10

Pulley-Driver

Part# 56-6180

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $35.60

56-6160-03

11

Flywheel-Bbc

Part# 56-6160-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $72.72

42-3190

12

Bolt-Blade

Part# 42-3190

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.84

94-9431

13

Brake Drum Asm

Part# 94-9431

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $31.16

52-3480

13:1

Dampner-Vibration

Part# 52-3480

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.50

42-6890

14

Hub Asm

Part# 42-6890

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $64.63

100-1048

14:1

Bearing-Ball

Part# 100-1048 (Superseded to 38-7820)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.69

46-5693

16

Shield

Part# 46-5693

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $21.92

62-4280

17

Spacer-Blade

Part# 62-4280 (Superseded to 107-4275)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $17.23

3212-4

18

Screw-Hh

Part# 3212-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.69

42-1000-03

19

Blade

Part# 42-1000-03 (Superseded to 107-4276-03)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $21.92

91-2255-03

20

Stiffener-Blade

Part# 91-2255-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $53.08

107-4059

21

Cap-Engine

Part# 107-4059 (Superseded to 1-603610)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.40

54-9190

22

Nut-Lock

Part# 54-9190 (Superseded to 127-6852)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.36

32104-107

23

Screw-Hh

Part# 32104-107

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.26

3256-23

24

Washer-Flat

Part# 3256-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.72

49-2810

25

Link-Control

Part# 49-2810

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.08

49-7960

26

Bellcrank

Part# 49-7960

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.74

49-7950

27

Sleeve-Bellcrank

Part# 49-7950

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.73

49-2820

28

Lever

Part# 49-2820

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.32

32104-96

29

Screw-Hh

Part# 32104-96

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.28

49-7970

30

Spring-Torsion

Part# 49-7970

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.00

70-1160

31

Washer

Part# 70-1160

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.69

85-6880

33

Spring-Torsion

Part# 85-6880

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.10

84-9130

34

Arm-Idler

Part# 84-9130

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $29.96

100-6486

35

V-Belt

Part# 100-6486

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.83

46-5650

36

Pulley-Idler

Part# 46-5650 (Superseded to 117-5299)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $33.46

46-5631

37

Hub-Pulley, Idler

Part# 46-5631

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.99

322-6

38

Screw-Hh

Part# 322-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.19

3296-47

39

Nut-Lock, Ni

Part# 3296-47

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.29

32144-70

41

Screw-Hh

Part# 32144-70

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.54

84-9180

42

Brake Plate Asm

Part# 84-9180 (Superseded to 125-1065)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $17.31

3272-1

43

Pin-Cotter

Part# 3272-1

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.25

84-9050

44

Pin-Spring

Part# 84-9050

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.02

65-5280

45

Retainer-Spring

Part# 65-5280

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.23

84-9100

46

Spring

Part# 84-9100

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.07

46-7040

47

Screw-Hwhtf

Part# 46-7040

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.87

84-8870

48

Guide-Spring

Part# 84-8870 (Superseded to 106-0842)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $11.53

84-8880-03

49

Bracket-Spring

Part# 84-8880-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.44

84-9040

50

Pin-Cable

Part# 84-9040

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.50
