M216KASPC - Exmark 21" Metro Self-Propelled Walk-Behind Mower, 6HP Kawasaki (SN: 440000 - 509999) (2004)

21" Metro Self-Propelled Walk-Behind Mower, 6HP Kawasaki

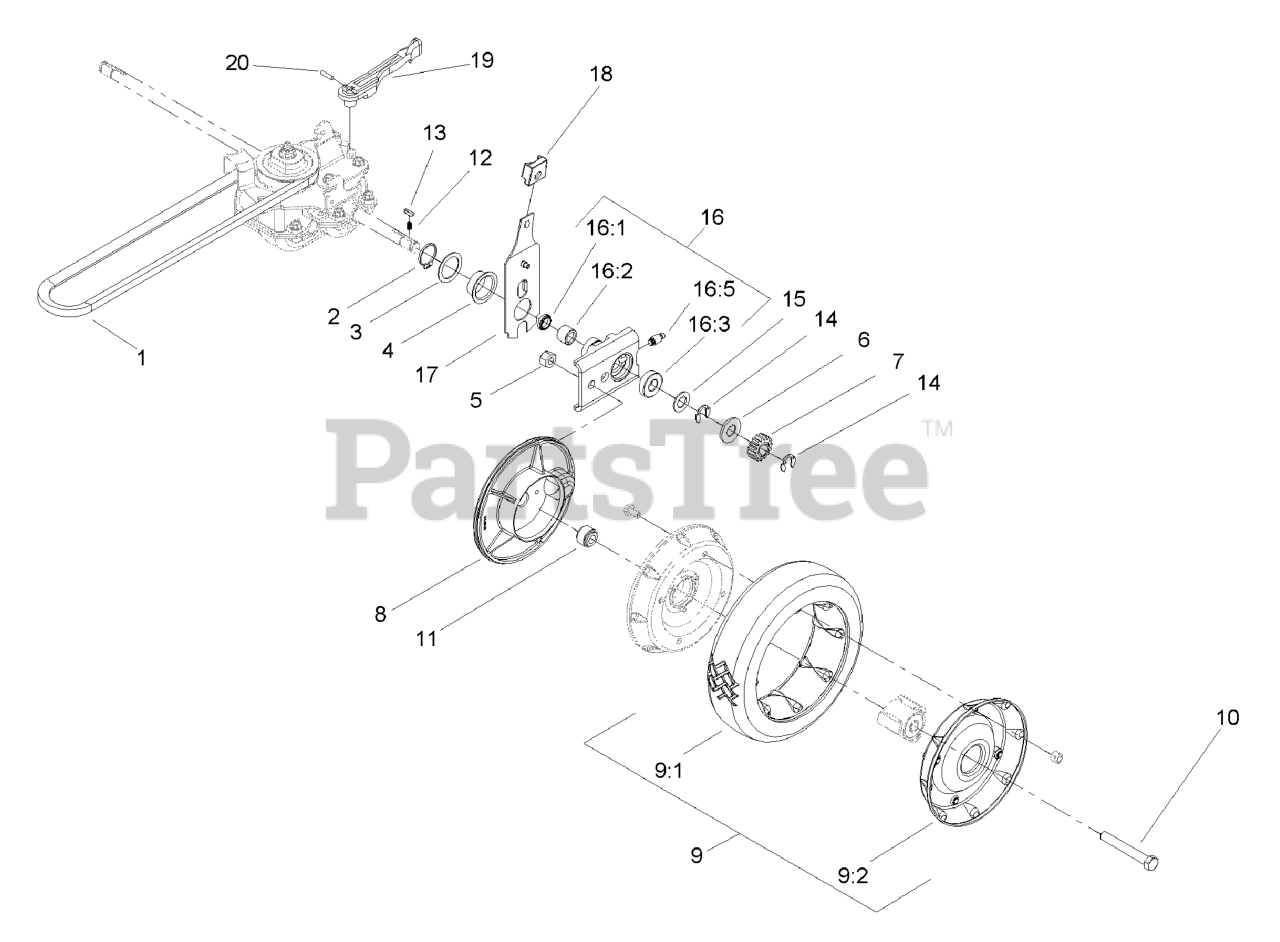

M216KASPC - Exmark 21" Metro Self-Propelled Walk-Behind Mower, 6HP Kawasaki (SN: 440000 - 509999) (2004) > Parts Diagrams (10) > Rear Axle And Transmission Assembly

  • Title
1-213237

1

V-Belt

Part# 1-213237

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $10.00

32151-36

2

Ring-Retaining

Part# 32151-36

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.65

74-1810

3

Washer

Part# 74-1810

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

48-2170

4

Cap-End

Part# 48-2170

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.91

32152-2

5

Nut-Hex

Part# 32152-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.40

62-3830

6

Washer-Thrust, Outer

Part# 62-3830

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.99

39-9160

7

Gear-Pinion

Part# 39-9160

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $10.38

74-1640

8

Cover-Wheel

Part# 74-1640

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.98

100-2860

9

Wheel And Tire Asm

Part# 100-2860 (Superseded to 121-1379)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $85.46

53-7740

9:1

Tire

Part# 53-7740

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $28.84

Wheel Asm

9:2

Wheel Asm

Part# Wheel Asm

Note: Not serviced separately

Not available

323-13

10

Screw-Hh

Part# 323-13

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.91

74-1650

11

Spacer-Cover, Wheel

Part# 74-1650

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.31

39-9650

12

Spring-Compression

Part# 39-9650

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.12

612066

13

Key

Part# 612066

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.83

32151-68

14

Ring-Retaining

Part# 32151-68

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.99

49-7700

15

Washer-Thrust, Outer

Part# 49-7700

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.58

74-1851

16

Pivot Arm Asm

Part# 74-1851

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $63.48

47-6730

16:1

Seal-Oil

Part# 47-6730

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.07

48-2060

16:2

Bearing-Roller

Part# 48-2060 (Superseded to 117-3500)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.91

52-2450

16:3

Bearing-Wheel

Part# 52-2450

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $13.84

92-6316

16:5

Zerk

Part# 92-6316

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.14

66-7561

17

Rear Spring Arm Asm

Part# 66-7561

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $10.72

25-7740

18

Knob-Arm

Part# 25-7740

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.57

74-1960

19

Lever-Shift

Part# 74-1960

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.02

32121-99

20

Pin-Coil

Part# 32121-99

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.84

100-2512

99

Tube-Drain, Oil

Part# 100-2512

Note: Not illustrated

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $10.01

100-2886

99

Grass Bag Asm

Part# 100-2886 (Superseded to 109-4961)

Note: Not illustrated

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $158.02
