M216KASPC - Exmark 21" Metro Self-Propelled Walk-Behind Mower, 6HP Kawasaki (SN: 510000 - 599999) (2005)

21" Metro Self-Propelled Walk-Behind Mower, 6HP Kawasaki

M216KASPC - Exmark 21" Metro Self-Propelled Walk-Behind Mower, 6HP Kawasaki (SN: 510000 - 599999) (2005) > Parts Diagrams (9) > Blade Assembly

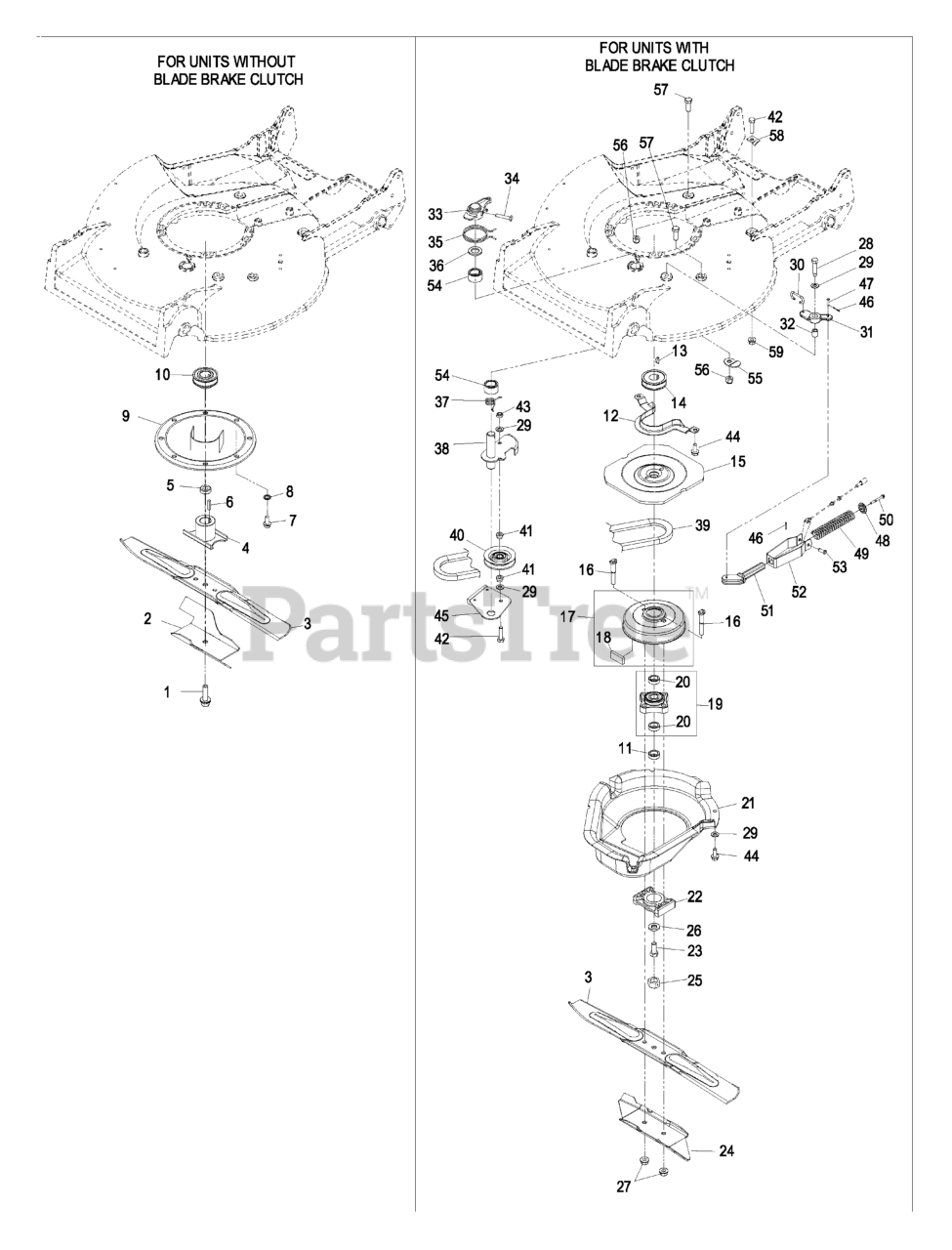

  • Title
105-8579

1

Bolt, Blade 7/16-20 X 1 5/8

Part# 105-8579 (Superseded to 125-2466)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.29

92-1599-03

2

Stiffener, Blade

Part# 92-1599-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $53.08

42-1000-03

3

Blade

Part# 42-1000-03 (Superseded to 107-4276-03)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $21.92

52-2170-03

4

Retainer, Blade

Part# 52-2170-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $50.78

103-3795

5

Spacer, Blade Retainer

Part# 103-3795

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.02

7-0036

6

Key, Machine 3/16 Sq X 1 5/8

Part# 7-0036

Note: For push units.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.47

5-1077

Key, Machine 3/16 Sq X 1

Part# 5-1077

Note: For self-propelled units.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.66

32144-70

7

Screw, Hh 5/16-18 X 3/4

Part# 32144-70

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.54

3254-6

8

Washer, Lock Internal

Part# 3254-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.09

48-2591

9

Protector, Crankshaft

Part# 48-2591

Note: For push units.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $113.11

65-5860

Protector, Crankshaft

Part# 65-5860 (Superseded to 125-8370)

Note: For self-propelled units.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $70.40

46-7910

10

Sheave, Driver

Part# 46-7910

Note: For self-propelled units.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $28.84

107-4058

11

Spacer, Output Shaft

Part# 107-4058

Note: For units with Kawasaki engine.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.64

66-0570-03

12

Bracket, Belt Guide

Part# 66-0570-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.22

3257-17

13

Key, Woodruff 5/32 X 21/32

Part# 3257-17

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.77

56-6180

14

Sheave, Driver

Part# 56-6180

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $35.60

56-6160-03

15

Flywheel, Bbc

Part# 56-6160-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $72.72

42-3190

16

Bolt, Blade 3/8-24 X 2.33

Part# 42-3190

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.84

94-9431

17

Asm, Brake Drum

Part# 94-9431

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $31.16

52-3480

18

Dampner, Vibration

Part# 52-3480

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.50

42-6890

19

Asm, Hub

Part# 42-6890

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $64.63

100-1048

20

Bearing, Ball

Part# 100-1048 (Superseded to 38-7820)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.69

46-5693

21

Shield

Part# 46-5693

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $21.92

62-4280

22

Spacer, Blade

Part# 62-4280 (Superseded to 107-4275)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $17.23

3212-4

23

Screw, Hh 7/16-20 X 1

Part# 3212-4

Note: For units with Kawasaki engine.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.69

91-2255-03

24

Stiffener, Blade

Part# 91-2255-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $53.08

603164

25

Nut, Blade 5/8-18 Nyloc

Part# 603164

Note: For units with Honda engine.

OEM Warranty Repair Part for Exmark

Not available

107-4059

26

Cap, Engine

Part# 107-4059 (Superseded to 1-603610)

Note: For units with Kawasaki engine.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.40

54-9190

27

Nut, Hex 3/8-24 Lock

Part# 54-9190 (Superseded to 127-6852)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.36

32104-107

28

Screw, Hh 5/16-18 X 1 1/2

Part# 32104-107

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.26

3256-23

29

Washer, 5/16 SAE

Part# 3256-23

Note: For units with Kawasaki engine.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.72

3256-23

Washer, 5/16 SAE

Part# 3256-23

Note: For units with Honda engine.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.72

49-2810

30

Link, Control

Part# 49-2810

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.08

49-7960

31

Bellcrank

Part# 49-7960

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.74

49-7950

32

Sleeve, Bellcrank

Part# 49-7950

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.73

49-2820

33

Lever

Part# 49-2820

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.32

32104-96

34

Screw, Hh 1/4-20 X 1 3/8 Tap

Part# 32104-96

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.28

49-7970

35

Spring, Torsion

Part# 49-7970

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.00

70-1160

36

Washer

Part# 70-1160

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.69

85-6880

37

Spring, Torsion

Part# 85-6880

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.10

84-9130

38

Arm, Idler

Part# 84-9130

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $29.96

100-6486

39

Belt

Part# 100-6486

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.83

46-5650

40

Pulley, Idler

Part# 46-5650 (Superseded to 117-5299)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $33.46

46-5631

41

Hub, Idler Pulley

Part# 46-5631

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.99

322-6

42

Screw, Hh 5/16-18 X 1 1/4

Part# 322-6

Note: For units with Kawasaki engine.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.19

322-6

Screw, Hh 5/16-18 X 1 1/4

Part# 322-6

Note: For units with Honda engine.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.19

3296-47

43

Nut, Nyloc 5/16-18

Part# 3296-47

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.29

32144-70

44

Screw, Hwh 5/16-18 X 3/4 Tf

Part# 32144-70

Note: For units with Kawasaki engine.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.54

32144-70

Screw, Hwh 5/16-18 X 3/4 Tf

Part# 32144-70

Note: For units with Honda engine.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.54

84-9180

45

Asm, Brake Plate

Part# 84-9180 (Superseded to 125-1065)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $17.31

3272-1

46

Pin, Cotter 1/16 X 1/2

Part# 3272-1

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.25

84-9050

47

Pin, Spring

Part# 84-9050

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.02

65-5280

48

Retainer, Spring

Part# 65-5280

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.23

84-9100

49

Spring

Part# 84-9100

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.07

46-7040

50

Screw, Hwh #8-16 X 1 1/2 Tf

Part# 46-7040

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.87

106-0842

51

Guide, Spring

Part# 106-0842

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $11.53

107-4087-03

52

Bracket, Spring

Part# 107-4087-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.31

84-9040

53

Pin, Cable

Part# 84-9040

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.50

68-9780

54

Bearing

Part# 68-9780

Note: Included with deck assembly P/N 100-3288.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $16.86

84-8930

55

Shield, Retainer

Part# 84-8930

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.09

3296-39

56

Nut, Nyloc 3/8-16

Part# 3296-39

Note: For units with Kawasaki engine.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.11

3296-39

Nut, Nyloc 3/8-16

Part# 3296-39

Note: For units with Honda engine.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.11

323-6

57

Screw, Hh 3/8-16 X 1

Part# 323-6

Note: For units with Kawasaki engine.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.97

323-6

Screw, Hh 3/8-16 X 1

Part# 323-6

Note: For units with Honda engine.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.97

62-3720

58

Clamp, Cable

Part# 62-3720

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.39

3296-58

59

Nut, Nyloc 5/16-18

Part# 3296-58

Note: For units with Honda engine.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.74

100-3288

Deck Assembly

Part# 100-3288

OEM Warranty Repair Part for Exmark

Not available
