M216KASPC - Exmark 21" Metro Self-Propelled Walk-Behind Mower, 6hp Kawasaki (SN: 510000 - 599999) (2005) Handle Assembly For Push Units Parts Diagram

21" Metro Self-Propelled Walk-Behind Mower, 6hp Kawasaki

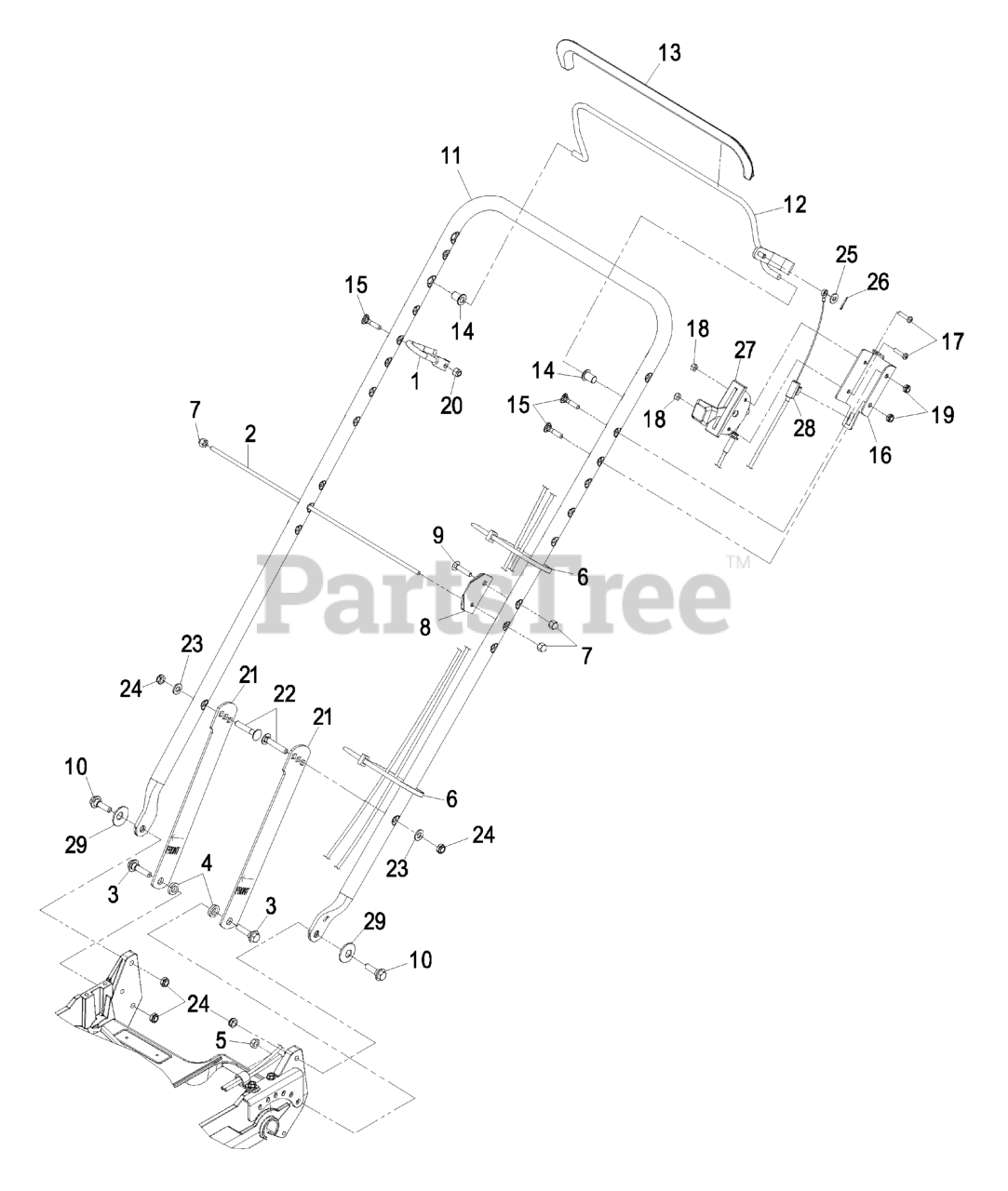

Handle Assembly For Push Units Parts Diagram

  • Title

1

Exmark 46-8081

GUIDE-ROPE

$25.99

$

Usually ships in 3-6 days

0

2

Exmark 103-7681

ROD,BAG SUPPORT

$

$

Not available

3

Exmark 27-7210

SCREW-SHOULDER

$8.49

$

In Stock, Qty 11

0

4

Exmark 3-3287

SPACER

$5.49

$

In Stock, Qty 13

0

5

Exmark 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

6

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 7

0

7

Exmark 32111-7

NUT-CAP

Note: For units with Kawasaki engine.

$8.49

$

In Stock, only 2 left!

0

Exmark 32111-7

NUT-CAP

Note: For units with Honda engine.

$8.49

$

In Stock, only 2 left!

0

8

Exmark 104-1326

DISCONTINUED (EXMARK)
(Superseded to 104-8586)

Note: For units with Honda engine.

$

$

Not available

9

Exmark 3229-3

SCREW-CARR

Note: For units with Honda engine.

$5.49

$

Usually ships in 3-6 days

0

10

Exmark 27-7211

SCREW-SHOULDER
(Superseded to 27-7211)

$5.49

$

In Stock, Qty 7

0

11

Exmark 103-7924

WLD,BAIL DEADMAN (PLATED)

$

$

Not available

12

Exmark 103-5139-03

103-7924
(Superseded to 103-7924)

$

$

Not available

13

Exmark 103-5137

PAD,DEADMAN

$

$

Not available

14

Exmark 103-5149

109-2713
(Superseded to 109-2713)

$6.99

$

In Stock, Qty 7

0

15

Exmark 92-2268

SCREW-HANDLE

$3.49

$

In Stock, only 1 left!

0

16

Exmark 103-5140-03

BRACKET,THROTTLE

$

$

Not available

17

Exmark 3250-27

SCREW-PPH

$0.99

$

In Stock, only 1 left!

0

18

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

19

Exmark 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

21

Exmark 103-4523-03

DISCONTINUED

$

$

Not available

22

Exmark 3230-4

BOLT-CARR

$4.49

$

In Stock, Qty 10

0

23

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

24

Exmark 3296-72

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

25

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Exmark 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 15

0

27

Exmark 103-4518

CABLE,THROTTLE KAWASAKI

Note: For units with Kawasaki engine.

$75.99

$

In Stock, only 2 left!

0

Exmark 103-5141

109-3499
(Superseded to 109-3499)

Note: For units with Honda engine.

$

$

Not available

28

Exmark 103-4519

CABLE,BRAKE KAWASAKI

Note: For units with Kawasaki engine.

$47.99

$

In Stock, only 3 left!

0

Exmark 103-5152

CABLE,BRAKE HONDA

Note: For units with Honda engine.

$

$

Not available

29

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0
