M266KASPC - Exmark 26" Metro Self-Propelled Walk-Behind Mower, 6hp Kawasaki (SN: 510000 - 599999) (2005) Discharge Door And Bag Assembly Parts Diagram

26" Metro Self-Propelled Walk-Behind Mower, 6hp Kawasaki

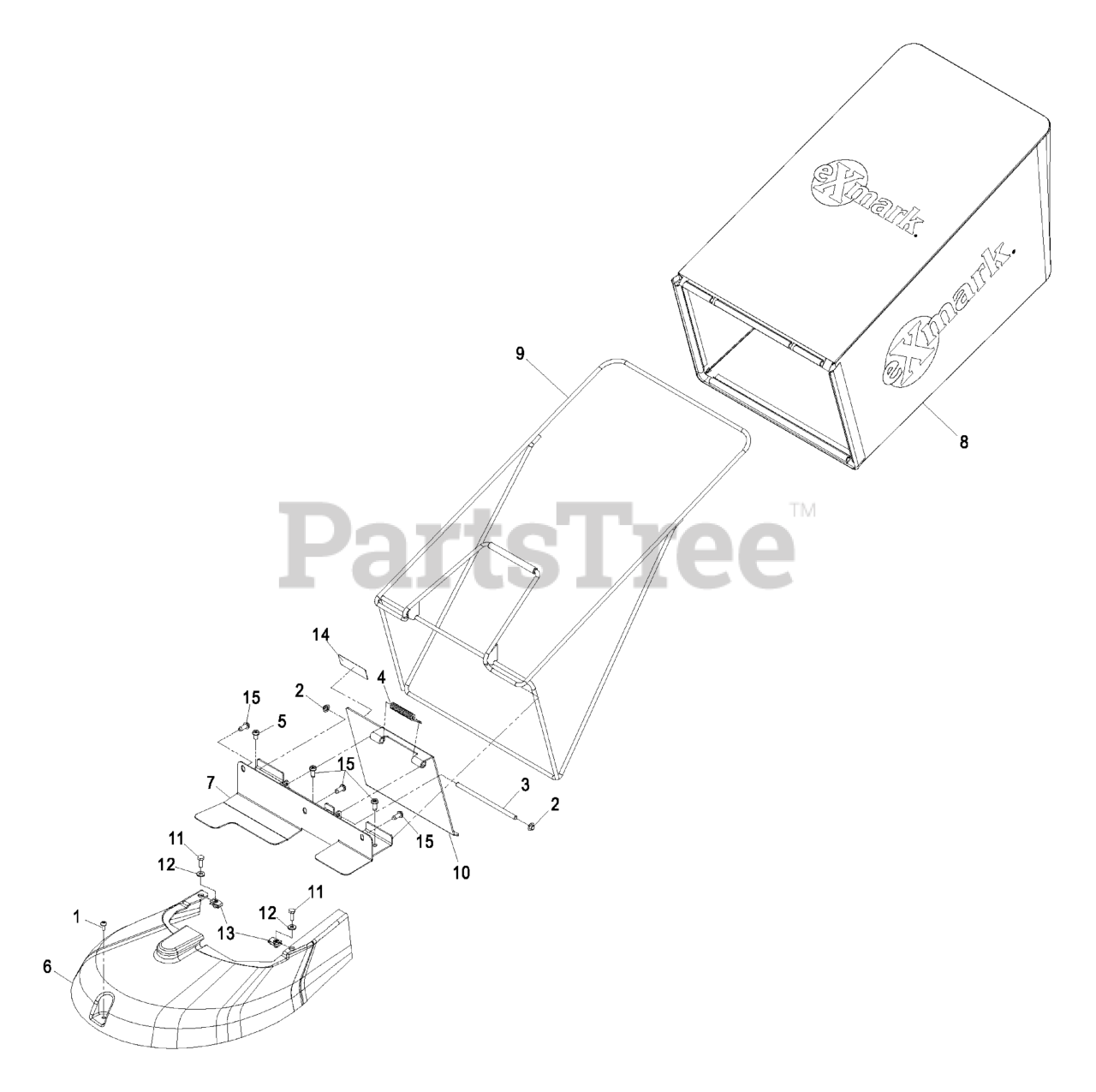

Discharge Door And Bag Assembly Parts Diagram

  • Title

1

Exmark 103-6159

SCREW-TP

$6.99

$

Usually ships in 3-6 days

0

2

Exmark 32112-11

NUT-PUSH
(Superseded to 32112-11)

$1.49

$

In Stock, Qty 20+

0

3

Exmark 103-6106

109-2453
(Superseded to 109-2453)

$

$

Not available

4

Exmark 99-5293

SPRING-TORSION

$11.99

$

In Stock, Qty 20+

0

5

Exmark 103-6118

DISCONTINUED

$

$

Not available

6

Exmark 103-6155

109-2645
(Superseded to 109-2645)

$47.99

$

Usually ships in 3-6 days

0

7

Exmark 103-6160-03

WLD,TANK/BAG MOUNT BRACKE

$

$

Not available

8

Exmark 103-6433

109-2644
(Superseded to 109-2644)

$240.99

$

In Stock, only 3 left!

0

9

Exmark 103-6603-03

WLD,BAG FRAME

$

$

Not available

10

Exmark 109-0072

ASM,DOOR W/DECALS METRO 2

$

$

Not available

11

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Exmark 10706-9

Nut, Retainer-Panel 1/4-20

$2.99

$

In Stock, Qty 20+

0

14

Exmark 1-213240

104-8585
(Superseded to 104-8585)

$

$

Not available

15

Exmark 613381

SCREW-BHTF

$5.49

$

In Stock, only 4 left!

0
