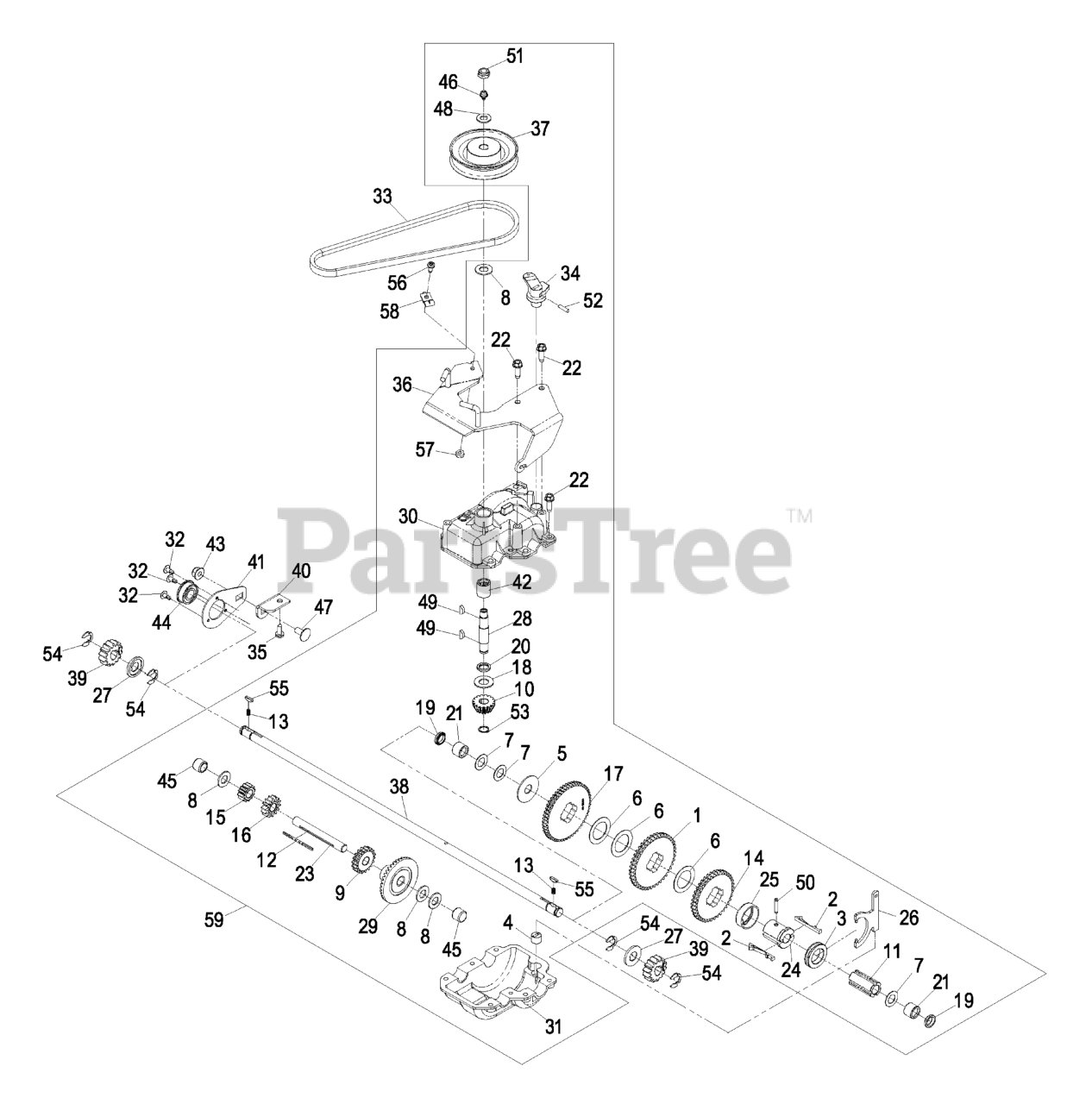

M266KASPC - Exmark 26" Metro Self-Propelled Walk-Behind Mower, 6HP Kawasaki (SN: 510000 - 599999) (2005) > Parts Diagrams (7) > Gear Case Assembly

  • Title
29-9271

1

Gear, 42t

Part# 29-9271

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $60.01

29-9330

2

Key, Shift

Part# 29-9330

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $19.45

29-9340

3

Collar, Shift

Part# 29-9340

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $27.54

29-9570

4

Bushing, Yoke

Part# 29-9570

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.02

29-9690

5

Washer

Part# 29-9690

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.54

36-4770

6

Washer

Part# 36-4770

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.69

36-4780

7

Washer

Part# 36-4780

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.98

36-4792

8

Washer, Thrust

Part# 36-4792

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.85

39-6650

9

Gear, 18t

Part# 39-6650

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.22

39-6660

10

Pinion, Bevel 16t

Part# 39-6660

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $27.30

39-6720

11

Sleeve

Part# 39-6720

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $11.07

39-7842

12

Key, Machine 3/32 Sq X 2 1/8

Part# 39-7842

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.74

39-9650

13

Spring

Part# 39-9650

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.12

42-4740

14

Gear, 38t

Part# 42-4740

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $56.55

46-3540

15

Gear, 12t

Part# 46-3540

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.12

46-3550

16

Gear, 14t

Part# 46-3550

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $14.99

46-3560

17

Gear, 52t

Part# 46-3560

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $53.08

47-2910

18

Washer, Thrust

Part# 47-2910

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.22

47-6730

19

Seal, Oil

Part# 47-6730

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.07

47-7260

20

Seal

Part# 47-7260

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.66

48-2060

21

Bearing, Roller

Part# 48-2060 (Superseded to 117-3500)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.91

49-2040

22

Screw, Hwh 1/4-20 X 3/4 Tf

Part# 49-2040

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.52

53-7950

23

Shaft, Intermediate

Part# 53-7950

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $36.74

55-8010

24

Sleeve, Gear

Part# 55-8010

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $13.84

55-8020

25

Retainer, Key

Part# 55-8020

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.00

60-8870

26

Yoke, Shift

Part# 60-8870

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $17.20

62-3830

27

Washer

Part# 62-3830

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.99

13-5149

28

Asm, Input Shaft W/Zerk

Part# 13-5149

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $49.63

74-1760

29

Gear, Bevel 40t

Part# 74-1760

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $27.29

109-0170

30

Asm, Gear Case W/Brg

Part# 109-0170

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $57.13

74-1920

31

Gear Case, Lower

Part# 74-1920 (Superseded to 119-7863)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $33.46

92-9665

32

Screw, Truss Hd #10-12 X 1/2 Tf

Part# 92-9665

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.14

103-6114

33

Belt

Part# 103-6114

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $28.76

103-6138

34

Lever, Shift

Part# 103-6138

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.82

103-6159

35

Screw, Tph 1/4-20 X 1/2

Part# 103-6159

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.76

103-6166

36

Wld, Belt Guide

Part# 103-6166 (Superseded to 116-0339-03)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $24.19

103-6429

37

Sheave

Part# 103-6429

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $46.16

103-6435

38

Shaft, Axle

Part# 103-6435

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $81.95

103-6436

39

Gear, 14t

Part# 103-6436

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.29

103-6439

40

Bracket, Bearing

Part# 103-6439 (Superseded to 103-8237-03)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $10.38

103-6458

41

Plate, Bearing

Part# 103-6458 (Superseded to 109-6612)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $11.20

103-9773

42

Bearing, Roller

Part# 103-9773

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $16.98

104-8300

43

Nut, Nyloc 5/8-18 Flg

Part# 104-8300

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.82

251-180

44

Bearing

Part# 251-180 (Superseded to 116-7257)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.69

252-103

45

Bearing, Needle

Part# 252-103

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $17.20

302-63

46

Zerk

Part# 302-63

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.14

3230-18

47

Bolt, Carriage 5/16-18 X 5/8

Part# 3230-18

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.10

3256-45

48

Washer, Flat

Part# 3256-45

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.43

3257-1

49

Key, Woodruff 1/8 X 1/2

Part# 3257-1

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.38

3285-19

50

Pin, Groove

Part# 3285-19

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.35

3296-5

51

Nut, Nyloc 3/8-24 Thin

Part# 3296-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.71

32121-99

52

Pin, Coil

Part# 32121-99

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.84

32151-57

53

Ring, Retaining

Part# 32151-57

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.50

32151-68

54

E-Ring

Part# 32151-68

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.99

612066

55

Key

Part# 612066

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.83

105-6849

56

Screw, Tph #10-24 X 1/2 Tf

Part# 105-6849

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.64

3296-2

57

Nut, Nyloc #10-24

Part# 3296-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.29

613385

58

Clamp, Cable

Part# 613385

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.83

109-0639

59

Asm, Gearbox

Part# 109-0639 (Superseded to 109-3551)

Note: Gearbox assembly contains all items on page except items, #12 or #55.
