M32-8.5B-5 - Exmark 32" Metro Walk-Behind Mower, 8.5hp Briggs & Stratton (SN: 115000 - 129999) (1996) 52" Mower Deck (Continued) Parts Diagram

32" Metro Walk-Behind Mower, 8.5hp Briggs & Stratton

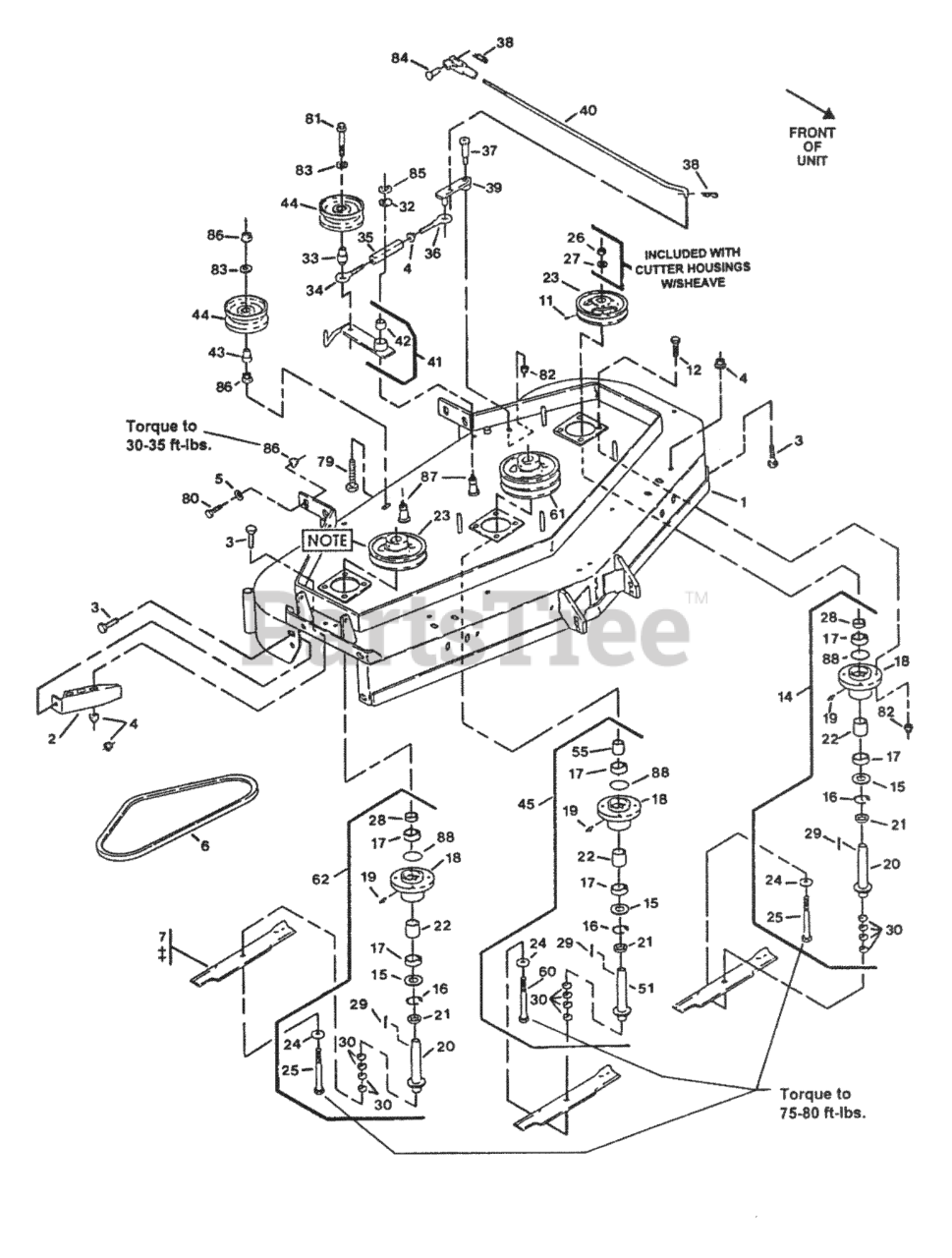

52" Mower Deck (Continued) Parts Diagram

  • Title

1

Exmark 1-402060

1-402101
(Superseded to 1-402101)

$

$

Not available

2

Exmark 1-402057-01

WLD, DISCHARGE BAFFLE

$

$

Not available

3

Exmark 1-800270

322-2
(Superseded to 322-2)

$2.99

$

In Stock, Qty 20+

0

4

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

5

Exmark 1-303327

98-5975
(Superseded to 98-5975)

$3.99

$

In Stock, Qty 20+

0

6

Exmark 1-403105

DISCONTINUED

$

$

Not available

7

Exmark 1-303527

103-1578-S
(Superseded to 103-1578-S)

$39.99

$

In Stock, Qty 13

0

Exmark 1-303439

103-6580-S
(Superseded to 103-6580-S)

$36.99

$

In Stock, Qty 13

0

Exmark 1-303495

103-6582-S
(Superseded to 103-6582-S)

Note: Requires installation of Mulching Kit (Part No. MK52)

$34.99

$

In Stock, Qty 20+

0

Exmark 1-303283

103-6584-S
(Superseded to 103-6584-S)

$34.99

$

In Stock, Qty 20+

0

11

Exmark 1-803310

SCREW-SET

$2.99

$

In Stock, only 2 left!

0

Exmark 1-840022

PRO-LOCK,NUT TYPE

Note: Not Illustrated. (Reference to item 11, use Pro-lock (Nut Type) on threads of setscrews (Part No. 803310))

$21.99

$

Usually ships in 3-6 days

0

12

Exmark 1-800273

322-5
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

14

Exmark 1-322166

ASM,HOUSING CUTTER

$

$

Not available

15

Exmark 1-323408

SEAL,DUST

$

$

Not available

16

Exmark 1-808506

RING,SNAP WLDS N5000-244

$7.49

$

In Stock, Qty 5

0

17

Exmark 1-303543

BEARING,HD SPINDLE

$45.99

$

In Stock, Qty 20+

0

18

Exmark 1-323315

HOUSING,CUTTER

$117.99

$

In Stock, only 2 left!

0

19

Exmark 1-811001

302-52
(Superseded to 302-52)

$6.99

$

In Stock, Qty 20+

0

20

Exmark 1-322164

103-1871
(Superseded to 103-1871)

$129.99

$

Usually ships in 3-6 days

0

21

Exmark 1-323399

SPACER,BEARING &SPINDLE

$9.99

$

Usually ships in 3-6 days

0

22

Exmark 1-323400

SPACER,BRG/BRG

$9.99

$

In Stock, only 2 left!

0

23

Exmark 1-303535

1-403183
(Superseded to 1-403183)

Note: Use retaining type loctite (P/N 840023) on blade drive sheaves. Pulley (Part No. 303535) on the right hand side (from operators position) is turned upside down with the long part of the hub facing upward.

$74.99

$

In Stock, Qty 6

0

24

Exmark 1-513208

WASHER-SPRING

$9.49

$

In Stock, Qty 20+

0

25

Exmark 1-800861

SCREW-CAP, HH

$20.99

$

In Stock, Qty 15

0

26

Exmark 1-804510

3219-6
(Superseded to 3219-6)

$4.49

$

In Stock, Qty 20+

0

27

Exmark 1-323339

WASHER-RETAINER, SHEAVE

$5.49

$

In Stock, Qty 20+

0

28

Exmark 1-323402

DISCONTINUED

$

$

Not available

29

Exmark 1-807267

KEY

$2.99

$

In Stock, Qty 20+

0

30

Exmark 1-303164

1-323539
(Superseded to 1-323539)

$2.49

$

In Stock, Qty 20+

0

Exmark 1-303542

O-RING

$3.49

$

In Stock, Qty 20+

0

31

Exmark 1-303105

YOKE-ADJUSTABLE

$13.99

$

In Stock, only 2 left!

0

32

Exmark 1-303352

WASHER-SPINDLE

$2.99

$

In Stock, Qty 13

0

33

Exmark 1-303434

BUSHING-ENGAGEMENT

$15.99

$

In Stock, Qty 20+

0

34

Exmark 1-303348

EYEBOLT-THREAD, LH

$6.99

$

In Stock, Qty 20+

0

35

Exmark 1-303236

BODY-TURNBUCKLE

$22.99

$

In Stock, Qty 15

0

36

Exmark 1-303238

EYEBOLT-THREAD, RH

$6.99

$

In Stock, Qty 20+

0

37

Exmark 1-809011

BOLT,SHLDR KSKH

$

$

Not available

38

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

39

Exmark 1-302198

1-321021
(Superseded to 1-321021)

$95.99

$

Usually ships in 3-6 days

0

40

Exmark 1-323305

DISCONTINUED (EXMARK)

$

$

Not available

41

Exmark 1-302129

1-402109
(Superseded to 1-402109)

$132.99

$

In Stock, only 2 left!

0

42

Exmark 1-303144

BEARING,POWDERED METAL

$5.49

$

In Stock, only 2 left!

0

43

Exmark 1-403074

1-543879
(Superseded to 1-543879)

$16.99

$

In Stock, only 1 left!

0

44

Exmark 1-603843

132-4718
(Superseded to 132-4718)

$35.99

$

In Stock, Qty 20+

0

45

Exmark 1-402077

DISCONTINUED

$

$

Not available

Exmark 1-323408

SEAL,DUST

$

$

Not available

Exmark 1-808506

RING,SNAP WLDS N5000-244

$7.49

$

In Stock, Qty 5

0

Exmark 1-303543

BEARING,HD SPINDLE

$45.99

$

In Stock, Qty 20+

0

Exmark 1-323315

HOUSING,CUTTER

$117.99

$

In Stock, only 2 left!

0

Exmark 1-811001

302-52
(Superseded to 302-52)

$6.99

$

In Stock, Qty 20+

0

51

Exmark 1-402075

103-1869
(Superseded to 103-1869)

$

$

Not available

Exmark 1-323399

SPACER,BEARING &SPINDLE

$9.99

$

Usually ships in 3-6 days

0

Exmark 1-323400

SPACER,BRG/BRG

$9.99

$

In Stock, only 2 left!

0

54

Exmark 1-323339

WASHER-RETAINER, SHEAVE

Note: Not Illustrated (Reference to item 11, use Pro-Lock (Nut type) on threads of setscrews (Part No. 803310)

$5.49

$

In Stock, Qty 20+

0

55

Exmark 1-323404

SPACER,BEARING/SHEAVE

$24.99

$

Usually ships in 3-6 days

0

Exmark 1-807267

KEY

$2.99

$

In Stock, Qty 20+

0

Exmark 1-303164

1-323539
(Superseded to 1-323539)

$2.49

$

In Stock, Qty 20+

0

58

Exmark 1-804510

3219-6
(Superseded to 3219-6)

$4.49

$

In Stock, Qty 20+

0

Exmark 1-513208

WASHER-SPRING

$9.49

$

In Stock, Qty 20+

0

60

Exmark 1-800862

SCRW,CAP HH 5/8-18X8.5

$29.99

$

In Stock, Qty 15

0

61

Exmark 1-403133

1-403167
(Superseded to 1-403167)

Note: Use retaining type loctite (P/N 840023) on blade drive sheaves.

$

$

Not available

Exmark 1-303542

O-RING

$3.49

$

In Stock, Qty 20+

0

62

Exmark 1-322167

1-322166
(Superseded to 1-322166)

$

$

Not available

Exmark 1-323408

SEAL,DUST

$

$

Not available

Exmark 1-808506

RING,SNAP WLDS N5000-244

$7.49

$

In Stock, Qty 5

0

Exmark 1-303543

BEARING,HD SPINDLE

$45.99

$

In Stock, Qty 20+

0

Exmark 1-323315

HOUSING,CUTTER

$117.99

$

In Stock, only 2 left!

0

Exmark 1-811001

302-52
(Superseded to 302-52)

$6.99

$

In Stock, Qty 20+

0

Exmark 1-322164

103-1871
(Superseded to 103-1871)

$129.99

$

Usually ships in 3-6 days

0

Exmark 1-323399

SPACER,BEARING &SPINDLE

$9.99

$

Usually ships in 3-6 days

0

Exmark 1-323400

SPACER,BRG/BRG

$9.99

$

In Stock, only 2 left!

0

Exmark 1-303535

1-403183
(Superseded to 1-403183)

$74.99

$

In Stock, Qty 6

0

Exmark 1-513208

WASHER-SPRING

$9.49

$

In Stock, Qty 20+

0

Exmark 1-800861

SCREW-CAP, HH

$20.99

$

In Stock, Qty 15

0

74

Exmark 1-804510

3219-6
(Superseded to 3219-6)

Note: Not Illustrated (Reference to item 11, use Pro-lock (Nut type) on threads of setscrews (Part No. 803310)

$4.49

$

In Stock, Qty 20+

0

75

Exmark 1-323339

WASHER-RETAINER, SHEAVE

$5.49

$

In Stock, Qty 20+

0

Exmark 1-323402

DISCONTINUED

$

$

Not available

Exmark 1-807267

KEY

$2.99

$

In Stock, Qty 20+

0

Exmark 1-303164

1-323539
(Superseded to 1-323539)

$2.49

$

In Stock, Qty 20+

0

Exmark 1-303542

O-RING

$3.49

$

In Stock, Qty 20+

0

79

Exmark 1-800029

BOLT,TAP HH3/8-16X2-1/4

$

$

Not available

80

Exmark 1-800293

323-7
(Superseded to 323-7)

$3.49

$

In Stock, Qty 20+

0

81

Exmark 1-803003

DISCONTINUED

$

$

Not available

82

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

83

Exmark 1-805259

3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

84

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, Qty 20+

0

85

Exmark 1-808505

32151-103
(Superseded to 32151-103)

$3.49

$

In Stock, Qty 20+

0

86

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

87

Exmark 1-811006

302-19
(Superseded to 302-19)

$2.99

$

In Stock, Qty 20+

0

88

Exmark 1-303542

O-RING

$3.49

$

In Stock, Qty 20+

0
