M3211B - Exmark 32" Metro Walk-Behind Mower, 11hp Briggs & Stratton (SN: 220000 - 259999) (2000) 48" Mower Deck Parts Diagram

32" Metro Walk-Behind Mower, 11hp Briggs & Stratton

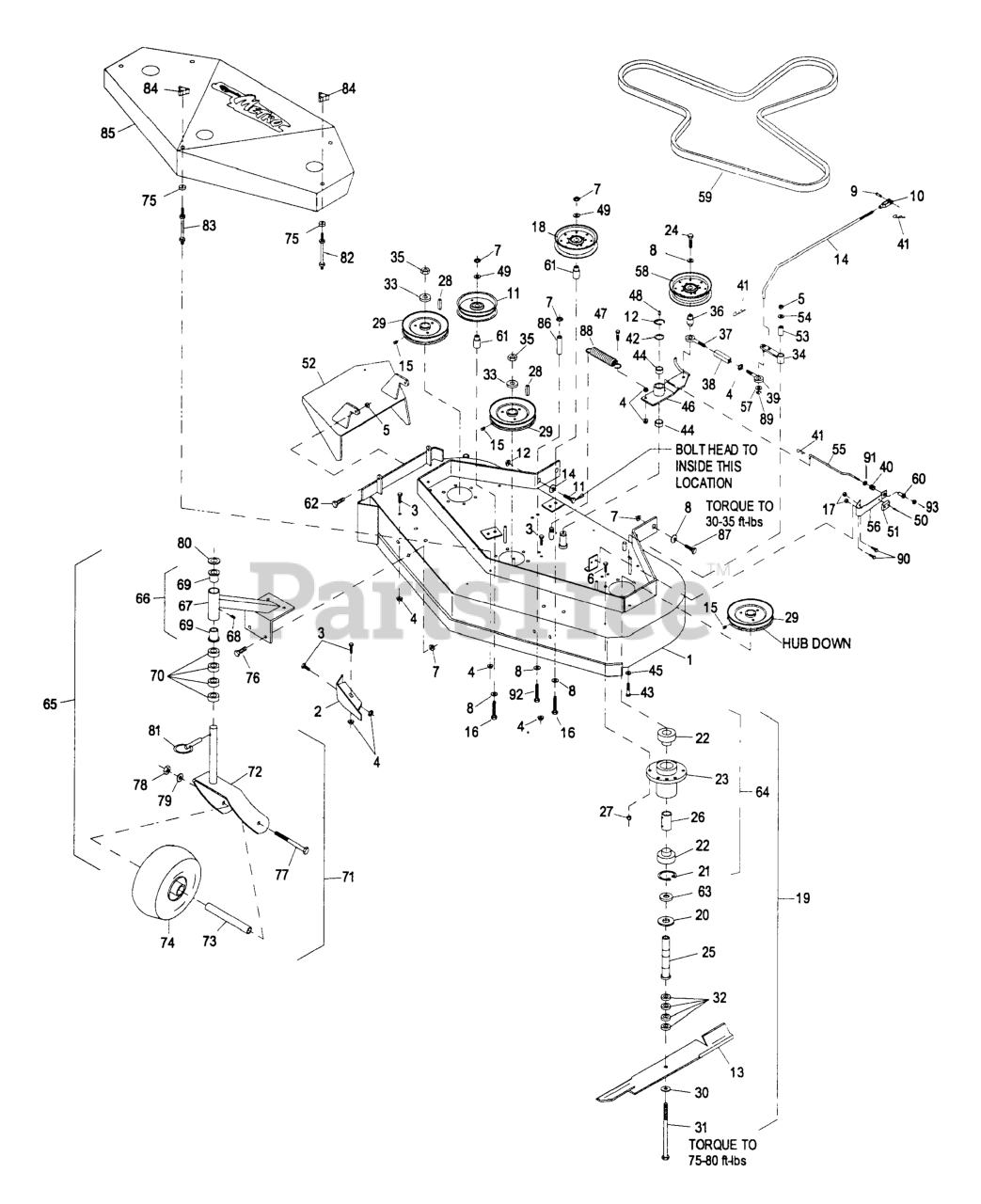

48" Mower Deck Parts Diagram

  • Title

1

Exmark 1-404257

DECK-SERVICE, 48

Note: (Deck weldmt DOES include welded in flow control baffles.)

$2899.99

$

Usually ships in 3-6 days

0

Exmark 1-402108

1-404257
(Superseded to 1-404257)

Note: (Deck weldmt DOES include welded in flow control baffles.)

$2899.99

$

Usually ships in 3-6 days

0

2

Exmark 1-402107-01

BAFFLE-DOGLEG

$

$

Not available

3

Exmark 1-800270

322-2
(Superseded to 322-2)

$2.99

$

In Stock, only 4 left!

0

4

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

5

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

6

Exmark 1-800293

323-7
(Superseded to 323-7)

$3.49

$

In Stock, Qty 20+

0

7

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

8

Exmark 1-303327

98-5975
(Superseded to 98-5975)

$3.99

$

In Stock, Qty 20+

0

9

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

0

10

Exmark 1-303105

YOKE-ADJUSTABLE

$13.99

$

In Stock, only 4 left!

0

11

Exmark 1-613098

PULLEY-IDLER

$50.99

$

In Stock, Qty 7

0

12

Exmark 1-808505

32151-103
(Superseded to 32151-103)

$3.49

$

In Stock, Qty 20+

0

13

Exmark 1-323515

103-6583-S
(Superseded to 103-6583-S)

$34.99

$

In Stock, Qty 9

0

Exmark 1-413438

103-1577-S
(Superseded to 103-1577-S)

$44.99

$

In Stock, only 3 left!

0

Exmark 1-403148

103-6581-S
(Superseded to 103-6581-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK483.

$36.99

$

In Stock, Qty 18

0

Exmark 1-403149

103-6738-S
(Superseded to 103-6738-S)

Note: (Optional)

$37.99

$

In Stock, only 4 left!

0

14

Exmark 1-323303

ARM-ASSIST, LINKAGE

$27.99

$

In Stock, only 2 left!

0

15

Exmark 1-803310

SCREW-SET

Note: (Use Pro-lock Nut Type [P/N 840022 .5ml tube] on the setscrews)

$2.99

$

Usually ships in 3-6 days

0

16

Exmark 1-800299

323-13
(Superseded to 323-13)

$3.99

$

In Stock, Qty 20+

0

17

Exmark 1-804255

3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

18

Exmark 1-403186

126-9187
(Superseded to 126-9187)

$63.99

$

In Stock, Qty 5

0

19

Exmark 1-324265

HOUSING,CUTTER COMPLETE(S

Note: (Includes sheave, washer, and nut and does not include blade.)

$

$

Not available

20

Exmark 1-633573

GUARD-BEARING, BOTTOM

$5.49

$

In Stock, only 2 left!

0

21

Exmark 1-808502

32120-8
(Superseded to 32120-8)

$2.99

$

In Stock, only 2 left!

0

22

Exmark 1-513016

BEARING

$90.99

$

In Stock, Qty 20+

0

23

Exmark 1-323532

103-8280
(Superseded to 103-8280)

$290.99

$

In Stock, only 2 left!

0

24

Exmark 1-800296

323-10
(Superseded to 323-10)

$1.49

$

In Stock, Qty 9

0

25

Exmark 1-323529

TUBE-SPINDLE, SHORT

$94.99

$

In Stock, only 3 left!

0

26

Exmark 1-323528

SPACER-BEARING

$9.99

$

In Stock, Qty 7

0

27

Exmark 1-804257

3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

28

Exmark 1-807267

KEY

$2.99

$

In Stock, Qty 16

0

29

Exmark 1-403183

SHEAVE

Note: (Use antisieze on bore of sheaves.)

$74.99

$

In Stock, only 2 left!

0

30

Exmark 1-513208

WASHER-SPRING

$9.99

$

In Stock, Qty 8

0

31

Exmark 1-800861

SCREW-CAP, HH

$20.99

$

In Stock, Qty 10

0

32

Exmark 1-323539

SPACER

$2.49

$

In Stock, Qty 20+

0

33

Exmark 1-323339

WASHER-RETAINER, SHEAVE

$5.49

$

In Stock, only 3 left!

0

34

Exmark 1-322230

ARM-ASSIST

$48.99

$

Usually ships in 3-6 days

0

35

Exmark 1-804510

3219-6
(Superseded to 3219-6)

$4.49

$

In Stock, Qty 20+

0

36

Exmark 1-303434

BUSHING-ENGAGEMENT

$15.99

$

In Stock, Qty 20+

0

37

Exmark 1-303348

EYEBOLT-THREAD, LH

$6.99

$

In Stock, Qty 20+

0

38

Exmark 1-303236

BODY-TURNBUCKLE

$22.99

$

In Stock, Qty 6

0

39

Exmark 1-303238

EYEBOLT-THREAD, RH

$6.99

$

In Stock, Qty 14

0

40

Exmark 1-323747

SPRING-COMPRESSION

$3.49

$

In Stock, only 2 left!

0

41

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

42

Exmark 1-303352

WASHER-SPINDLE

$2.99

$

In Stock, Qty 9

0

43

Exmark 1-800277

322-10
(Superseded to 322-10)

$0.99

$

In Stock, Qty 20+

0

44

Exmark 1-323729

SLEEVE-BEARING

$5.49

$

In Stock, Qty 20+

0

45

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 8

0

46

Exmark 1-402109

ENGAGE ARM ASM

$132.99

$

In Stock, only 2 left!

0

47

Exmark 1-800274

322-6
(Superseded to 322-6)

$4.49

$

In Stock, Qty 17

0

48

Exmark 1-811006

302-19
(Superseded to 302-19)

$2.99

$

In Stock, Qty 20+

0

49

Exmark 1-805259

3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

50

Exmark 1-803012

9237964
(Superseded to 9237964)

$1.49

$

In Stock, Qty 8

0

51

Exmark 1-323709

PAD-BRAKE

$30.99

$

Usually ships in 3-6 days

0

52

Exmark 1-402106

1-402106-01
(Superseded to 1-402106-01)

$191.99

$

In Stock, only 2 left!

0

53

Exmark 1-403179

TUBE-PIVOT

$19.99

$

In Stock, only 2 left!

0

54

Exmark 1-805258

3256-3
(Superseded to 3256-3)

$0.99

$

In Stock, Qty 15

0

55

Exmark 1-323714

ROD-BRAKE

$30.99

$

In Stock, only 2 left!

0

56

Exmark 1-324372

PAD AND SPRING ASM

$75.99

$

Usually ships in 3-6 days

0

57

Exmark 1-805257

3256-23
(Superseded to 3256-23)

$2.49

$

In Stock, Qty 9

0

58

Exmark 1-603843

132-4718
(Superseded to 132-4718)

$35.99

$

In Stock, Qty 8

0

59

Exmark 1-403174

BELT,BLADE 48
(Superseded to 1-403174-SL)

$100.99

$

In Stock, Qty 20+

0

60

Exmark 1-323746

SPACER-FLANGED

$1.49

$

In Stock, Qty 13

0

61

Exmark 1-403184

1-413113
(Superseded to 1-413113)

$6.49

$

In Stock, Qty 20+

0

62

Exmark 1-800273

322-5
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

63

Exmark 1-323533

SPACER-PULLEY/BEARING

$5.49

$

In Stock, Qty 5

0

64

Exmark 1-634619

103-8280
(Superseded to 103-8280)

$290.99

$

In Stock, only 2 left!

0

65

Exmark 1-322153

CASTER/MOUNT ASM

$

$

Not available

66

Exmark 1-302203

SUPPORT ASM

$318.99

$

Usually ships in 3-6 days

0

67

Exmark 1-302194

1-302203
(Superseded to 1-302203)

$318.99

$

Usually ships in 3-6 days

0

68

Exmark 1-811001

302-52
(Superseded to 302-52)

$6.99

$

In Stock, Qty 19

0

69

Exmark 1-303514

BEARING-FLANGED

$13.99

$

In Stock, Qty 20+

0

70

Exmark 1-303314

SPACER-CASTER

$6.99

$

In Stock, Qty 20+

0

71

Exmark 1-322154

103-1236
(Superseded to 103-1236)

$226.99

$

Usually ships in 3-6 days

0

72

Exmark 1-322145-01

116-7942-01
(Superseded to 116-7942-01)

$104.99

$

In Stock, only 2 left!

0

73

Exmark 1-513547

SPACER

$13.99

$

In Stock, Qty 20+

0

74

Exmark 1-513648

103-2171
(Superseded to 103-2171)

$137.99

$

In Stock, only 3 left!

0

Exmark 1-513807

103-2171
(Superseded to 103-2171)

$137.99

$

In Stock, only 3 left!

0

Exmark 1-513808

TIRE

$54.99

$

In Stock, only 2 left!

0

Exmark 1-513809

BEARING

$38.99

$

In Stock, Qty 6

0

Exmark 1-513810

BUSHING

$6.49

$

In Stock, Qty 20+

0

75

Exmark 1-323417

WASHER

$3.49

$

In Stock, Qty 20+

0

76

Exmark 1-800290

323-4
(Superseded to 323-4)

$4.49

$

In Stock, Qty 14

0

77

Exmark 1-800334

325-20
(Superseded to 325-20)

$8.49

$

In Stock, Qty 20+

0

78

Exmark 1-804509

3217-9
(Superseded to 3217-9)

$0.99

$

In Stock, Qty 20+

0

79

Exmark 1-805008

3253-7
(Superseded to 3253-7)

$1.49

$

In Stock, Qty 11

0

80

Exmark 1-513338

WASHER-FLAT

$4.49

$

In Stock, Qty 20+

0

81

Exmark 1-809020

PIN

$12.99

$

In Stock, only 2 left!

0

82

Exmark 1-303537

STUD-SHIELD, BELT (SHORT)

$6.99

$

In Stock, only 2 left!

0

83

Exmark 1-303536

STUD-SHIELD, BELT (LONG)

$8.49

$

In Stock, Qty 20+

0

84

Exmark 1-323385

KNOB-3 PRONG

$5.99

$

In Stock, Qty 20+

0

85

Exmark 1-404238

116-2707
(Superseded to 116-2707)

$597.99

$

In Stock, only 1 left!

0

Exmark 1-402100

116-2707
(Superseded to 116-2707)

$597.99

$

In Stock, only 1 left!

0

86

Exmark 1-403188

SPACER

$15.99

$

Usually ships in 3-6 days

0

87

Exmark 1-800294

323-8
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

88

Exmark 1-323071

SPRING-EXTENSION

$17.99

$

In Stock, Qty 20+

0

89

Exmark 1-808512

32120-35
(Superseded to 32120-35)

$4.49

$

In Stock, only 3 left!

0

90

Exmark 1-800252

321-4
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

91

Exmark 1-323748

RING-PUSH ON

$1.99

$

In Stock, Qty 7

0

92

Exmark 1-800304

323-20
(Superseded to 323-20)

$3.99

$

In Stock, Qty 11

0

93

Exmark 1-329656

DISCONTINUED (EXMARK)

$

$

Not available

Exmark 1-850337

PAINT,SPRAY RED

$36.99

$

In Stock, Qty 10

0

Exmark 1-840022

PRO-LOCK,NUT TYPE

$21.99

$

In Stock, only 1 left!

0

Exmark MK483

Mulch Kit

$

$

Currently unavailable
