M3213KA - Exmark 32" Metro Walk-Behind Mower, 13hp Kawasaki (SN: 190000 - 219999) (1999) Engine Deck Group Parts Diagram

32" Metro Walk-Behind Mower, 13hp Kawasaki

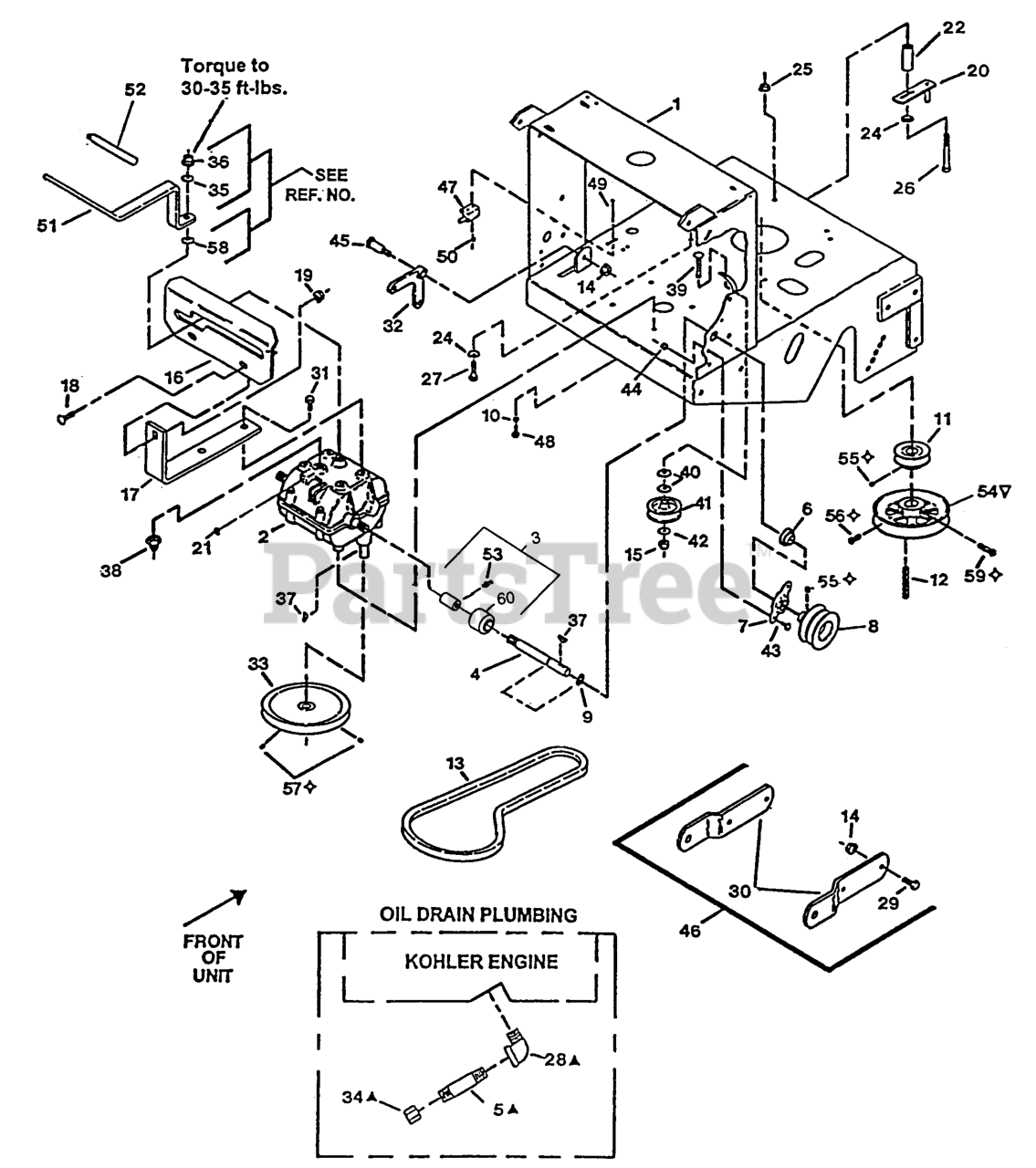

Engine Deck Group Parts Diagram

  • Title

1

Exmark 1-322223

116-6131
(Superseded to 116-6131)

$1045.99

$

Usually ships in 3-6 days

0

2

Exmark 1-323500

137-4105
(Superseded to 137-4105)

$658.99

$

In Stock, only 1 left!

0

3

Exmark 1-324340

ASM,COUPLER/ZERK

$63.99

$

Usually ships in 3-6 days

0

4

Exmark 1-323502

SHAFT-TRANSMISSION

$33.99

$

In Stock, Qty 5

0

5

Exmark 1-323326

NIPPLE

Note: Use Teflon Pipe Sealant (or equivalent) on all pipe threads.

$

$

Not available

6

Exmark 1-323252

BEARING-SHAFT

$20.99

$

In Stock, only 2 left!

0

7

Exmark 1-323254

FLANGE-OUTPUT

$11.99

$

In Stock, only 4 left!

0

8

Exmark 1-323257-03

103-6511
(Superseded to 103-6511)

Note: (36" & 48")

$126.99

$

In Stock, only 2 left!

0

Exmark 1-323363-03

103-6512
(Superseded to 103-6512)

Note: (32")

$126.99

$

Usually ships in 3-6 days

0

9

Exmark 1-808523

32151-62
(Superseded to 32151-62)

$1.99

$

In Stock, Qty 20+

0

10

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 19

0

11

Exmark 1-323256

SHEAVE-TRANSMISSION

Note: Use Pro-lock (Retaining Type) Part No. 840023 (.5ml tube) on transmission pulley on engine.

$98.99

$

Usually ships in 3-6 days

0

12

Exmark 1-807264

KEY,MACH 1/4X1/4X2-5/8

$5.49

$

In Stock, only 2 left!

0

13

Exmark 1-323280

BELT,TRANS DRIVE
(Superseded to 1-323280-SL)

$49.99

$

In Stock, Qty 12

0

14

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

15

Exmark 1-804257

3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

16

Exmark 1-323387-03

103-3498
(Superseded to 103-3498)

$70.99

$

Usually ships in 3-6 days

0

17

Exmark 1-323389-03

BRACKET-PLATE, SHIFT

$33.99

$

Usually ships in 3-6 days

0

18

Exmark 1-807503

3230-1
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

19

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

20

Exmark 1-322110

GUIDE-BELT

Note: (32" and 36")

$13.99

$

In Stock, Qty 7

0

Exmark 1-322110

GUIDE-BELT

Note: (48")

$13.99

$

In Stock, Qty 7

0

21

Exmark 1-323526

BALL,DETENT (SERVICE ONL

$2.99

$

In Stock, only 1 left!

0

22

Exmark 1-323228-01

1-323228
(Superseded to 1-323228)

Note: (32" and 36")

$11.99

$

In Stock, only 3 left!

0

Exmark 1-323228-01

1-323228
(Superseded to 1-323228)

Note: (48")

$11.99

$

In Stock, only 3 left!

0

23

Exmark 1-301024

KIT,TRANSMISSION UPDATE

$1020.99

$

Usually ships in 3-6 days

0

24

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 8

0

25

Exmark 1-809001

32128-20
(Superseded to 32128-20)

Note: (Only with B/S engine)

$1.49

$

In Stock, Qty 20+

0

26

Exmark 1-800283

322-22
(Superseded to 322-22)

Note: (With 32" Model 10.5 HP B&S Engine) Torque Engine Mounting Bolts: Briggs & Stratton to 15-20 ft-lbs / Kohler & Kawasaki to 25-30 ft-lbs.

$4.99

$

In Stock, Qty 9

0

Exmark 1-809065

SCRW,CAP HH M8X1.25X75M

Note: (32" and 36" Kawasaki & Kohler)

$2.99

$

Usually ships in 3-6 days

0

Exmark 1-809065

SCRW,CAP HH M8X1.25X75M

Note: (48" and 52" Kawasaki & Kohler)

$2.99

$

Usually ships in 3-6 days

0

27

Exmark 1-800275

322-7
(Superseded to 322-7)

Note: (With 32" Model 10.5 HP B&S Engine) Torque Engine Mounting Bolts: Briggs & Stratton to 15-20 ft-lbs / Kohler & Kawasaki to 25-30 ft-lbs.

$1.49

$

In Stock, only 4 left!

0

Exmark 1-809072

33114-025
(Superseded to 33114-025)

Note: (32" & 36" Kawasaki & Kohler)

$1.99

$

In Stock, Qty 20+

0

Exmark 1-809072

33114-025
(Superseded to 33114-025)

Note: (48" and 52" Kawasaki & Kohler)

$1.99

$

In Stock, Qty 20+

0

28

Exmark 1-303431

FITTING-ELBOW-90

Note: Use Teflon Pipe Sealant (or equivalent) on all pipe threads.

$

$

Not available

29

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

30

Exmark 1-323318-01

HITCH-SULKY

$

$

Not available

31

Exmark 1-809013

9264964
(Superseded to 9264964)

$1.99

$

Usually ships in 3-6 days

0

32

Exmark 1-303186

BELLCRANK

$63.99

$

In Stock, only 1 left!

0

33

Exmark 1-323278

SHEAVE-TRANSMISSION

Note: Apply anti-seize compound to pulley bore(blade drive pulley and drive pulley on transmission)

$90.99

$

In Stock, only 2 left!

0

34

Exmark 1-543233

CAP-HEX

Note: Use Teflon Pipe Sealant (or equivalent) on all pipe threads.

$

$

Not available

35

Exmark 1-303327

98-5975
(Superseded to 98-5975)

$3.99

$

In Stock, Qty 20+

0

36

Exmark 1-804264

3296-6
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 10

0

37

Exmark 1-807009

3257-5
(Superseded to 3257-5)

$5.99

$

In Stock, Qty 16

0

38

Exmark 1-303282

SWITCH-START, NEUTRAL

$53.99

$

In Stock, only 2 left!

0

39

Exmark 1-807511

3231-6
(Superseded to 3231-6)

$3.49

$

In Stock, Qty 8

0

40

Exmark 1-805262

3256-5
(Superseded to 3256-5)

$0.99

$

In Stock, only 2 left!

0

41

Exmark 1-323285

130-8362
(Superseded to 130-8362)

$55.99

$

In Stock, Qty 8

0

42

Exmark 1-805259

3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

43

Exmark 1-800251

321-3
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

44

Exmark 1-804255

3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

45

Exmark 1-603403

BOLT-SHOULDER

$18.99

$

In Stock, only 2 left!

0

46

Exmark 1-301023

Sulky Hitch Kit, Metro

$

$

Currently unavailable

47

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$20.99

$

In Stock, Qty 20+

0

48

Exmark 1-800271

322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

49

Exmark 1-803028

3290-500
(Superseded to 3290-500)

$1.49

$

In Stock, Qty 20+

0

50

Exmark 1-804252

3296-2
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 13

0

51

Exmark 1-323376

103-1606
(Superseded to 103-1606)

$65.99

$

Usually ships in 3-6 days

0

52

Exmark 1-323250

DISCONTINUED (EXMARK)

$

$

Not available

53

Exmark 1-811006

302-19
(Superseded to 302-19)

$2.99

$

In Stock, Qty 20+

0

54

Exmark 1-303498

SHEAVE,BLADE DRIVE

Note: (For 36" Models) Apply anti-seize compound to pulley bore(blade drive pulley and drive pulley on transmission)

$155.99

$

In Stock, only 2 left!

0

Exmark 1-403087

1-403160
(Superseded to 1-403160)

Note: (For 32" and 48" Models)

$103.99

$

In Stock, only 2 left!

0

55

Exmark 1-803310

SCREW-SET

Note: Use Pro-lock (Nut type) Part No. 840022 (.5ml tube) on setscrew threads

$2.99

$

Usually ships in 3-6 days

0

56

Exmark 1-803050

SCREW-SET

Note: Use Pro-lock (Nut type) Part No. 840022 (.5ml tube) on setscrew threads

$2.99

$

In Stock, Qty 5

0

57

Exmark 1-803293

3245-41
(Superseded to 3245-41)

Note: Use Pro-lock (Nut type) Part No. 840022 (.5ml tube) on setscrew threads

$2.99

$

Usually ships in 3-6 days

0

58

Exmark 1-323379

WASHER

$3.49

$

In Stock, only 3 left!

0

59

Exmark 1-803046

30-1710
(Superseded to 30-1710)

Note: Use Pro-lock (Nut type) Part No. 840022 (.5ml tube) on setscrew threads

$12.99

$

In Stock, Qty 7

0

60

Exmark 1-323681

51-4220
(Superseded to 51-4220)

$21.99

$

In Stock, only 1 left!

0

Exmark 1-840022

PRO-LOCK,NUT TYPE

Note: (.5ml tube)

$21.99

$

In Stock, only 1 left!

0

Exmark 1-840023

PRO-LOCK-RETAINING 1

Note: (.5ml tube)

$22.99

$

In Stock, only 1 left!

0

Exmark 1-850337

PAINT,SPRAY RED

$36.99

$

In Stock, Qty 10
