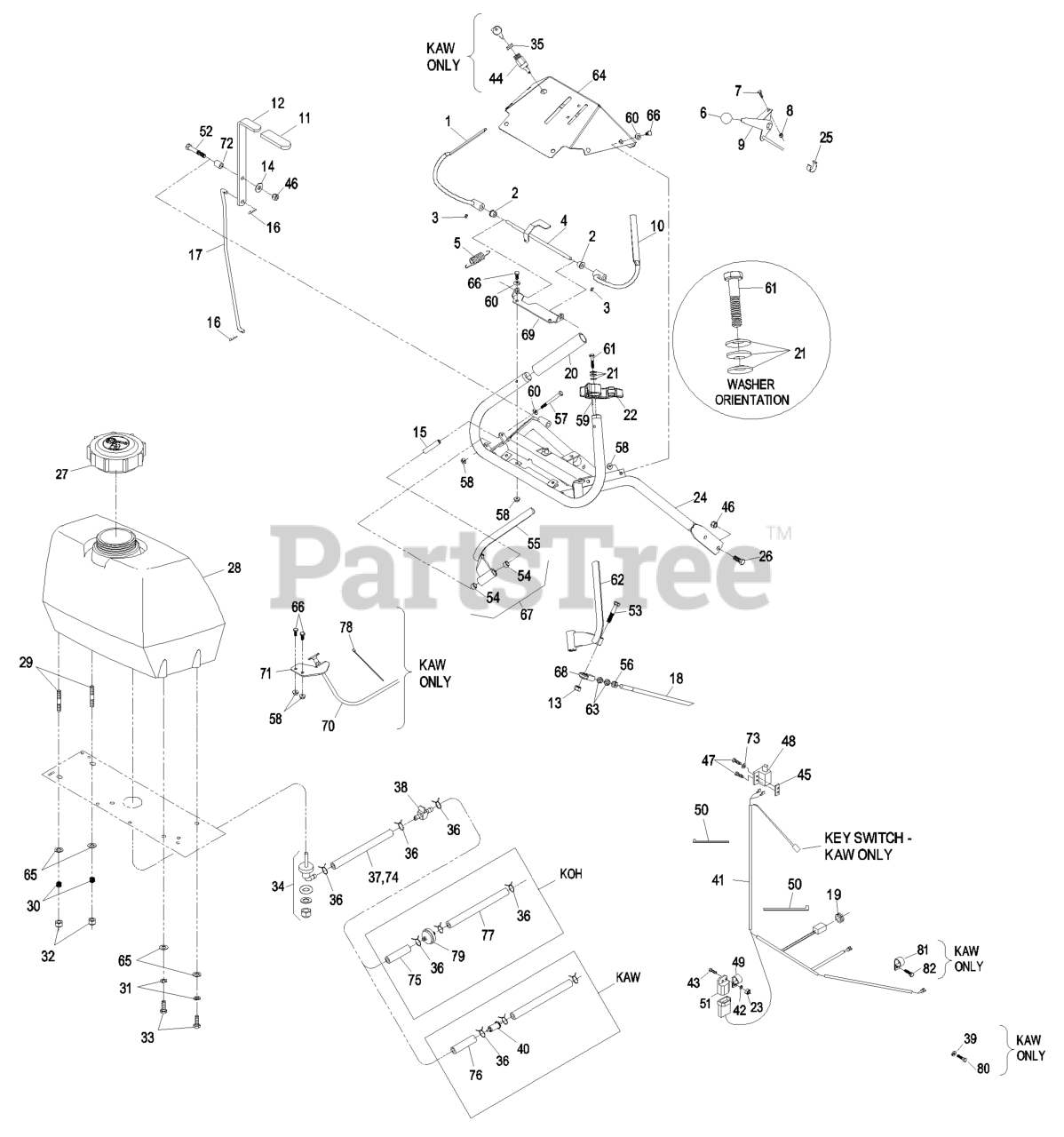

M3613KA - Exmark 36" Metro Walk-Behind Mower, 13HP Kawasaki (SN: 440000 - 509999) (2004)

36" Metro Walk-Behind Mower, 13HP Kawasaki

M3613KA - Exmark 36" Metro Walk-Behind Mower, 13HP Kawasaki (SN: 440000 - 509999) (2004) > Parts Diagrams (9) > ECS Upper Handles And Controls

  • Title
103-1566-03

1

Wld, Lever, Opc (Lh)

Part# 103-1566-03 (Superseded to 116-4079)

Note: Use Pro-lock (Retaining) Part No. 1-840023 (.5 ml tube) on inside of bore of OPC hub and on fuel tank studs going into tank.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.10

1-303365

2

Bushing, Nylon

Part# 1-303365

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.86

1-803322

3

Setscrew, 5/16-24 X 5/16

Part# 1-803322

Note: Use Pro-lock (Nut type) Part No. 1-840022 (.5 ml tube) on setscrew threads, thumb latch screws and on fuel tank fitting.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.67

103-0769-03

4

Wld, Opc Rod

Part# 103-0769-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $29.16

1-303363

5

Spring, Actuator

Part# 1-303363

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.91

1-513592

6

Knob, (Red Ball)

Part# 1-513592

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.20

1-807513

7

Bolt, Carriage 10-24 X 1/2

Part# 1-807513

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.21

3296-2

8

Nut, Nyloc #10-24

Part# 3296-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.29

1-633696

9

Cable, Throttle Control (Kaw)

Part# 1-633696

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $41.55

1-323322

Cable, Throttle Control (Koh)

Part# 1-323322

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $47.31

103-1567-03

10

Wld, Opc Lever (Rh)

Part# 103-1567-03 (Superseded to 116-4080)

Note: Use Pro-lock (Retaining) Part No. 1-840023 (.5 ml tube) on inside of bore of OPC hub and on fuel tank studs going into tank.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.10

1-303020

11

Grip, Lever

Part# 1-303020

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.48

103-1629

12

Lever, Clutch W/Grip

Part# 103-1629

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $14.58

3296-29

13

Nut, Nyloc 5/16-18

Part# 3296-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.87

3256-4

14

Washer, 3/8 Std

Part# 3256-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.23

103-0027

15

Spacer

Part# 103-0027

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.48

1-806003

16

Cotter, Hairpin

Part# 1-806003

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.26

103-1627

17

Linkage, Upper

Part# 103-1627

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $12.15

103-1604

18

Linkage, Wheel Drive

Part# 103-1604

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $15.79

1-543296

19

Grommet

Part# 1-543296

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.74

103-0815

20

Grip, Handle

Part# 103-0815

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.15

1-303435

21

Washer, Spring Disk 1/4

Part# 1-303435

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.01

103-1631

22

Latch, Thumb (Lh)

Part# 103-1631

Note: (Not Shown)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.10

103-1630

Latch, Thumb (Rh)

Part# 103-1630

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.10

3296-42

23

Nut, Nyloc 1/4-20

Part# 3296-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.36

103-0770-03

24

Wld, Handle

Part# 103-0770-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $420.81

1-303088

25

Clip, Cable

Part# 1-303088

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.26

323-6

26

Screw, Hh 3/8-16 X 1

Part# 323-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.97

103-2107

27

Cap, Fuel Tank

Part# 103-2107 (Superseded to 109-0346)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $15.08

103-2893

28

Tank, Fuel W/Fitting

Part# 103-2893

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $192.07

1-633023

29

Stud

Part# 1-633023

Note: Use Pro-lock (Retaining) Part No. 1-840023 (.5 ml tube) on inside of bore of OPC hub and on fuel tank studs going into tank.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.34

1-633349

30

Spring, Fuel Tank

Part# 1-633349

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.24

1-805005

31

Washer, Lock 5/16 Heavy

Part# 1-805005

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.78

3296-47

32

Nut, Nyloc 5/16-18

Part# 3296-47

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.29

322-3

33

Screw, Hh 5/16-18 X 3/4

Part# 322-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.69

103-2605

34

Fitting, Fuel Bulkhead W/Screen

Part# 103-2605

Note: Use Pro-lock (Nut type) Part No. 1-840022 (.5 ml tube) on setscrew threads, thumb latch screws and on fuel tank fitting.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $24.86

103-0498

35

Nut, Ignition Switch (Kaw)

Part# 103-0498

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.34

1-303077

36

Clamp, Fuel Line (Kaw)

Part# 1-303077

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.83

1-303077

Clamp, Fuel Line (Koh)

Part# 1-303077

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.83

1-603955

37

Hose, Fuel Line 6" (Koh)

Part# 1-603955

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.25

1-603770

38

Valve, Fuel

Part# 1-603770

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.91

1-805004

39

Washer, Lock 1/4 Heavy (Kaw)

Part# 1-805004

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.59

Kawasaki Pn 41019-1055 W/6" Fuel Line

40

Kawasaki Pn 41019-1055 W/6" Fuel Line

Part# Kawasaki Pn 41019-1055 W/6" Fuel Line

Not available

103-1640

41

Harness, Wiring (Koh)

Part# 103-1640

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $91.18

103-1610

Harness, Wiring (Kaw)

Part# 103-1610

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $76.17

3256-22

42

Washer, 1/4 SAE

Part# 3256-22

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

321-4

43

Screw, Hh 1/4-20 X 3/4

Part# 321-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.81

1-403121

44

Switch, On/Off (Kaw)

Part# 1-403121

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $18.46

1-603511

Key, Ignition (Kaw)

Part# 1-603511

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.29

103-2106

Key, Exmark Logo (Kaw)

Part# 103-2106

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.10

1-633181

45

Plate, Tapped

Part# 1-633181

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.96

3296-39

46

Nut, Nyloc 3/8-16

Part# 3296-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.11

3290-500

47

Screw, Pph #10-24 X 5/8

Part# 3290-500

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.84

1-513051

48

Switch, Neutral Lockout

Part# 1-513051

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.65

1-323229

49

Clip, Loom 3/8

Part# 1-323229

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.09

1-303287

50

Tie, Plastic 5 1/2"

Part# 1-303287

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.60

1-323430

51

Module, Wiring Harness

Part# 1-323430

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $93.49

323-14

52

Screw, Hh 3/8-16 X 3

Part# 323-14

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.99

322-9

53

Screw, Hh 5/16-18 X 1 3/4

Part# 322-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.46

1-413152

54

Bearing

Part# 1-413152

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.45

103-2466-03

55

Lever, Drive (Lh)

Part# 103-2466-03 (Superseded to 103-2514)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $87.52

3219-3

56

Nut, Hex 3/8-24

Part# 3219-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.35

321-14

57

Screw, Hh 1/4-20 X 2 3/4

Part# 321-14

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.71

32128-33

58

Nut, Whizlock 1/4-20 (Kaw)

Part# 32128-33

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.64

32128-33

Nut, Whizlock 1/4-20 (Koh)

Part# 32128-33

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.64

103-0464

59

Pin, Spring 1/8 X 1/2

Part# 103-0464 (Superseded to 126-2925)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.30

3256-22

60

Washer, 1/4 SAE

Part# 3256-22

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

103-0235

61

Screw, 1/4-20 X 1 1/8 W/Nylon

Part# 103-0235

Note: Use Pro-lock (Nut type) Part No. 1-840022 (.5 ml tube) on setscrew threads, thumb latch screws and on fuel tank fitting.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.79

103-2465-03

62

Lever, Drive (Rh)

Part# 103-2465-03 (Superseded to 116-4082)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $35.24

3220-3

63

Nut, Jam 3/8-24

Part# 3220-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.29

103-2764

64

Asm, Console (103-0546-03) W/Decals (Koh)

Part# 103-2764

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $151.95

103-2765

Asm, Console (103-0546-03) W/Decals (Kaw)

Part# 103-2765

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $159.24

3256-23

65

Washer, 5/16 SAE

Part# 3256-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.72

321-3

66

Screw, Hh 1/4-20 X 5/8 (Kaw)

Part# 321-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.01

321-3

Screw, Hh 1/4-20 X 5/8 (Koh)

Part# 321-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.01

103-2513

67

Asm, Drive Lever (Rh)

Part# 103-2513

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $87.52

103-2514

Asm, Drive Lever (Lh)

Part# 103-2514

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $87.52

103-2463

68

Joint, .375 Ball End

Part# 103-2463

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $20.62

103-0489-03

69

Bracket, Opc Axle

Part# 103-0489-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $16.31

103-1796

70

Cable, Choke Push/Pull (Kaw)

Part# 103-1796

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $33.46

103-1797-01

71

Bracket, Choke Cable (Kaw)

Part# 103-1797-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.24

1-633080

72

Bushing

Part# 1-633080

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.91

3256-14

73

Washer, #10 Std

Part# 3256-14

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

1-303022

74

Hose, Fuel Line 8.5" (Kaw)

Part# 1-303022

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.21

1-603776

75

Hose, Fuel Line 2.5" (Koh)

Part# 1-603776

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.85

1-603955

76

Hose, Fuel Line 6" (Kaw)

Part# 1-603955

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.25

1-603954

77

Hose, Fuel Line 13.75" (Koh)

Part# 1-603954

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.15

1-303335

78

Tie, Plastic 7 5/16" (Kaw)

Part# 1-303335

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.98

1-303197

79

Filter, Fuel (Koh)

Part# 1-303197 (Superseded to 109585)

OEM Warranty Repair Part for Exmark

Not available

33113-016

80

Screw, Hh M6-16 X 1(Kaw)

Part# 33113-016

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.34

1-413510

81

Clip, Loom 1/2" (Kaw)

Part# 1-413510

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.22

33114-016

82

Screw, Hh M8-16 X1.25 (Kaw)

Part# 33114-016

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.46

103-0546-03

Asm, Console

Part# 103-0546-03 (Superseded to 103-2458)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $170.18

1-840022

Pro-Lock Nut Type (.5 Ml Tube)

Part# 1-840022

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $12.69

1-840023

Pro-Lock Retaining (.5 Ml Tube)

Part# 1-840023

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $13.37
