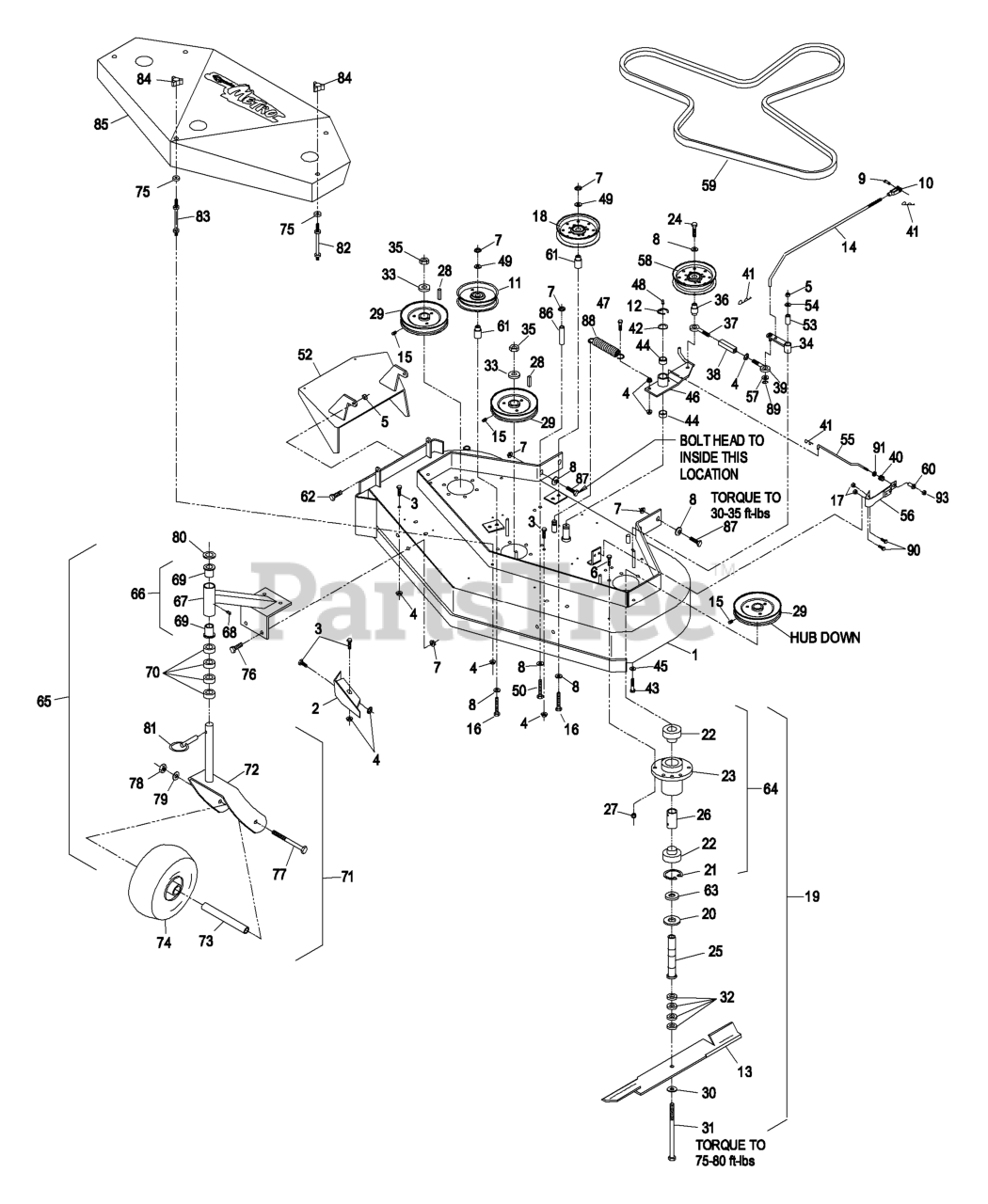

Exmark M3613KC - Exmark 36" Metro Walk-Behind Mower, 13hp Kohler (SN: 260000 - 319999) (2001) Engine Deck Group (Part 1) Parts Lookup with Diagrams

1

Exmark 1-404257

DECK-SERVICE, 48

Note: (48") Deck weldmt does include welded in flow control baffles.

$2899.99

$

Usually ships in 3-6 days

Exmark 1-402108-01

1-404257

(Superseded to 1-404257) 

Note: (48") Deck weldmt does include welded in flow control baffles.

$2899.99

$

Usually ships in 3-6 days

2

Exmark 1-402107-01

BAFFLE-DOGLEG

$

Not available 

3

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

4

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

5

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

6

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

7

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

8

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

9

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, Qty 20+

10

Exmark 1-303105

YOKE-ADJUSTABLE

$13.99

$

In Stock, only 2 left!

11

Exmark 1-613098

PULLEY-IDLER

$50.99

$

In Stock, Qty 20+

12

Exmark 32151-103

RING-RETAINING, EXT

Note: For .875 rd

$3.49

$

In Stock, Qty 20+

13

Exmark 1-323515

103-6583-S

(Superseded to 103-6583-S) 

Note: (48")

$34.99

$

In Stock, Qty 20+

Exmark 1-413438

103-1577-S

(Superseded to 103-1577-S) 

Note: (48")

$39.99

$

Usually ships in 3-6 days

Exmark 1-403148

103-6581-S

(Superseded to 103-6581-S) 

Note: (48") Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N's MK483. Exmark red touch up spray paint - P/N 1-850337

$36.99

$

In Stock, Qty 20+

Exmark 1-403149

103-6738-S

(Superseded to 103-6738-S) 

Note: (48"); Optional

$34.99

$

In Stock, Qty 7

Exmark 103-1577

103-1577-S

(Superseded to 103-1577-S) 

Note: (48")

$39.99

$

Usually ships in 3-6 days

14

Exmark 1-323303

ARM-ASSIST, LINKAGE

$26.99

$

In Stock, only 2 left!

15

Exmark 1-803310

SCREW-SET

Note: Use Pro-lock Nut Type (P/N 1-840022 .5 ml tube) on the setscrews

$2.99

$

In Stock, only 2 left!

16

Exmark 323-13

SCREW-HH

$3.99

$

In Stock, Qty 20+

17

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

18

Exmark 1-403186

126-9187

(Superseded to 126-9187) 

$63.99

$

In Stock, Qty 10

19

Exmark 1-324265

HOUSING,CUTTER COMPLETE(S

Note: Cutter housing complete includes sheave, washer, and nut and does not include blade.

$

Not available 

20

Exmark 1-633573

GUARD-BEARING, BOTTOM

$5.49

$

In Stock, only 2 left!

21

Exmark 32120-8

RING-SNAP

$2.99

$

In Stock, Qty 20+

22

Exmark 1-513016

BEARING

Note: Use antisieze on bore of sheaves & bearings.

$86.99

$

In Stock, Qty 20+

23

Exmark 1-323532

103-8280

(Superseded to 103-8280) 

$282.99

$

In Stock, Qty 13

24

Exmark 702809

SCREW-HH

$5.49

$

In Stock, only 3 left!

25

Exmark 1-323529

TUBE-SPINDLE, SHORT

$94.99

$

In Stock, Qty 8

26

Exmark 1-323528

SPACER-BEARING

$9.99

$

In Stock, Qty 10

27

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

28

Exmark 1-807267

KEY

$2.99

$

In Stock, Qty 20+

29

Exmark 1-403183

SHEAVE

Note: Use antisieze on bore of sheaves & bearings.

$74.99

$

In Stock, Qty 6

30

Exmark 1-513208

WASHER-SPRING

$9.49

$

In Stock, Qty 20+

31

Exmark 1-800861

SCREW-CAP, HH

$20.99

$

In Stock, Qty 15

32

Exmark 1-323539

SPACER

$2.49

$

In Stock, Qty 20+

33

Exmark 1-323339

WASHER-RETAINER, SHEAVE

$5.49

$

In Stock, Qty 20+

34

Exmark 1-322230

ARM-ASSIST

Note: (48")

$46.99

$

Usually ships in 3-6 days

35

Exmark 3219-6

NUT-HEX

$4.49

$

In Stock, Qty 20+

36

Exmark 1-303434

BUSHING-ENGAGEMENT

$15.99

$

In Stock, Qty 20+

37

Exmark 1-303348

EYEBOLT-THREAD, LH

$6.99

$

In Stock, Qty 20+

38

Exmark 1-303236

BODY-TURNBUCKLE

$22.99

$

In Stock, Qty 15

39

Exmark 1-303238

EYEBOLT-THREAD, RH

$6.99

$

In Stock, Qty 20+

40

Exmark 1-323747

SPRING-COMPRESSION

$3.49

$

In Stock, Qty 9

41

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

42

Exmark 1-303352

WASHER-SPINDLE

$2.99

$

In Stock, Qty 13

43

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

44

Exmark 1-323729

SLEEVE-BEARING

$5.49

$

In Stock, Qty 20+

45

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

46

Exmark 1-402109

ENGAGE ARM ASM

Note: (48")

$132.99

$

In Stock, only 2 left!

47

Exmark 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

48

Exmark 302-19

FITTING-GREASE

$2.99

$

In Stock, Qty 20+

49

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

50

Exmark 323-20

SCREW-HH

$3.99

$

In Stock, Qty 12

51

Exmark 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

52

Exmark 1-402106-01

WLD,CHUTE 48

$187.99

$

In Stock, only 2 left!

53

Exmark 1-403179

TUBE-PIVOT

$19.99

$

In Stock, only 2 left!

54

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

55

Exmark 1-323714

ROD-BRAKE

$29.99

$

In Stock, only 2 left!

56

Exmark 1-324372

PAD AND SPRING ASM

$72.99

$

In Stock, Qty 8

57

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

58

Exmark 1-603843

132-4718

(Superseded to 132-4718) 

$35.99

$

In Stock, Qty 20+

59

Exmark 1-403174

BELT,BLADE 48

(Superseded to 1-403174-SL) 

Note: 48"

$100.99

$

In Stock, Qty 20+

60

Exmark 1-323746

SPACER-FLANGED

$1.49

$

In Stock, Qty 20+

61

Exmark 1-403184

1-413113

(Superseded to 1-413113) 

$6.49

$

In Stock, Qty 20+

62

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

63

Exmark 1-323533

SPACER-PULLEY/BEARING

$5.49

$

In Stock, Qty 8

64

Exmark 1-634619

103-8280

(Superseded to 103-8280) 

$282.99

$

In Stock, Qty 13

65

Exmark 1-322153

CASTER/MOUNT ASM

$

Not available 

66

Exmark 1-302203

SUPPORT ASM

$318.99

$

Usually ships in 3-6 days

67

Exmark 1-302194-01

1-302203

(Superseded to 1-302203) 

$318.99

$

Usually ships in 3-6 days

68

Exmark 1-302-52

Grease Zerk, 1/8 N.P.T.

$

Currently unavailable 

69

Exmark 1-303514

BEARING-FLANGED

$13.99

$

In Stock, Qty 20+

70

Exmark 1-303314

SPACER-CASTER

$6.99

$

In Stock, Qty 20+

71

Exmark 1-322154

103-1236

(Superseded to 103-1236) 

$220.99

$

Usually ships in 3-6 days

72

Exmark 1-322145-01

116-7942-01

(Superseded to 116-7942-01) 

$101.99

$

In Stock, only 1 left!

73

Exmark 1-513547

SPACER

$13.99

$

In Stock, Qty 20+

74

Exmark 103-1224

103-2171

(Superseded to 103-2171) 

Note: Caster tires with valve stems have pneumatic casters (order assembly part number 1-513648). Caster tires without valve stems have semi-pneumatic casters (order assembly part number 103-1224).

$137.99

$

In Stock, Qty 17

Exmark 1-513648

103-2171

(Superseded to 103-2171) 

Note: Caster tires with valve stems have pneumatic casters (order assembly part number 1-513648). Caster tires without valve stems have semi-pneumatic casters (order assembly part number 103-1224).

$137.99

$

In Stock, Qty 17
