M48-14KO-5 - Exmark 48" Metro Walk-Behind Mower, 14hp Kohler (SN: 090000 - 101999) (1994) Peerless Transmission Model 700-026 Parts Diagram

48" Metro Walk-Behind Mower, 14hp Kohler

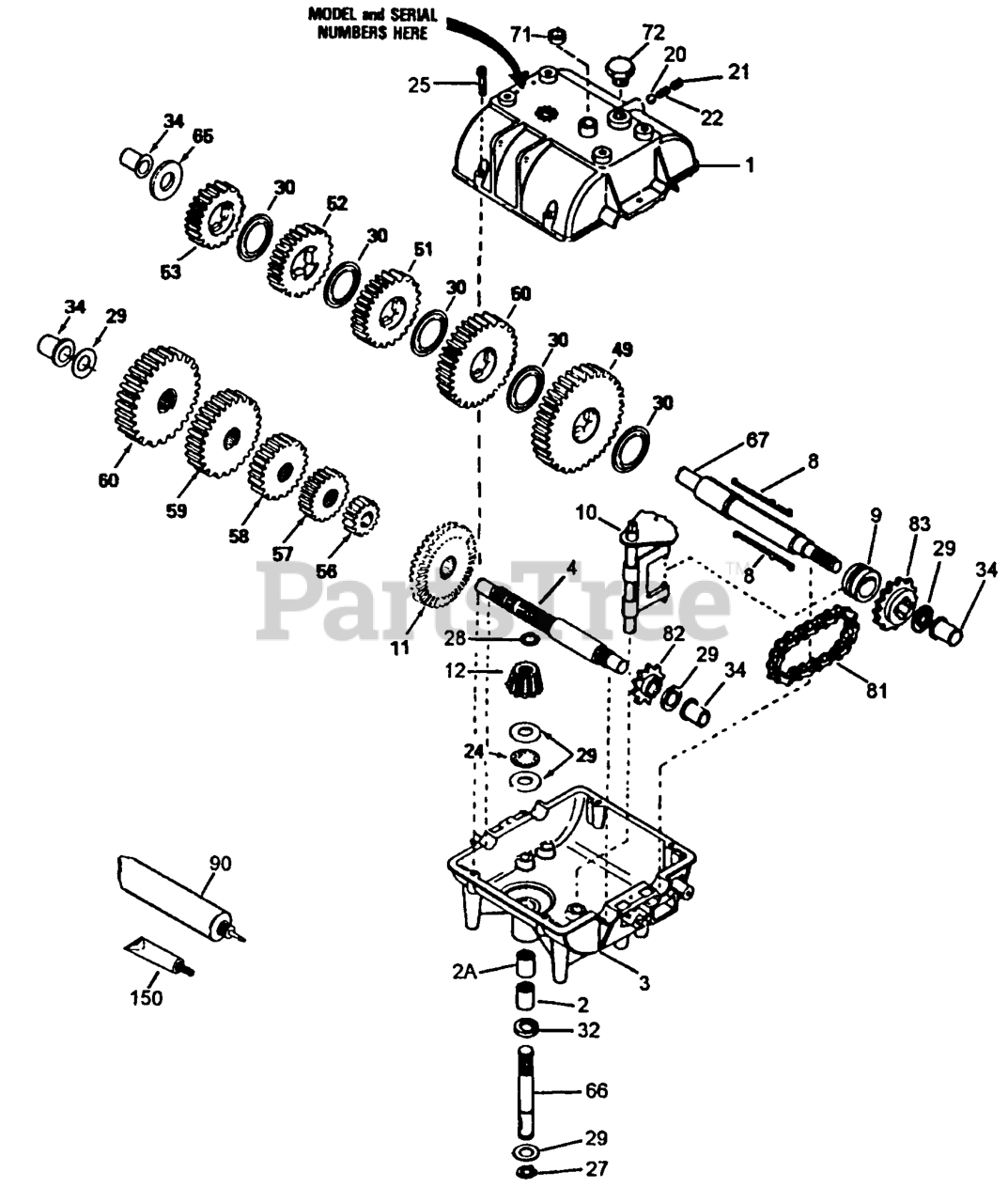

Peerless Transmission Model 700-026 Parts Diagram

  • Title
1

Exmark 772083A

Transmission Cover

$

$

Currently unavailable

2

Exmark 1-780086

Needle Bearing

$

$

Currently unavailable

2A

Exmark 1-780142

Needle Bearing

$

$

Currently unavailable

3

Exmark 770061A

Transmission Case

$

$

Currently unavailable

4

Exmark 1-776134

Countershaft

$

$

Currently unavailable

8

Exmark 792089A

Shift Key

$

$

Currently unavailable

9

Exmark 1-784266

Shift Collar

$

$

Currently unavailable

10

Exmark 1-784267

Shift Rod & Fork

$

$

Currently unavailable

11

Exmark 1-778154

Bevel Gear (42 Teeth)

$

$

Currently unavailable

12

Exmark 1-778176

Input Bevel Pinion (14 Teeth-Steel)

$

$

Currently unavailable

20

Exmark 1-792077

Steel Ball, 5/16" Dia.

$

$

Currently unavailable

21

Exmark 1-792078

Set Screw, 3/8-16 X 3/8"

$

$

Currently unavailable

22

$

$

Currently unavailable

24

Exmark 1-780071

Thrust Bearing

$

$

Currently unavailable

25

Exmark 1-792073

Screw, 1/4-20 X 1-1/4"

$

$

Currently unavailable

27

Exmark 1-792035

Retaining Ring

$

$

Currently unavailable

28

Exmark 1-788040

Retaining Ring

$

$

Currently unavailable

29

$

$

Currently unavailable

30

$

$

Currently unavailable

32

Exmark 1-792001

"O" Ring

$

$

Currently unavailable

34

Exmark 780105A

Flanged Bushing

$

$

Currently unavailable

49

Exmark 778146A

Spur Gear (37 Teeth)

$

$

Currently unavailable

50

Exmark 1-778125

Spur Gear (35 Teeth)

$

$

Currently unavailable

51

Exmark 778239A

Spur Gear (32 Teeth-Steel)

$

$

Currently unavailable

52

Exmark 778124A

Spur Gear (30 Teeth)

$

$

Currently unavailable

53

Exmark 778123A

Spur Gear (25 Teeth)

$

$

Currently unavailable

56

Exmark 1-778145

Spur Gear (12 Teeth-Steel)

$

$

Currently unavailable

57

Exmark 1-778151

Spur Gear (15 Teeth)

$

$

Currently unavailable

58

Exmark 1-778240

Spur Gear (18 Teeth-Steel)

$

$

Currently unavailable

59

Exmark 778126A

Spur Gear (20 Teeth)

$

$

Currently unavailable

60

Exmark 778127A

Spur Gear (25 Teeth)

$

$

Currently unavailable

65

$

$

Currently unavailable

66

Exmark 1-776135

Input Shaft (3-11/16" Long)

$

$

Currently unavailable

67

Exmark 1-776217

Shifter & Brake Shaft

$

$

Currently unavailable

71

Exmark 1-788069

Square Cut Ring

$

$

Currently unavailable

72

Exmark 1-792074

Threaded Plug

$

$

Currently unavailable

81

Exmark 1-786081

Roller Chain (No. 41 Chain, 24 Links)

$

$

Currently unavailable

82

Exmark 1-786082

Sprocket (9 Teeth)

$

$

Currently unavailable

83

Exmark 1-786083

Sprocket (18 Teeth)

$

$

Currently unavailable

90

Exmark 788067B

Grease (32 Oz. Bottle Bentonite Grease)

$

$

Currently unavailable

150

Exmark 1-510334

DISCONTINUED (EXMARK)

$

$

Not available
