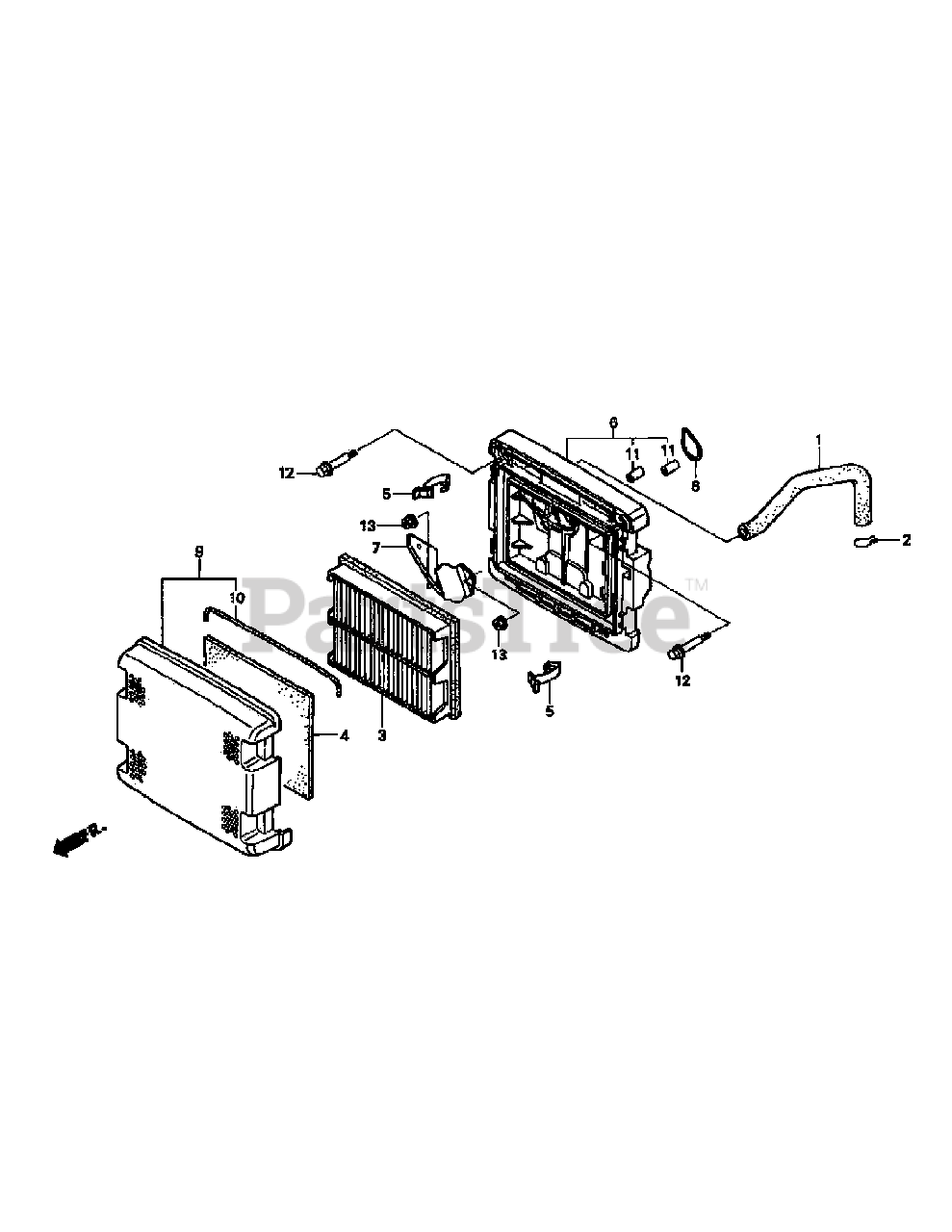

M48-HN (53AB5E6V150) - Cub Cadet 48" Tank Zero-Turn Mower, 20hp Honda (2003 1/2) GXV620K1 Air Cleaner Parts Diagram

48" Tank Zero-Turn Mower, 20hp Honda

GXV620K1 Air Cleaner Parts Diagram

  • Title

1

Honda 12357-ZJ4-830

Breather Tube

$11.99

$

In Stock, Qty 11

0

2

Honda 15772-551-000

Breather Tube Clip

$2.99

$

In Stock, only 1 left!

0

3

Honda 17210-ZJ1-842

Air Cleaner Element

$62.99

$

In Stock, Qty 11

0

4

Honda 17218-ZJ1-840

Pre Filter Element

$7.49

$

In Stock, Qty 9

0

5

Honda 17219-ZJ1-840

Air Cleaner Clip

$4.99

$

In Stock, only 4 left!

0

6

Honda 17220-ZJ4-830

Air Cleaner Housing

$110.99

$

In Stock, only 1 left!

0

7

Honda 17223-ZJ4-830

Air Cleaner Cap

$

$

Not available

8

Honda 17228-ZG8-003

Air Cleaner Gasket

$5.49

$

In Stock, only 4 left!

0

9

Honda 17230-ZJ1-841

Air Cleaner Cover Assy.

$66.99

$

In Stock, only 2 left!

0

10

Honda 17233-ZJ1-840

Air Cleaner Cover Seal

$3.99

$

In Stock, Qty 7

0

11

Honda 17238-ZJ4-830

Air Cleaner Collar

$3.49

$

In Stock, only 2 left!

0

12

Honda 90003-ZJ1-840

Special Bolt (5mm)

$3.99

$

In Stock, only 2 left!

0

13

Honda 94050-06000

Flange Nut (6mm)

$0.99

$

In Stock, Qty 20+

0
