M48-HN (53AB5E6V150) - Cub Cadet 48" Tank Zero-Turn Mower, 20hp Honda (2003 1/2) GXV620K1 Starter Motor Parts Diagram

48" Tank Zero-Turn Mower, 20hp Honda

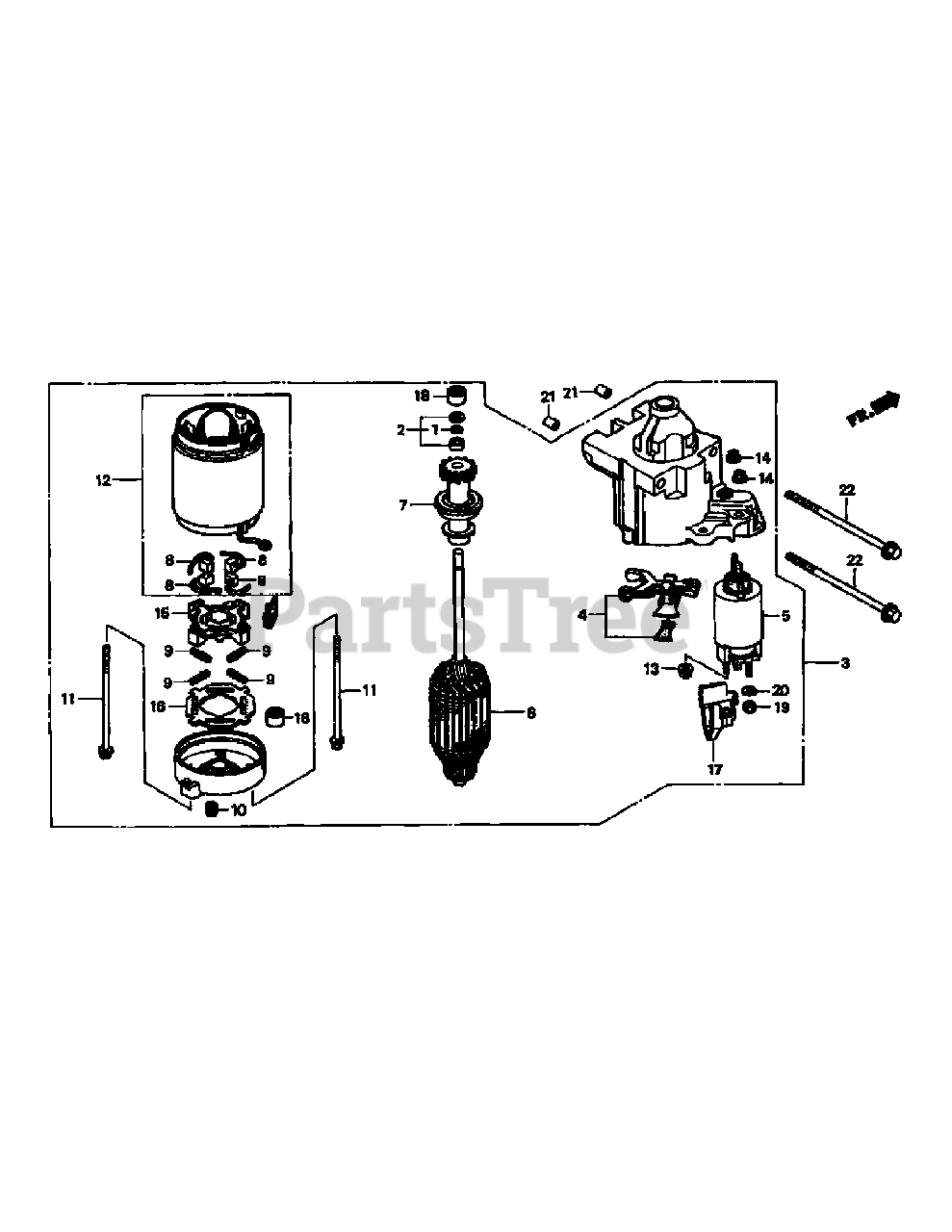

GXV620K1 Starter Motor Parts Diagram

  • Title

1

Honda 30201-PH9-004

Snap Ring

$4.49

$

Usually ships in 3-6 days

0

2

Honda 30202-PZ1-003

Clutch Stop Collar Set

$25.99

$

Usually ships in 3-6 days

0

3

Honda 31200-ZJ4-832

Starter Motor Assy.

$927.99

$

Usually ships in 3-6 days

0

4

Honda 31203-PH9-004

Pinion Drive Lever

$49.99

$

Usually ships in 3-6 days

0

5

Honda 31204-ZJ1-H02

Magnet Switch Assy.

$241.99

$

Usually ships in 3-6 days

0

6

Honda 31206-ZG4-801

Armature

$280.99

$

Usually ships in 3-6 days

0

7

Honda 31207-ZJ4-831

Overrunning Clutch

$374.99

$

Usually ships in 3-6 days

0

8

Honda 31211-PH9-004

Brush

$24.99

$

Usually ships in 3-6 days

0

9

Honda 31212-PH9-004

Brush Spring

$8.99

$

Usually ships in 3-6 days

0

10

Honda 31213-679-004

Cover

$62.99

$

Usually ships in 3-6 days

0

11

Honda 31214-PH9-004

Through Bolt

$13.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 31216-ZJ1-H01

Yoke

$

$

Not available

13

Honda 31220-PH9-004

Hex Nut (8mm)

$5.49

$

Usually ships in 3-6 days

0

14

Honda 31223-PA0-006

Flange Nut (5mm)

$5.49

$

Usually ships in 3-6 days

0

15

Honda 31231-PH9-004

Brush Holder

$71.99

$

Usually ships in 3-6 days

0

16

Honda 31233-PH9-004

Brush Holder Insulator

$44.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 31234-ZJ1-H01

Terminal Cover

$

$

Not available

18

Honda 91002-ZG4-801

Bearing

$11.99

$

Usually ships in 3-6 days

0

19

Honda 94001-08000-0S

Hex Nut (8mm)

$1.99

$

In Stock, Qty 20+

0

20

Honda 94111-08000

Spring Washer (8mm)

$1.49

$

Usually ships in 3-6 days

0

21

Honda 94301-10120

Dowel Pin

$3.99

$

Usually ships in 3-6 days

0

22

Honda 95701-08110-00

Flange Bolt (8x110)

$4.49

$

In Stock, only 1 left!

0
