M48-HN (53AB5E6V150) - Cub Cadet 48" Tank Zero-Turn Mower, 20hp Honda (2003) Brake Assembly Parts Diagram

48" Tank Zero-Turn Mower, 20hp Honda

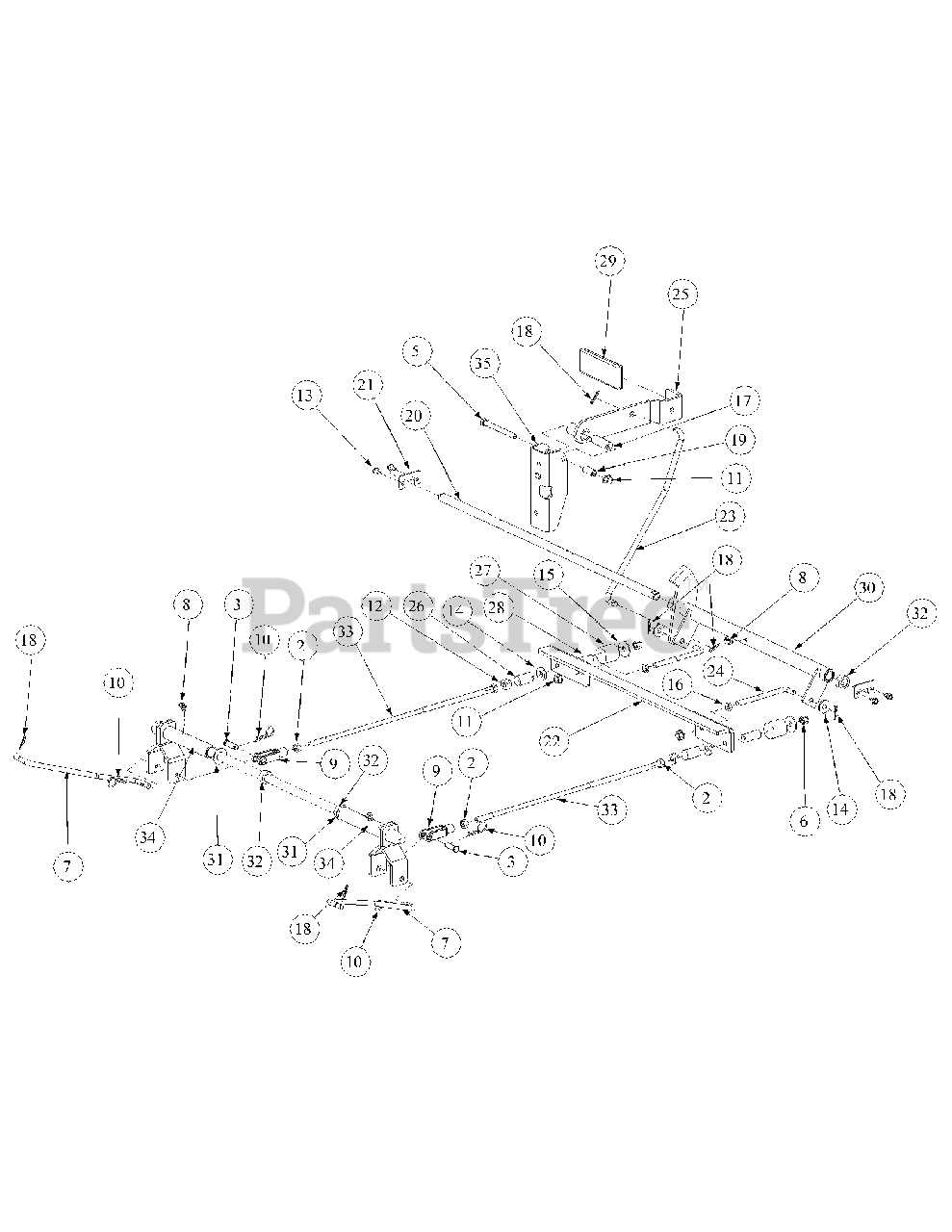

Brake Assembly Parts Diagram

  • Title

2

Cub Cadet 912-3017

Hex Nut, 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, only 2 left!

0

3

Cub Cadet 00009678

Clevis Pin, 3/8 x 1-1/8
(Superseded to 711-05735)

$13.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 00011888

Hex Cap Screw, 3/8-16 x 3-1/2

$3.49

$

In Stock, only 1 left!

0

6

Cub Cadet 712-04065

Nylock Nut, 3/8-16

$4.49

$

In Stock, Qty 15

0

7

Cub Cadet 01007771

Linkage Brake Rod

$23.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 737-3004

Grease Fitting, 1/4 -28, 90°.

$12.99

$

In Stock, only 2 left!

0

9

Cub Cadet 00021955

Yoke, 3/8-16

$45.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 00021956

Hair Pin, 3/8" - 1/2"
(Superseded to 914-04023)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 00022560

Flange Lock Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 01000100

Shoulder Nut

$

$

Not available

13

Cub Cadet 710-0599

Screw, 1/4-20 x 1-1/2

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 736-3052

Flat Washer, .406 ID x 1.0 OD x .105

$4.99

$

In Stock, only 4 left!

0

15

Cub Cadet 936-0133

Flat Washer, .411 x 1.25 x .100
(Superseded to 736-0133)

$

$

Not available

16

Cub Cadet 01002511

Jam Nut, 3/8-16

$

$

Not available

17

Cub Cadet 01002751

Spacer, .375 x .50 x 1.75

$

$

Not available

18

Cub Cadet 914-0104

Cotter Pin, .072 x 1.12 Lg
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 10

0

19

Cub Cadet 750-0434

Spacer, .375 x .50 x 1.02 Lg

$7.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 01008524

Bellecrank Mounting Shaft

$71.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 01003591

Parking Brake Shaft Holder

$34.99

$

In Stock, only 1 left!

0

22

Cub Cadet 01003593

Brake Bracket

$

$

Not available

23

Cub Cadet 01008886

Brake Rod

$42.99

$

In Stock, only 2 left!

0

24

Cub Cadet 01003417

Connector Rod, 3/8 OD x 5.75

$

$

Not available

25

Cub Cadet 01003595

Brake Handle

$

$

Not available

26

Cub Cadet 01003574

Neutral Brake Spring

$11.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 01003575

Force Brake Spring

$

$

Not available

28

Cub Cadet 01003576

Center Brake Hose

$

$

Not available

29

Cub Cadet 01003716

Parking Brake Grip

$38.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 01003730

Brake Bearing Hub

$

$

Not available

31

Cub Cadet 01004003

Flat Washer, 5/8
(Superseded to 736-04602)

$4.49

$

In Stock, only 3 left!

0

32

Cub Cadet 01006350

Shaft Collar, .625 ID x 1" OD x .438

$26.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 01006856

Connector Rod, 3/8 OD x 17.88 Lg

$

$

Not available

34

Cub Cadet 01007241

Rear Brake Arm Assembly

$

$

Not available

35

Cub Cadet 01008889

Parking Brake Mounting Bracket

$

$

Not available
