M48-HN (53BB5E6V750) - Cub Cadet 48" Tank Zero-Turn Mower, 20hp Honda Front Caster Assembly Parts Diagram

48" Tank Zero-Turn Mower, 20hp Honda

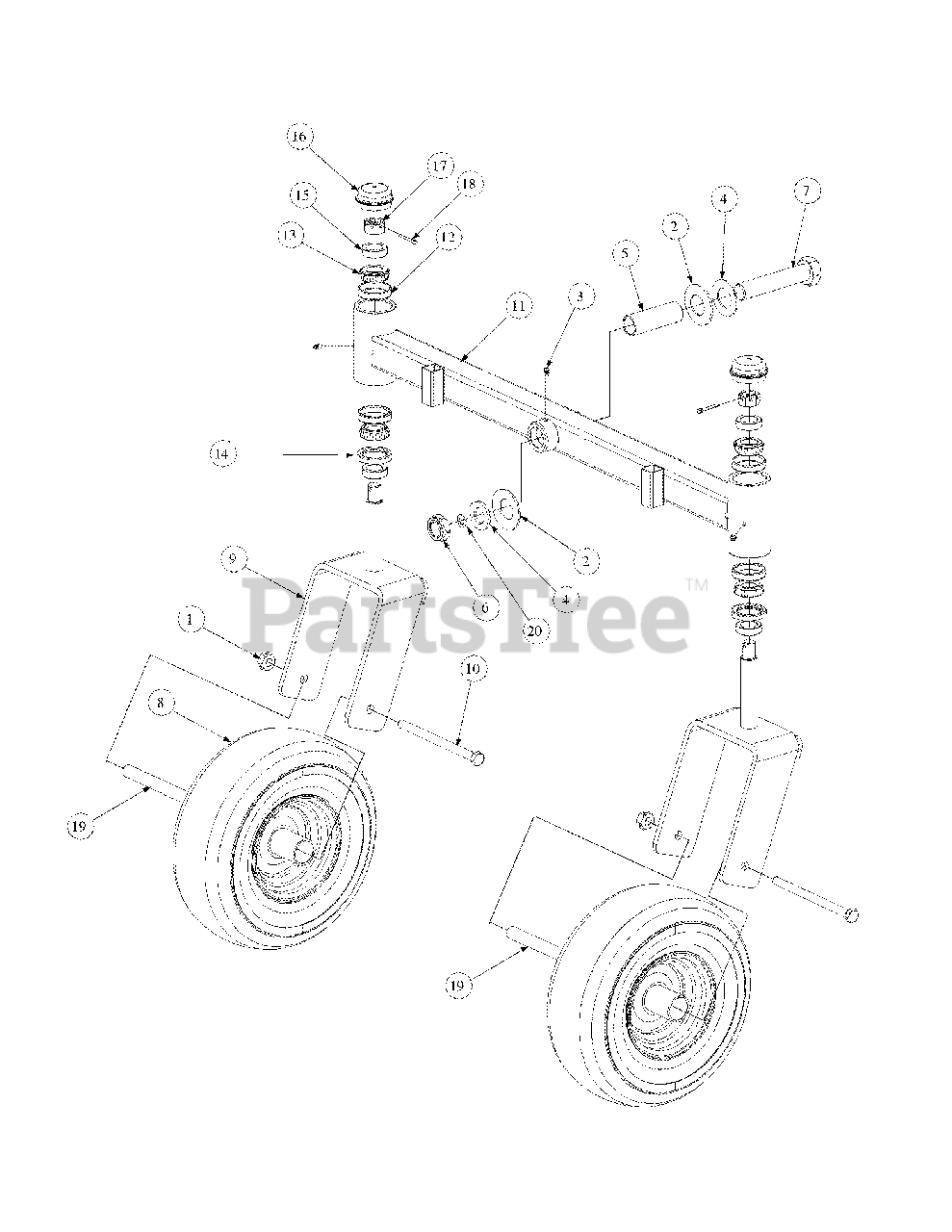

Front Caster Assembly Parts Diagram

  • Title

1

Cub Cadet 00023287

Nut, 1/2-20, Center Lock
(Superseded to 712-0239)

$

$

Not available

2

Cub Cadet 01006294

Bell Washer, 1.25 ID
(Superseded to 736-04604)

$8.99

$

In Stock, only 2 left!

0

3

Cub Cadet 737-04345

Grease Fitting

$4.99

$

In Stock, Qty 6

0

4

Cub Cadet 02000588

Flat Washer, 1.00 ID
(Superseded to 736-04605)

$4.49

$

In Stock, only 2 left!

0

5

Cub Cadet 02000589

Spacer, 1.005 ID x 1.25 OD x 3.6

$33.99

$

In Stock, only 2 left!

0

6

Cub Cadet 01000678

Nut, Jam, 1.0-14, Insert Lock
(Superseded to 712-05008)

$15.99

$

In Stock, only 2 left!

0

7

Cub Cadet 01006309

Hex Cap Screw, 1-14 x 5.0

$32.99

$

In Stock, only 2 left!

0

8

Cub Cadet 01006311

Wheel, 13 x 5-6, White: Includes;

$298.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 02002106

Front Roller Bearings

Note: (not shown)

$34.99

$

In Stock, only 4 left!

0

8

Cub Cadet 02002107

Front Retainer Bushings

Note: (not shown)

$6.99

$

In Stock, Qty 11

0

8

Cub Cadet 02002105

Tire

Note: (not shown)

$151.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 01001625

Yoke, Caster Wheel

$

$

Not available

10

Cub Cadet 01002611

HHCS, 1/2-20, 7.00

$

$

Not available

11

Cub Cadet 02000436-0637

Straight Front Axle

$411.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 01002620

Cup Bearing
(Superseded to 741-04548)

$9.49

$

In Stock, Qty 8

0

13

Cub Cadet 01002621

Bearing Cone
(Superseded to 741-04549)

$20.99

$

In Stock, only 4 left!

0

14

Cub Cadet 01002622

Seal
(Superseded to 721-04462)

$11.99

$

In Stock, only 2 left!

0

15

Cub Cadet 01002624

Ring Seal
(Superseded to 750-05600)

$7.99

$

In Stock, only 3 left!

0

16

Cub Cadet 01006347

Grease Cap, 1.986 OD
(Superseded to 703-10384)

$15.99

$

In Stock, Qty 15

0

17

Cub Cadet 712-0359

Slotted Nut, 3/4-16

$12.99

$

In Stock, only 2 left!

0

18

Cub Cadet 714-0162

Cotter Pin, 5/32, 1.25

$5.49

$

In Stock, Qty 20+

0

19

Cub Cadet 02002153

Wheel Spacer

$15.99

$

In Stock, Qty 14

0

20

Cub Cadet 01009997

Retainer Extension, Self Locking
(Superseded to 716-04191)

$4.49

$

In Stock, only 2 left!

0
