M48-KH (53AH8CT2050) - Cub Cadet 48" Tank Zero-Turn Mower, 25hp Kohler Hydro Hose & Pump Assembly Parts Diagram

48" Tank Zero-Turn Mower, 25hp Kohler

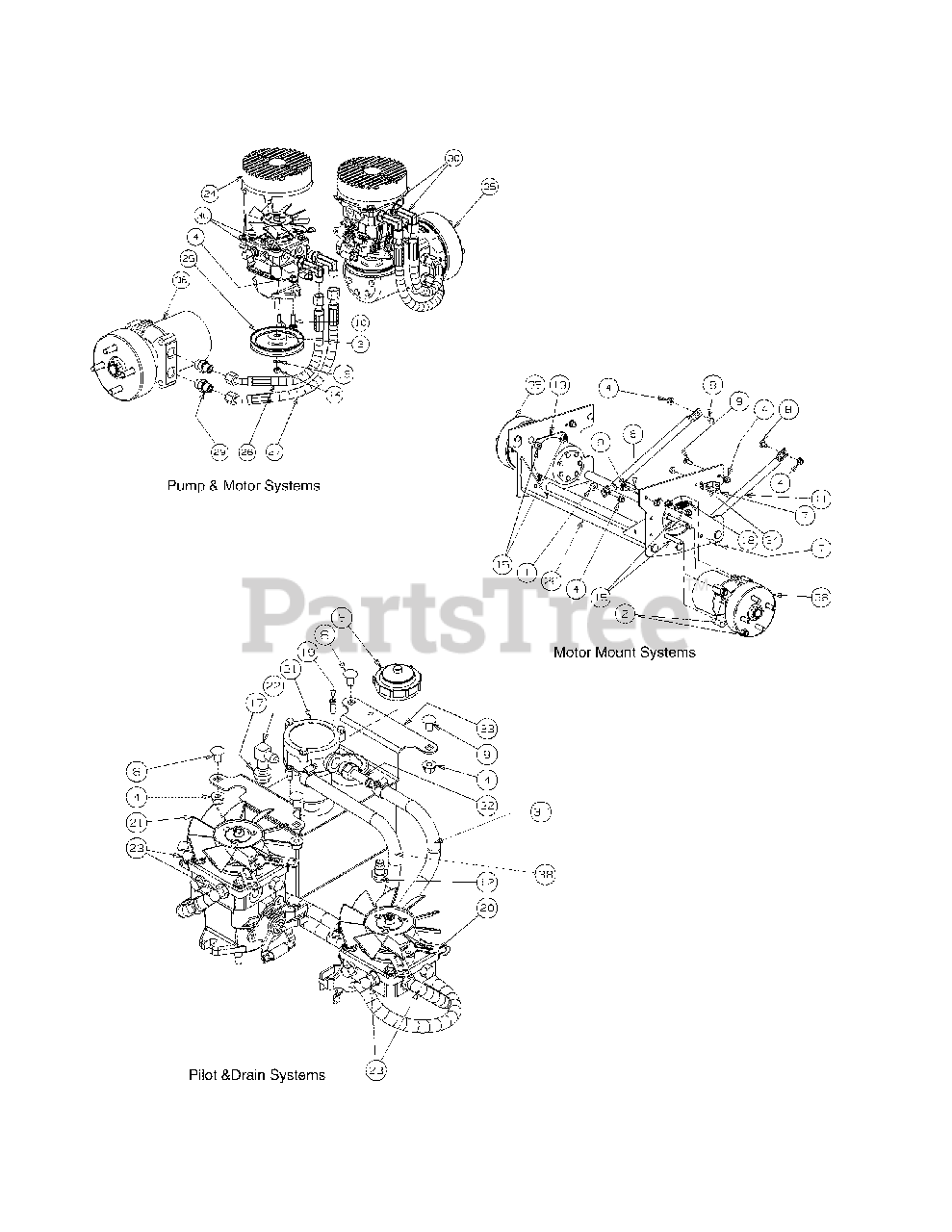

Hydro Hose & Pump Assembly Parts Diagram

  • Title

1

Cub Cadet 00083192

Idler Washer
(Superseded to 736-0258)

$4.99

$

In Stock, Qty 20+

0

2

Cub Cadet 712-3083

Washer lock 3/8 zinc

$4.99

$

In Stock, Qty 20+

0

3

Cub Cadet 00020628

Key, 3/16" x 7/8"

$7.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 00022560

Flange Lock Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 00030261

Cap, Hydro Oil Tank

$39.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0560

Hex Carriage Screw, 3/8-16, 1.75

$7.49

$

In Stock, Qty 13

0

7

Cub Cadet 710-3005

Hex Cap Screw, 3/8 -16 x 1.25

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75 LG.

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3168

Carriage Bolt, 3/8-16 x 1

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-3034

Carriage Screw, 3/8-16 x 1.25

$4.49

$

In Stock, only 2 left!

0

11

Cub Cadet 01002593

Strut Frame

Variations

Cub Cadet 01002593-0637

Strut Frame - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 01002593-4021

STRUT-FRAME - CUB YELLOW 2 (4021)

$

$

Not available

$

$

12

Cub Cadet 738-0940

Oil Pan Drain Plug w/ Seal

$

$

Not available

13

Cub Cadet 01006949

Hydro Wheel Motor Backup Plate

$40.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 01007309

Hex Nut, 3/8-24

$5.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 01007791

Socket Head Capscrew, 1/2-13; 3-1/2

$

$

Not available

16

Cub Cadet 00006168

Flat Washer, 3/8
(Superseded to 936-3015)

$4.49

$

In Stock, Qty 18

0

17

Cub Cadet 02000296

Grommet Fitting, .54 ID x .78 OD

$21.99

$

In Stock, only 1 left!

0

18

Cub Cadet 02000401

Spring Extension, .740 OD x 2.656

$10.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 02000841

Socket Low Head Cap Screw, 1/4-20 x 0.75

$5.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 02000905P

Hydro Pump, BDP-12, RH

$1955.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 01009631P

Kit, Fan
(Superseded to HG-71172)

$39.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 02000906P

Hydro Pump, BDP-12, LH

$1955.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 01009631P

Kit, Fan
(Superseded to HG-71172)

$39.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 02001151

Fitting Elbow Spur, 5/8 x 1/2

$

$

Not available

23

Cub Cadet 02001160

Fitting Elbow, 9/16 x 1/2

$63.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 02001169

Fan Pump Shroud

$37.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 02001172

Hydro Pump Pulley

$96.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 02001176

Short Pressure Hose Assembly

$120.99

$

In Stock, only 1 left!

0

27

Cub Cadet 02001177

Long Pressure Hose Assembly

$126.99

$

In Stock, Qty 7

0

28

Cub Cadet 02004429

Hydro Motor Frame Assembly

Variations

Cub Cadet 02004429-0637

FRAME ASSY - HYDRO - POWDER BLACK (0637)

$

$

Not available

$

$

29

Cub Cadet 02001715

Adaptor Fitting, 8 x 10
(Superseded to 737P05711)

$16.99

$

In Stock, only 1 left!

0

30

Cub Cadet 02002003

Adaptor, 8 x 8

$48.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 02002257

Hydraulic In-Tank Filter includes:

$185.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 02002258

Replacement Filter

$52.99

$

In Stock, Qty 15

0

32

Cub Cadet 02002557

Fitting, 3/4 ORB x 1/2 Tube

$

$

Not available

33

Cub Cadet 02002701-0637

Hydraulic Tank Assembly

$

$

Not available

34

Cub Cadet 02003826

Rear Cable Mounting Bracket

$

$

Not available

35

Cub Cadet 02004442P

Hydro Motor, Left Hand Assembly w/ Brake & Drum

$2780.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 02004441P

Hydro Motor, Right Hand Assembly w/ Brake & Drum

$2935.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 02001872P

Hose Assembly, Pilot inlcudes:

$107.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 02001175

Tee Fitting, 1/2

$29.99

$

In Stock, only 2 left!

0

37

Cub Cadet 02002392

Hose Clamp, 1/2

$10.99

$

Usually ships in 3-6 days

0

37

Fuel Hose, .50 ID x .75 OD (43 inches)

$

$

Not available

38

Cub Cadet 02001873P

Hose Assembly, Drain inlcudes:

$99.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 02001175

Tee Fitting, 1/2

$29.99

$

In Stock, only 2 left!

0

38

Cub Cadet 02002392

Hose Clamp, 1/2

$10.99

$

Usually ships in 3-6 days

0

38

Fuel Hose, .50 ID x .75 OD (36 inches)

$

$

Not available

Cub Cadet 737-04325QT

OIL-RIMULA 15W/40, QUARTS

$14.99

$

In Stock, Qty 8

0
