M48-KH (53AH8CT2050) - Cub Cadet 48" Tank Zero-Turn Mower, 25hp Kohler Kohler CV730-0055 Crankcase Parts Diagram

48" Tank Zero-Turn Mower, 25hp Kohler

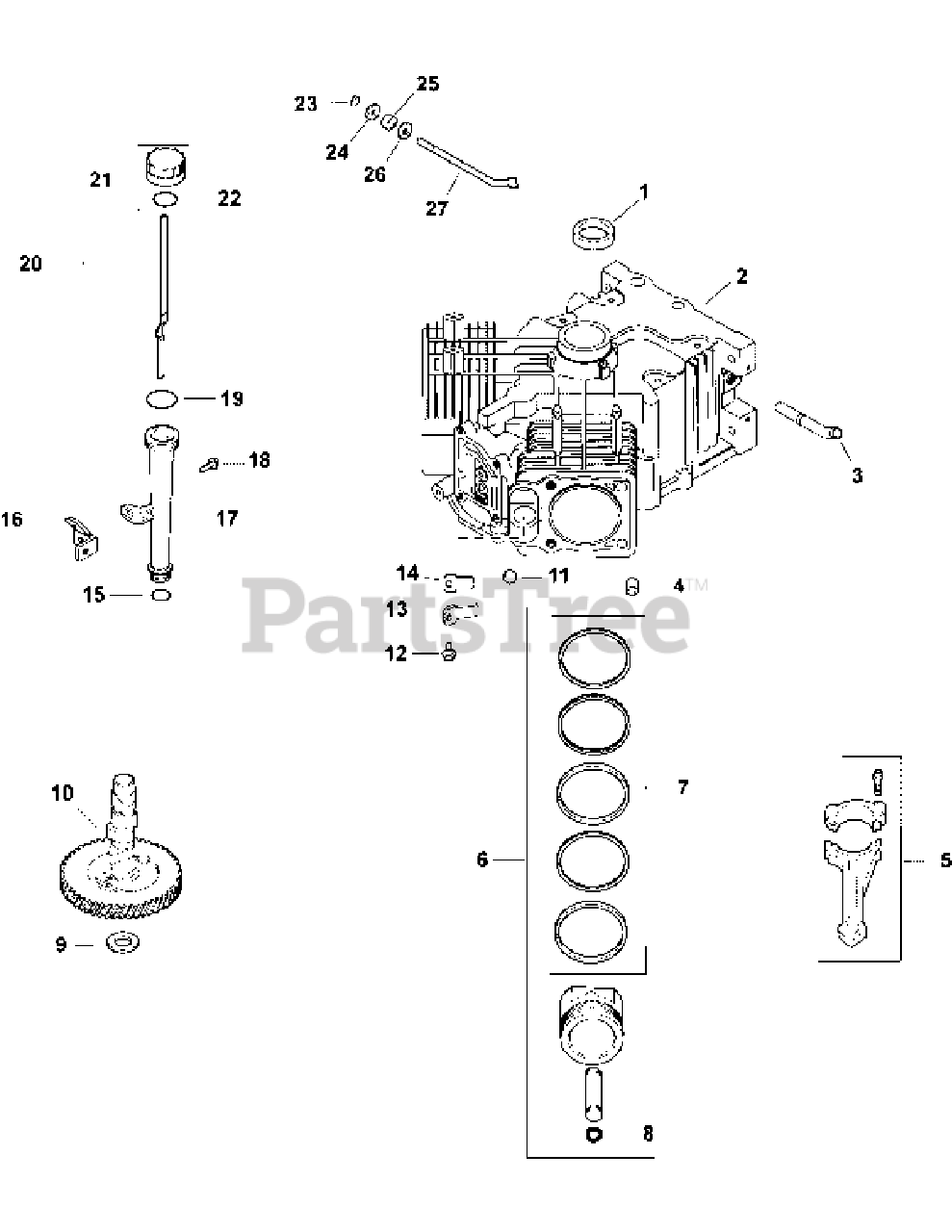

Kohler CV730-0055 Crankcase Parts Diagram

  • Title

1

Cub Cadet KH-24-032-01-S

SEAL, OIL
(Superseded to KH-24-032-19-S)

$9.49

$

In Stock, Qty 20+

0

2

CRANKCASE

Note: (USE; Mini Block or Short Block)

$

$

Not available

3

Cub Cadet KH-24-782-14

CV23-674cc MINI BLOCK

$

$

Not available

3

Cub Cadet KH-24-294-13

FITTING

$

$

Not available

4

Cub Cadet KH-24-380-16-S

PIN, LOCATING

$4.49

$

In Stock, only 3 left!

0

5

Cub Cadet KH-24-067-16-S

USE KH-24-067-24-S CONNECTING ROD
(Superseded to KH-25-067-04-S)

$83.99

$

In Stock, Qty 20+

0

5

Cub Cadet KH-24-067-14-S

USE KH-24-067-17-S CONNECTING ROD
(Superseded to KH-25-067-05-S)

$83.99

$

In Stock, only 1 left!

0

6

Cub Cadet KH-24-874-08-S

USE KH-24-874-26-S KIT
(Superseded to KH-25-874-13-S)

Note: (includes 7,8)

$301.99

$

In Stock, Qty 6

0

6

Cub Cadet KH-24-874-16-S

USE KH-24-874-27-S KIT
(Superseded to KH-25-874-07-S)

$350.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-24-874-20-S

KIT, PISTON W/RING SET (.25)
(Superseded to KH-25-874-16-S)

$282.99

$

In Stock, only 1 left!

0

6

Cub Cadet KH-24-874-21-S

USE KH-24-874-29-S KIT
(Superseded to KH-25-874-17-S)

$280.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-24-108-05-S

USE KH-24-108-15-S RING SET
(Superseded to KH-24-108-15-S)

$113.99

$

In Stock, only 1 left!

0

7

Cub Cadet KH-24-108-06-S

USE KH-24-108-16-S RING SET
(Superseded to KH-24-108-16-S)

$113.99

$

In Stock, only 2 left!

0

7

Cub Cadet KH-24-108-07-S

RING SET (.50)
(Superseded to KH-24-108-17-S)

$

$

Not available

8

Cub Cadet KH-24-018-01-S

RETAINER, PISTON PIN

$3.49

$

In Stock, Qty 14

0

9

Cub Cadet KH-12-422-07-S

SHIM, CAMSHAFT (WHITE .028")

$4.49

$

In Stock, only 2 left!

0

9

Cub Cadet KH-12-422-08-S

SHIM, CAMSHAFT (BLUE .03")

$2.49

$

In Stock, only 2 left!

0

9

Cub Cadet KH-12-422-09-S

SHIM, CAMSHAFT (RED .032")

$2.49

$

In Stock, only 1 left!

0

9

Cub Cadet KH-12-422-10-S

SHIM, CAMSHAFT (YELLOW .034")

$2.49

$

In Stock, Qty 11

0

9

Cub Cadet KH-12-422-11-S

SHIM, CAMSHAFT (GREEN .036")

$2.49

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-12-422-12-S

SHIM, CAMSHAFT (GRAY .038")

$2.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-12-422-13-S

SHIM, CAMSHAFT (BLACK .04")

$2.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-24-012-16-S

CAMSHAFT
(Superseded to KH-24-012-25-S)

$

$

Not available

11

Cub Cadet KH-52-139-09-S

PLUG, CUP

$4.99

$

In Stock, Qty 10

0

12

Cub Cadet KH-M-545010-S

SCREW, FLG THD FRM M5X.8X10

$

$

Currently unavailable

13

Cub Cadet KH-24-018-04-S

RETAINER, BREATHER REED

$2.49

$

In Stock, Qty 20+

0

14

Cub Cadet KH-24-402-05-S

REED, BREATHER
(Superseded to KH-24-402-07-S)

$4.49

$

Usually ships in 3-6 days

0

15

Cub Cadet KH-12-153-01-S

O-RING, LOWER OIL FILL TUBE

$6.99

$

In Stock, Qty 20+

0

16

Cub Cadet KH-24-126-19

BRACKET, OIL FILL TUBE
(Superseded to KH-24-126-243-S)

$11.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-12-123-04

KIT, OIL FILL TUBE - USE 12 123 35-S
(Superseded to KH-32-755-04-S)

$

$

Not available

18

Cub Cadet KH-M-545016-S

SCREW, FLG THD FRM M5X.8X16
(Superseded to KH-25-086-398-S)

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet KH-12-153-02-S

O-RING, UPPER OIL FILL TUBE

$3.49

$

In Stock, Qty 20+

0

20

Cub Cadet KH-24-038-04-S

DIPSTICK, ASSY

Note: (Includes 21,22)

$21.99

$

In Stock, only 3 left!

0

21

Cub Cadet KH-24-755-46

KIT, OIL FILL CAP (YELLOW)

Note: (Includes 22)

$

$

Not available

22

Cub Cadet KH-25-153-02-S

O-RING, DIPSTICK

$3.49

$

In Stock, Qty 17

0

23

Cub Cadet KH-24-018-09-S

RETAINER, RING

$2.49

$

In Stock, Qty 19

0

24

Cub Cadet KH-M-931010-S

WASHER, FLAT 9 MM

$2.49

$

In Stock, Qty 7

0

25

Cub Cadet KH-28-032-09-S

SEAL, GOVERNOR CROSS SHAFT

$4.49

$

In Stock, Qty 8

0

26

Cub Cadet KH-24-468-15-S

WASHER, FLAT 11/32"

$2.49

$

In Stock, only 1 left!

0

27

Cub Cadet KH-24-144-38-S

SHAFT, GOVERNOR CROSS
(Superseded to KH-24-144-39-S)

$58.99

$

Usually ships in 2-5 days

0
