M48-KHS (53AB5B5M150) - Cub Cadet 48" Tank Zero-Turn Mower, 18hp Kohler Stamped Deck Parts Diagram

48" Tank Zero-Turn Mower, 18hp Kohler

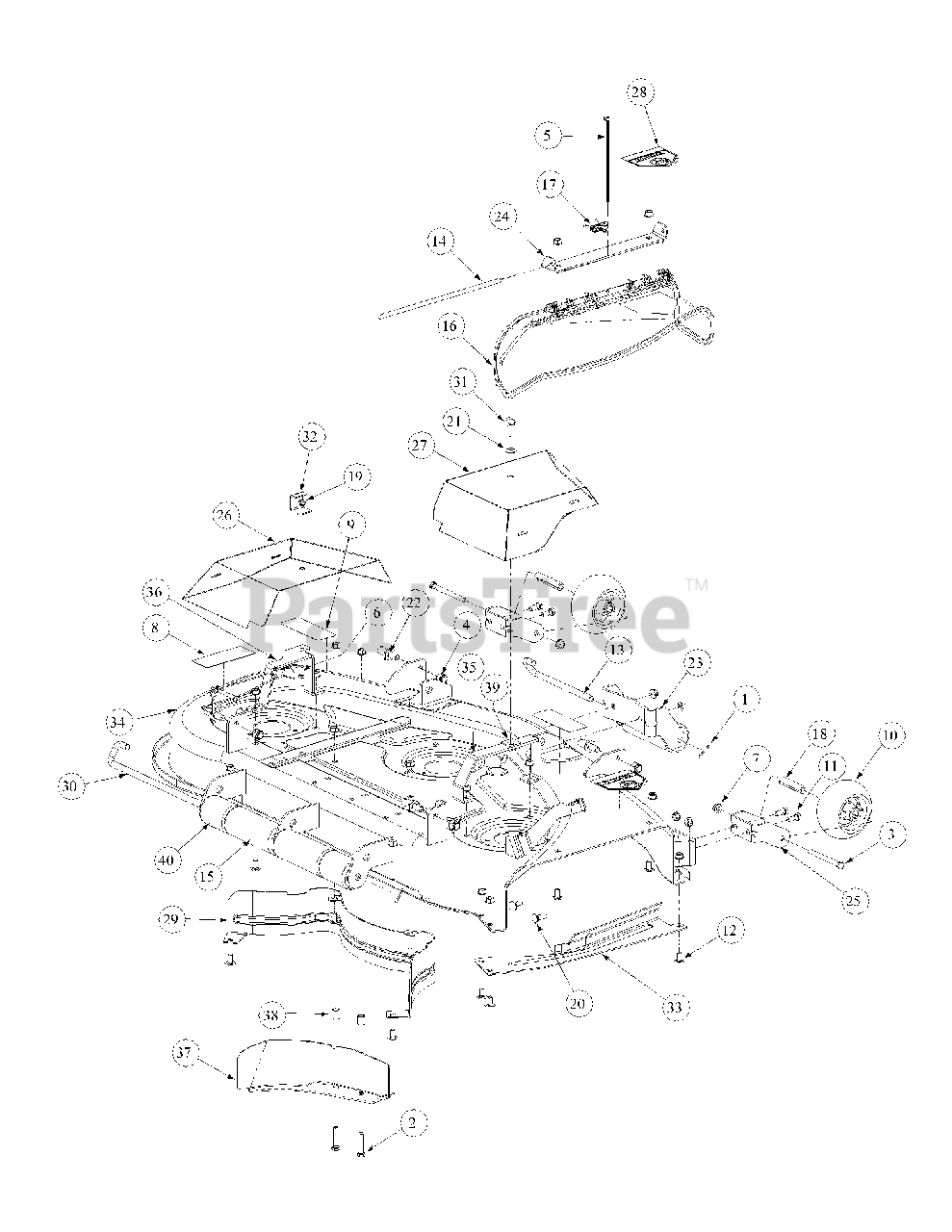

Stamped Deck Parts Diagram

  • Title

1

Cub Cadet 00003107

Cotter Pin, .125 Dia x 1.0
(Superseded to 914-0115)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 00008495

Capscrew, 3/8-16 x 1-3/4

$7.49

$

In Stock, Qty 6

0

3

Cub Cadet 00011925

Hex Cap Screw, 3/8-16, 3.75
(Superseded to 710-0411)

$8.99

$

In Stock, Qty 20+

0

4

Cub Cadet 00012428

Lock Nut, Nylon Insert, 1/2-13

$7.49

$

In Stock, only 2 left!

0

5

Cub Cadet 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 00013406

Hex Cap Screw, 5/16 -18 x 3/4
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 00022560

Hex Nut Flange Lock, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 00030633

Decal, Rotating Blade

$

$

Not available

9

Cub Cadet 00030635

Decal, Warning Shield Missing
(Superseded to 777S33782)

$8.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 634-3159

Wheel, 5.00 Dia

$36.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3001

Hex Cap Screw, 3/8-16 x .88 Lg

$7.49

$

In Stock, Qty 5

0

12

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75 Lg

$4.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 911-3314

Roller Pin, 1/2 Dia x 7.31 Lg
(Superseded to 711-3314A)

$27.99

$

In Stock, Qty 20+

0

14

Cub Cadet 01009102

Hinge Pin, .375 x 14.06
(Superseded to 711-1762)

$19.99

$

In Stock, only 4 left!

0

15

Cub Cadet 731-3005

Front and Rear Roller

$30.99

$

In Stock, Qty 20+

0

16

Cub Cadet 931-3131A

Deflector Chute

$114.99

$

In Stock, only 3 left!

0

17

Cub Cadet 732-3070A

Torsion Spring

$12.99

$

In Stock, only 2 left!

0

18

Cub Cadet 750-3193

Spacer Wheel

$19.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-3004A

Hex Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1

$5.99

$

In Stock, only 4 left!

0

21

Cub Cadet 936-0425

Belle Washer, .325 x .930 x .045
(Superseded to 736-0425)

$

$

Not available

22

Cub Cadet 01001745

Pin, 5/8 Dia x 1.2 Lg
(Superseded to 711-05604)

$11.99

$

In Stock, Qty 11

0

23

Cub Cadet 703-2091A-0637

Front Roller Bracket

$76.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 01007393

Chute Mounting Bracket

$

$

Not available

25

Cub Cadet 703-2410-0637

Castor Bracket

$

$

Not available

26

Cub Cadet 01007395

48" Left Hand Belt Cover

$

$

Not available

27

Cub Cadet 01007396

48" Right Hand Belt Cover

$

$

Not available

28

Cub Cadet 01002166

Decal, Danger Hands and Feet

$12.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 01007397

48" Right Rear Inner Baffle
(Superseded to 703-2161-0637)

$117.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 02002798

Roller Pin Rod

$84.99

$

In Stock, only 1 left!

0

31

Cub Cadet 01003560

Thumb Screw, 5/16-18 x 1.0 Lg
(Superseded to 710-3232)

$10.99

$

In Stock, Qty 5

0

32

Cub Cadet 01004109

Tension Rod Stop Bracket

$12.99

$

In Stock, only 1 left!

0

33

Cub Cadet 01007398

Finger Guard
(Superseded to 703-3511B-0637)

$74.99

$

In Stock, Qty 20+

0

34

Cub Cadet 01007399

48" Stamped Deck

$

$

Not available

35

Cub Cadet 01007354

48" Right Hand Belt Cover Support Bracket

$

$

Not available

36

Cub Cadet 01007355

48" Left Hand Belt Cover Support Bracket

$22.99

$

In Stock, only 1 left!

0

37

Cub Cadet 01007356

48" Deck Baffle

$

$

Not available

38

Cub Cadet 750-0639

Spacer, .385 ID x .75 OD x .875

$3.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 01003563

U-Nut, 5/16-18
(Superseded to 926-0211)

$4.99

$

In Stock, only 2 left!

0

40

Cub Cadet 01001169

Short Roller

$25.99

$

In Stock, Qty 15

0
