M48-KW (53AB5DAV150) - Cub Cadet 48" Tank Zero-Turn Mower, 19hp Kawasaki Seat Assembly Parts Diagram

48" Tank Zero-Turn Mower, 19hp Kawasaki

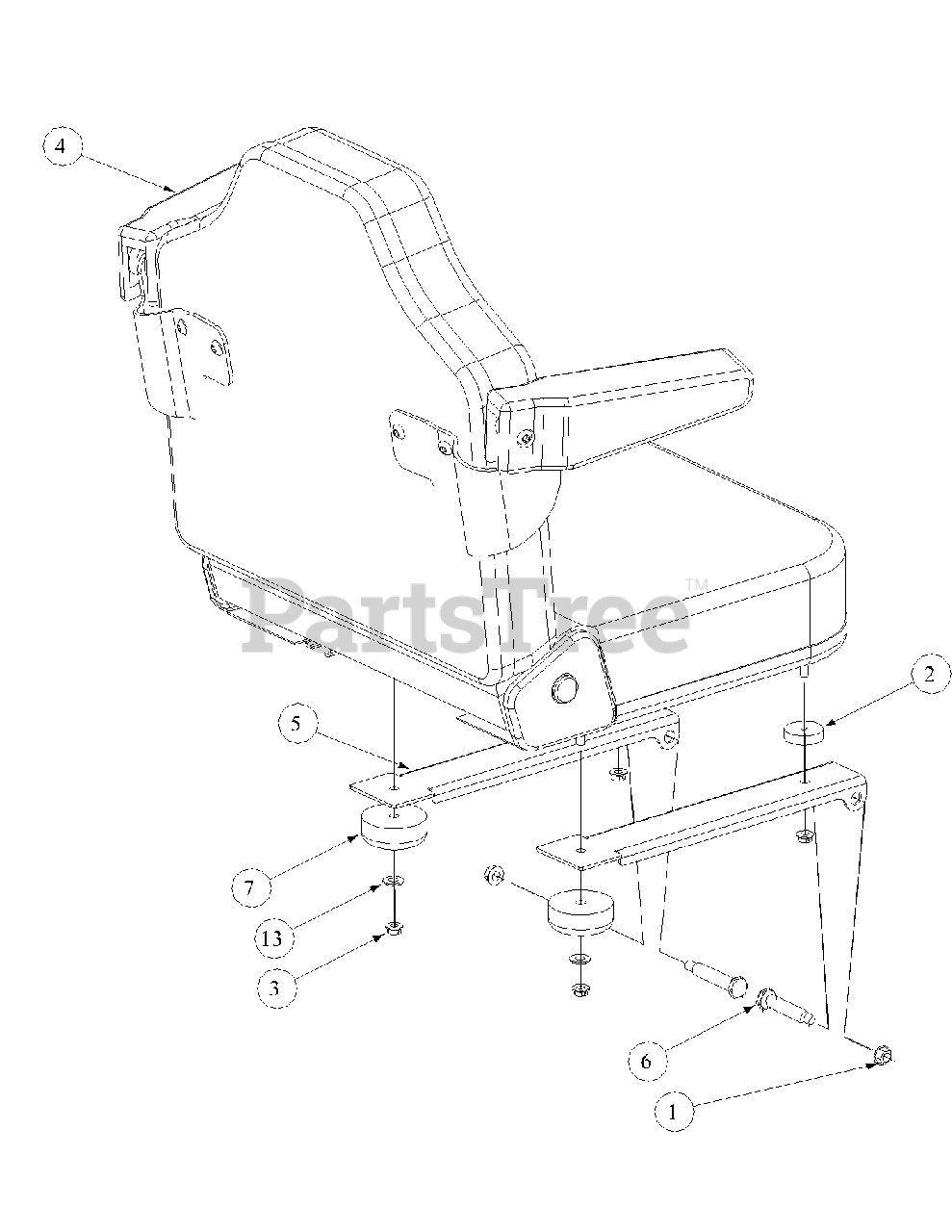

Seat Assembly Parts Diagram

  • Title

1

Cub Cadet 00022560

Nut, Hex 3/8-16 Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 01000937

Spacer, 0.345 ID x 1.50 OD x .41

$

$

Not available

3

Cub Cadet 712-3004A

Lock Nut, Hex Flange, 5/16-18

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 01010115

Adjustable Seat, Black CCC, w/switch

$

$

Not available

5

Cub Cadet 01002633-0637

Mounting Bracket, Seat

$48.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 01002634

Shoulder Screw, .50x2.345, 3/8-16

$27.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 01002753

Grommet, 2.5 OD x 1.0 Long
(Superseded to 735-04286)

$9.49

$

In Stock, only 2 left!

0

13

Cub Cadet 736-3052

Washer

$4.99

$

In Stock, Qty 20+

0
