M48-KW (53AI8CTV750) - Cub Cadet 48" Tank Zero-Turn Mower, 23hp Kawasaki Fabricated Deck Spindle Assembly Parts Diagram

48" Tank Zero-Turn Mower, 23hp Kawasaki

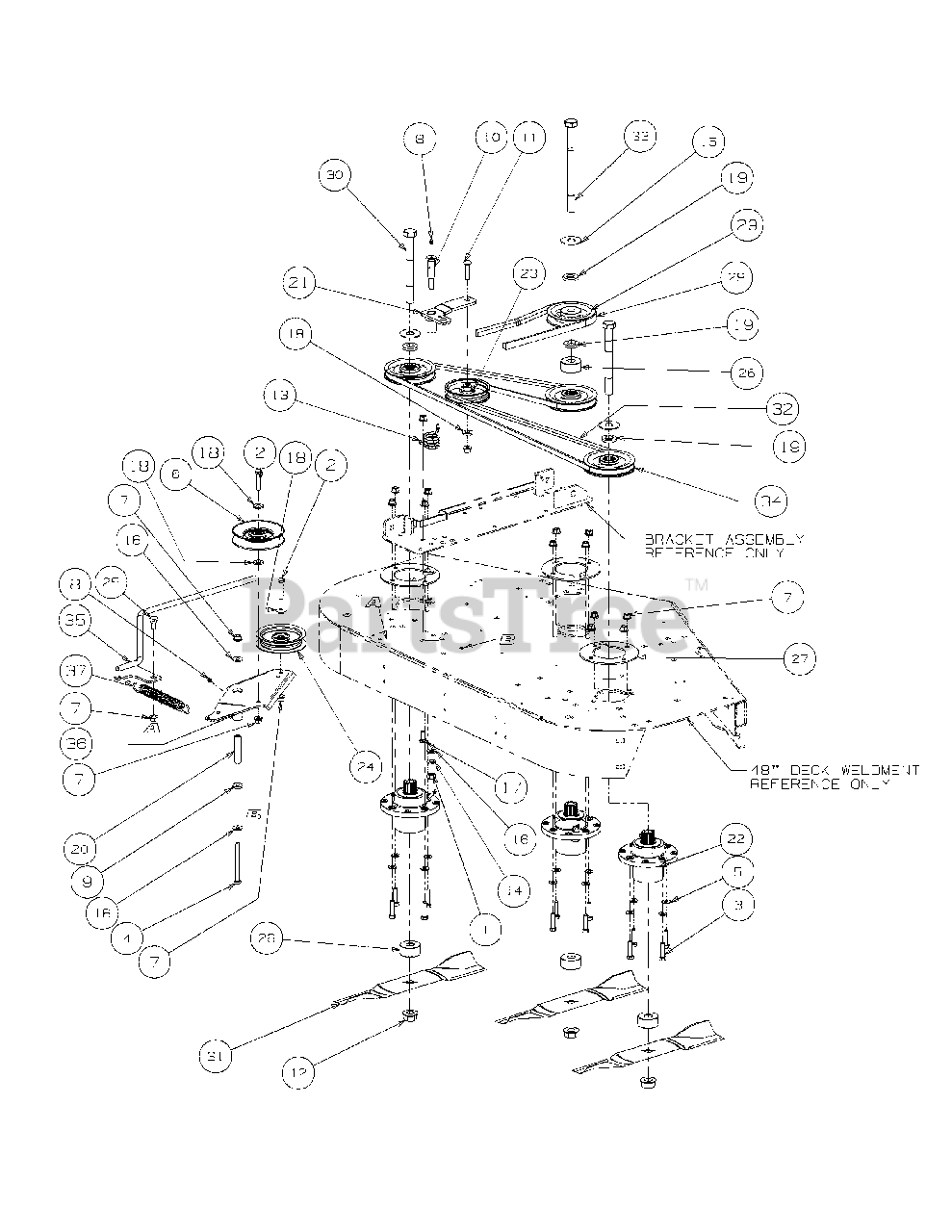

Fabricated Deck Spindle Assembly Parts Diagram

  • Title

1

Cub Cadet 912-3019

Hex Nut, 7/16-14
(Superseded to 712-3019)

$6.49

$

In Stock, only 2 left!

0

2

Cub Cadet 00008495

Hex Cap Screw, 3/8-16 x 1-1/4

$6.49

$

In Stock, Qty 9

0

3

Cub Cadet 00011438

Hex Cap Screw, 3/8-16 x 1-1/2
(Superseded to 710-06021)

$3.49

$

In Stock, only 2 left!

0

4

Cub Cadet 00011925

Hex Cap Screw, 3/8-16, 4.00
(Superseded to 710-0411)

$7.99

$

In Stock, Qty 20+

0

5

Cub Cadet 00012158

Flat Washer, 3/8

$4.49

$

In Stock, Qty 10

0

6

Cub Cadet 756-04522

Idler Pulley, 5.06 Dia.

$36.99

$

In Stock, Qty 17

0

7

Cub Cadet 00022560

Hex Nut, Flange Lock, 3/8-16
(Superseded to 712-05007)

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.49

$

In Stock, Qty 16

0

9

Cub Cadet 00083192

Idler Washer
(Superseded to 736-0258)

$4.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 01000302

Shoulder Screw, 7/16-14
(Superseded to 738-3102)

$19.99

$

In Stock, Qty 12

0

11

Cub Cadet 710-0560

Hex Carriage Screw, 3/8-16, 1.75

$6.49

$

In Stock, Qty 17

0

12

Cub Cadet 712-3078

Hex Flange Nut, 3/4-16

$9.49

$

In Stock, Qty 20+

0

13

Cub Cadet 932-3009

Torsion Idler Spring

$22.99

$

In Stock, Qty 20+

0

14

Cub Cadet 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 736-3014

Flat Washer, .781 ID, 2.00 OD, .105

$4.49

$

In Stock, Qty 19

0

16

Cub Cadet 936-3015

Flat Washer, .469 ID, .875 OD, .105

$3.99

$

In Stock, only 3 left!

0

17

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1

$5.49

$

In Stock, Qty 9

0

18

Cub Cadet 736-3052

Flat Washer, .406 ID, 1.0 OD, .105

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 01003123

Spacer, .812 ID x .218 LG
(Superseded to 750-05553)

$9.49

$

In Stock, Qty 20+

0

20

Cub Cadet 01003245

Spacer, .39 ID x .625 OD x 2.75

$17.99

$

In Stock, only 1 left!

0

21

Cub Cadet 01005737

Idler Arm Assembly, Deck Spindle includes:

$101.99

$

In Stock, Qty 6

0

21

Cub Cadet 01000308

Bearing
(Superseded to 741-04555)

Note: (not shown)

$15.99

$

In Stock, Qty 10

0

22

Cub Cadet 01003532P

Aluminum Spindle Assembly
(Superseded to 918-05125)

$331.99

$

In Stock, Qty 6

0

23

Cub Cadet 02005077

Flat Pulley

$33.99

$

In Stock, Qty 20+

0

24

Cub Cadet 02004447

PULLEY-FLAT IDLER 4.875

$53.99

$

In Stock, Qty 20+

0

25

Cub Cadet 01004118

Shoulder Screw, .50 x .27 Lg., 3/8-16
(Superseded to 938-0380)

$7.49

$

In Stock, Qty 16

0

26

Cub Cadet 01004415

Spacer, .760 ID x 2.000 OD x 1.1

$37.99

$

In Stock, only 3 left!

0

27

Cub Cadet 01004478-0637

Spindle, Aluminum Cast Support Plate
(Superseded to 703-08898)

$39.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 01005011

V-Belt, B Section x 83.2
(Superseded to 01005011P)

$96.99

$

In Stock, Qty 20+

0

29

Cub Cadet 01005202

V-Pulley, 4.75 OD

$117.99

$

In Stock, only 1 left!

0

30

Cub Cadet 01005213

Hex Cap Screw, 3/4-16, 7.00
(Superseded to 710-05387)

$13.99

$

In Stock, Qty 19

0

31

Cub Cadet 02005017

Blade, 17.0, Hi-Lift, 0.756 ID
(Superseded to 942-04417)

$28.99

$

In Stock, Qty 20+

0

32

Cub Cadet 01005374

V-Belt, A Section x 105.3
(Superseded to 01005374P)

$68.99

$

In Stock, Qty 20+

0

33

Cub Cadet 01005388

Hex Cap Screw, 3/4-16, 9.00
(Superseded to 710-05388)

$29.99

$

In Stock, Qty 20+

0

34

Cub Cadet 01005616

V-Pulley, 5.00 OD

$

$

Not available

35

Cub Cadet 01005690

Spring Tension Rod Assembly

$103.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 02003759

Idler Arm Assembly Service Kit

$168.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 01000308

Bearing for idler arm
(Superseded to 741-04555)

$15.99

$

In Stock, Qty 10

0

37

Cub Cadet 02003712

Spring Extension, .94 OD x 7.57
(Superseded to 732-04960)

$13.99

$

In Stock, Qty 5

0

Cub Cadet 777I23639

Label, Belt Routing

Note: (not shown)

$6.99

$

Usually ships in 3-6 days

0
