M48-KWS (53AB5D4M100) - Cub Cadet 48" Tank Zero-Turn Mower, Kawasaki Air Filter / Exhaust Parts Diagram

48" Tank Zero-Turn Mower, Kawasaki

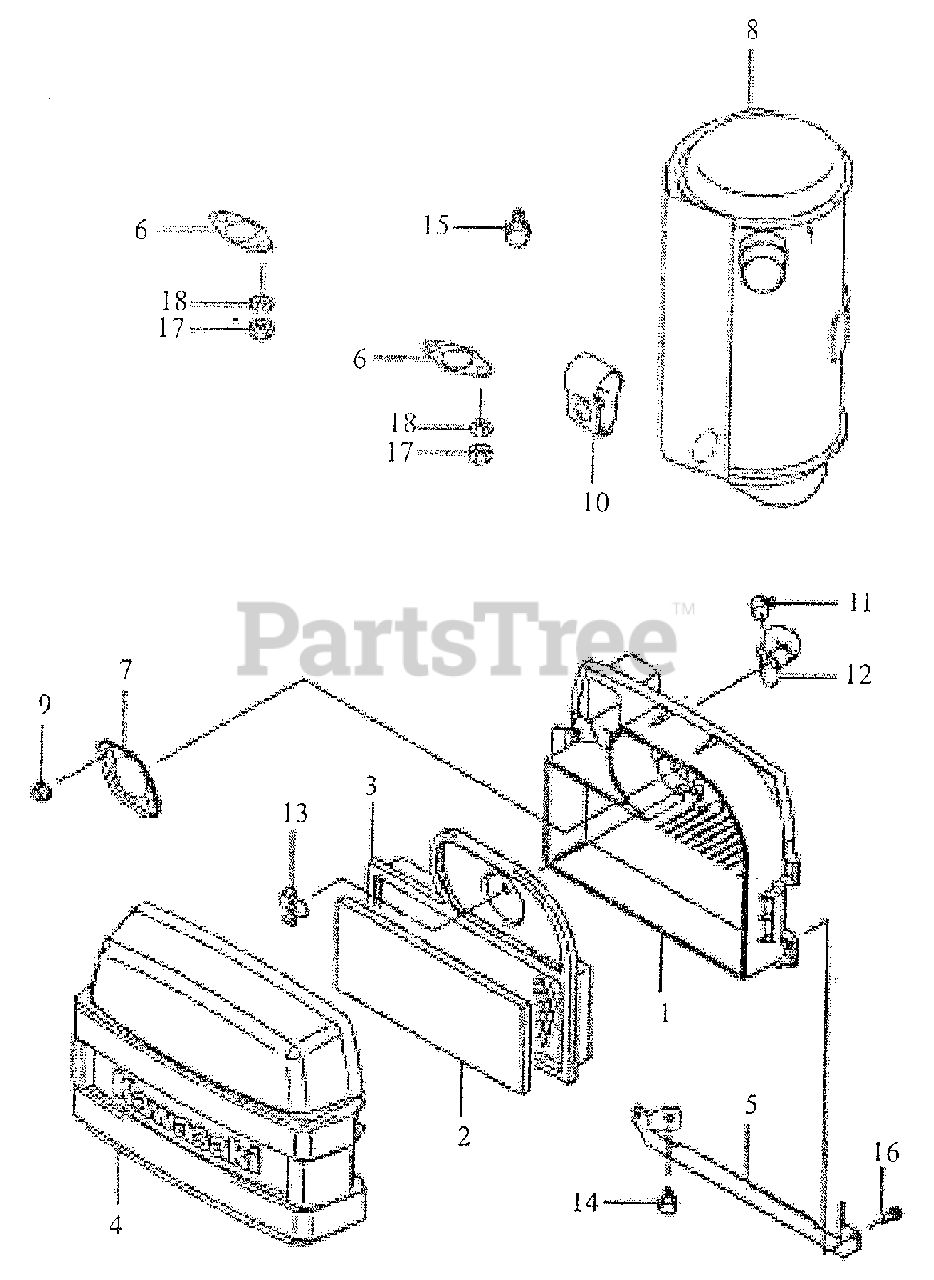

Air Filter / Exhaust Parts Diagram

  • Title

1

Cub Cadet KM-11011-7001

Case, Air Filter
(Superseded to KM-11038-7006)

$71.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KM-11013-7001

Element, Air Pre Filter
(Superseded to KM-11013-7033)

$10.99

$

In Stock, Qty 20+

0

3

Cub Cadet KM-11013-7002

Element, Air Filter

$21.99

$

In Stock, Qty 20+

0

4

Cub Cadet KM-11038-7001

Cover, Air Filter
(Superseded to KM-11038-7013)

$67.99

$

In Stock, Qty 6

0

Cub Cadet KM-27012-7001

Hook, Air Filter Cover
(Superseded to KM-27012-6003)

Note: N/S

$2.99

$

In Stock, Qty 20+

0

Cub Cadet KM-59071-7001

Joint
(Superseded to KM-27012-6003)

Note: N/S

$2.99

$

In Stock, Qty 20+

0

5

Cub Cadet KM-11050-7006

Bracket

$9.49

$

Usually ships in 2-5 days

0

6

Cub Cadet KM-11060-7021

Gasket, Muffler

$2.49

$

In Stock, Qty 20+

0

7

Cub Cadet KM-13270-7001

Plate

$5.49

$

In Stock, only 1 left!

0

8

Refer To Page 114

$

$

Not available

9

Cub Cadet KM-92015-1193

Nut
(Superseded to KM-92015-1367)

$4.49

$

In Stock, Qty 20+

0

10

Refer To Page 114

$

$

Not available

11

Cub Cadet KM-92170-7003

Clamp

$1.49

$

In Stock, Qty 20+

0

12

Cub Cadet KM-92191-7001

Tube

$

$

Not available

13

Cub Cadet KM-92210-7004

Nut

$3.49

$

In Stock, Qty 20+

0

14

Cub Cadet KM-130G0612

Bolt, Flange
(Superseded to KM-130BA0612)

$1.99

$

In Stock, Qty 20+

0

15

Refer To Page 114

$

$

Not available

16

Cub Cadet KM-232B0514

Screw
(Superseded to KM-232AA0514)

$0.99

$

In Stock, Qty 19

0

17

Cub Cadet KM-317R0800

Nut, Hex

$2.99

$

In Stock, Qty 20+

0

18

Cub Cadet KM-461F0800

Washer, Spring
(Superseded to KM-461DA0800)

$0.99

$

In Stock, Qty 20+

0
