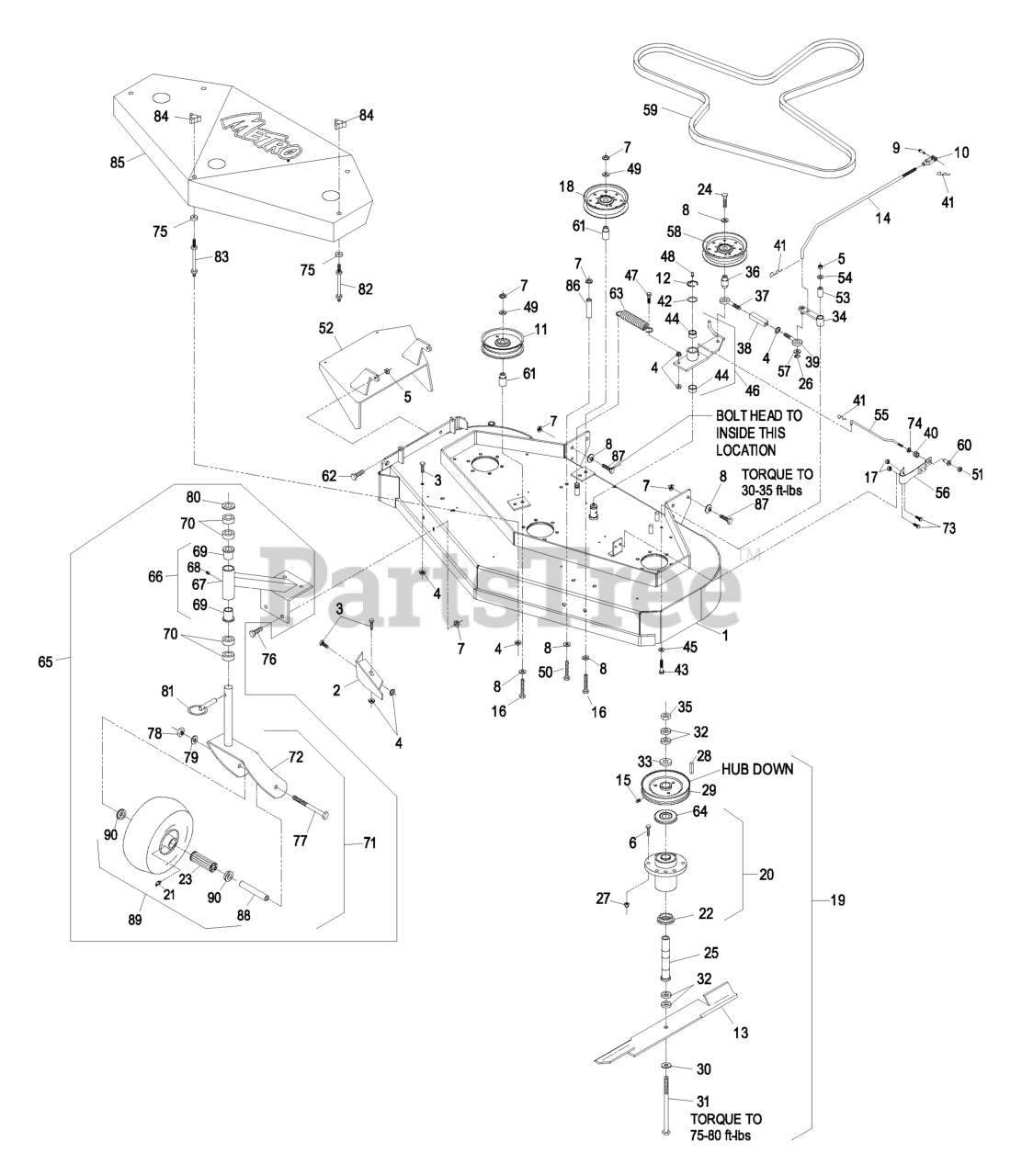

Exmark M4815KCC - Exmark 48" Metro Walk-Behind Mower, 15hp Kohler (SN: 600000 - 669999) (2006) Mower Deck 48" Parts Lookup with Diagrams

1

Exmark 109-2601

1-404257

(Superseded to 1-404257) 

$2899.99

$

Usually ships in 3-6 days

2

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

9

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

10

Exmark 1-303105

YOKE-ADJUSTABLE

$13.99

$

In Stock, only 4 left!

11

Exmark 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 20+

13

Exmark 103-6583

103-6583-S

(Superseded to 103-6583-S) 

$34.99

$

In Stock, Qty 9

Exmark 103-6581

103-6581-S

(Superseded to 103-6581-S) 

Note: Requires installation of Micro-Mulch accessory for proper mulching Mulch kit P/N's MK483.

$36.99

$

In Stock, Qty 20+

Exmark 103-2507

103-6738-S

(Superseded to 103-6738-S) 

$37.99

$

In Stock, only 4 left!

Exmark 103-1577

103-1577-S

(Superseded to 103-1577-S) 

$44.99

$

In Stock, only 3 left!

Exmark 103-6336

116-5178-S

(Superseded to 116-5178-S) 

$38.99

$

In Stock, only 3 left!

14

Exmark 1-323303

ARM-ASSIST, LINKAGE

$27.99

$

In Stock, only 2 left!

15

Exmark 1-803310

SCREW-SET

Note: Use Pro-lock Nut Type (p/n 1-840022 .5 ml tube) on the setscrews.

$2.99

$

Usually ships in 3-6 days

16

Exmark 1-403186

126-9187

(Superseded to 126-9187) 

$63.99

$

In Stock, Qty 5

19

Exmark 103-8387

ASM, CUTTER HOUSING OUTER

$631.99

$

Usually ships in 3-6 days

20

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard DO NOT use a copper or nickel based anti-sieze.

$290.99

$

In Stock, only 2 left!

21

Exmark 302-61

FITTING-GREASE

$12.99

$

In Stock, only 2 left!

22

Exmark 103-2535

SPACER-GUARD, BOTTOM

$13.99

$

In Stock, only 4 left!

23

Exmark 1-513809

BEARING

$38.99

$

In Stock, Qty 17

24

Exmark 702809

SCREW-HH

$5.49

$

In Stock, only 2 left!

25

Exmark 1-323529

TUBE-SPINDLE, SHORT

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$94.99

$

In Stock, only 3 left!

26

Exmark 32120-35

RING-RETAINING, EXT

$4.49

$

In Stock, only 4 left!

27

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

28

Exmark 1-807267

KEY

$2.99

$

In Stock, Qty 16

29

Exmark 1-403183

SHEAVE

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$74.99

$

In Stock, only 2 left!

30

Exmark 1-513208

WASHER-SPRING

$9.99

$

In Stock, Qty 8

31

Exmark 1-800861

SCREW-CAP, HH

$20.99

$

In Stock, Qty 10

32

Exmark 1-323539

SPACER

$2.49

$

In Stock, Qty 20+

33

Exmark 1-323339

WASHER-RETAINER, SHEAVE

$5.49

$

In Stock, only 3 left!

34

Exmark 1-322235

$141.99

$

Usually ships in 3-6 days

47

Exmark 322-6

$2.49

$

In Stock, Qty 20+

58

Exmark 1-603843

132-4718

(Superseded to 132-4718) 

$35.99

$

In Stock, Qty 12

59

Exmark 1-403174

BELT,BLADE 48

(Superseded to 1-403174-SL) 

$100.99

$

In Stock, Qty 20+

60

Exmark 1-323746

SPACER-FLANGED

$1.49

$

In Stock, Qty 13

61

Exmark 1-403184

1-413113

(Superseded to 1-413113) 

$6.49

$

In Stock, Qty 20+

62

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

63

Exmark 1-323071

SPRING-EXTENSION

$17.99

$

In Stock, Qty 20+

64

Exmark 103-1330

GUARD-BEARING, TOP

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-sieze

$5.99

$

In Stock, Qty 20+
