M4815KCC - Exmark 48" Metro Walk-Behind Mower, 15HP Kohler (SN: 600000 - 669999) (2006)

48" Metro Walk-Behind Mower, 15HP Kohler

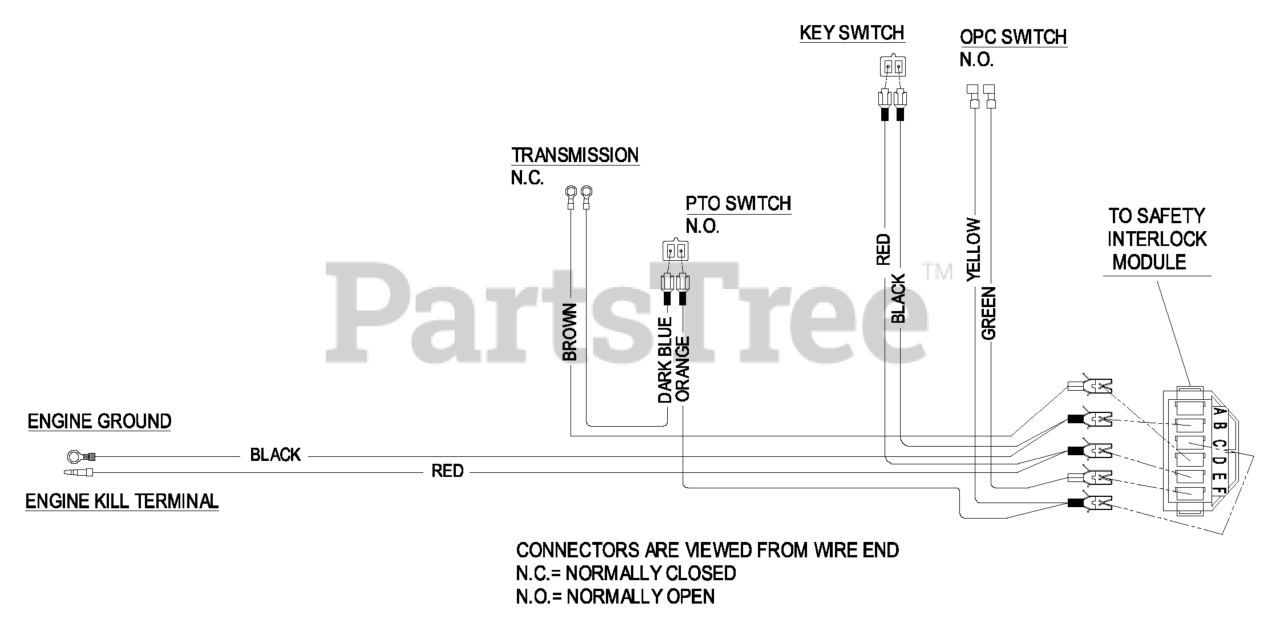

M4815KCC - Exmark 48" Metro Walk-Behind Mower, 15HP Kohler (SN: 600000 - 669999) (2006) > Parts Diagrams (8) > Wiring Diagrams

  • Title
