M50-KHS (53BB5BBP750) - Cub Cadet 50" Tank Zero-Turn Mower, 23hp Kohler Front Caster Assembly Parts Diagram

50" Tank Zero-Turn Mower, 23hp Kohler

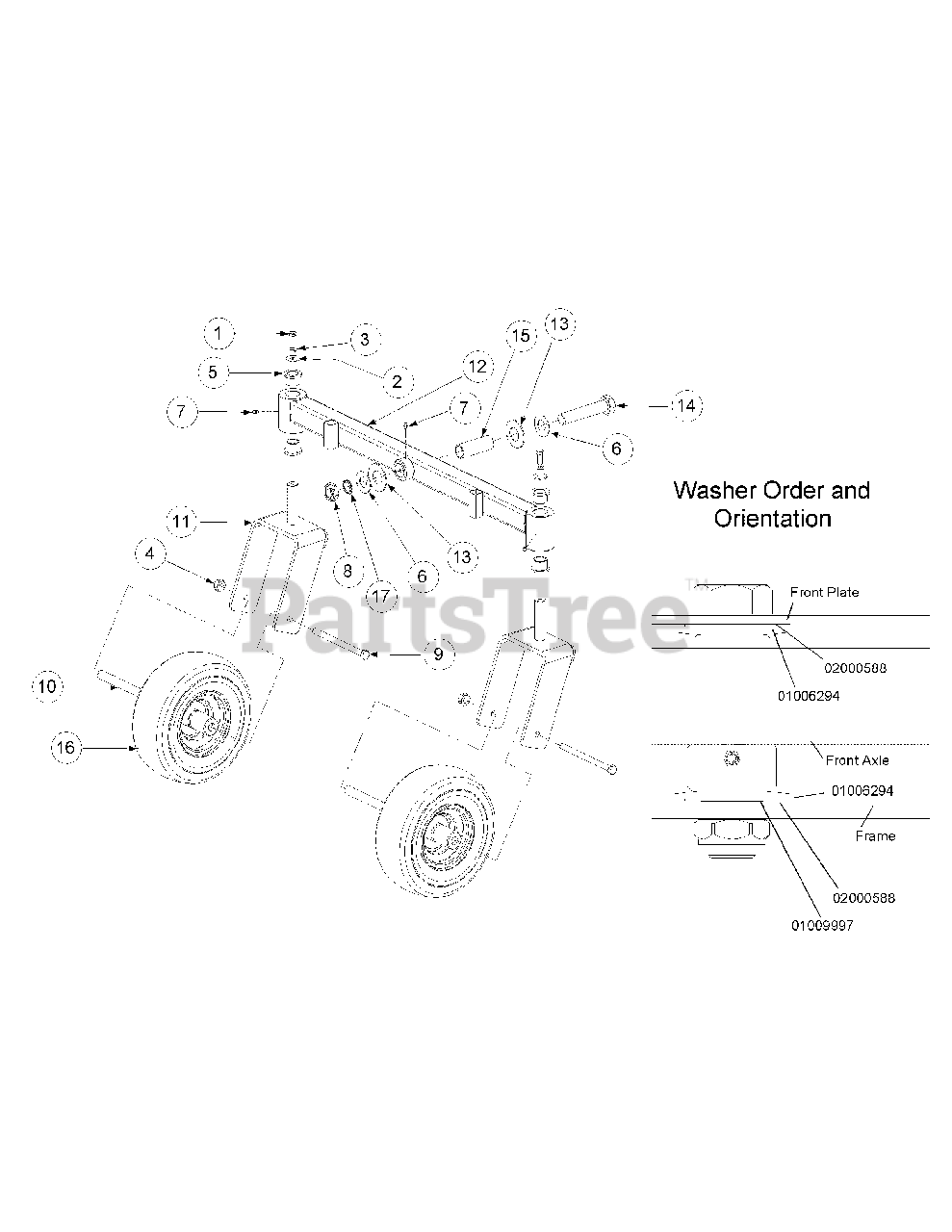

Front Caster Assembly Parts Diagram

  • Title

1

Cub Cadet 00006144

Hex Cap Screw, 3/8-16, x 1

$6.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 936-0133

Flat Washer, .411 x 1.25 x 1.00
(Superseded to 736-0133)

$

$

Not available

3

Cub Cadet 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

4

Cub Cadet 00023287

Center Lock Nut, 1/2-20
(Superseded to 712-0239)

$

$

Not available

5

Cub Cadet 00023793

Flange Bearing, 1.013

$14.99

$

In Stock, Qty 11

0

6

Cub Cadet 02000588

Flat Washer, 1.00 ID x 2.00 OD x .075
(Superseded to 736-04605)

$3.99

$

In Stock, Qty 8

0

7

Cub Cadet 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.49

$

In Stock, Qty 16

0

8

Cub Cadet 01000678

Jam Lock Nut, 1.0-14
(Superseded to 712-05008)

$13.99

$

In Stock, Qty 5

0

9

Cub Cadet 02002154

Hex Cap Screw, 1/2-20 x 7.25

$

$

Not available

10

Cub Cadet 02002153

Spacer, .51 ID x .75 OD x 5.925 Lg

$13.99

$

In Stock, only 2 left!

0

11

Cub Cadet 01006207-0637

Caster Wheel Bracket Assembly

$128.99

$

In Stock, only 1 left!

0

12

Cub Cadet 02000570

Narrow Front Axle Assembly

$

$

Not available

13

Cub Cadet 01006294

Belle Washer, 1.25 ID x 2.500 OD x .1
(Superseded to 736-04604)

$7.99

$

In Stock, Qty 13

0

14

Cub Cadet 01006309

Hex Cap Screw, 1-14 x 5.0

$28.99

$

In Stock, only 4 left!

0

15

Cub Cadet 02000589

Spacer, 1.005 ID x 1.25 OD x 3.6

$29.99

$

In Stock, only 3 left!

0

16

Cub Cadet 02001562

Wheel Assembly, 11 x 4-5.00 includes:

$188.99

$

In Stock, only 1 left!

0

16

Cub Cadet 02002098

Tire

Note: (not shown)

$78.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 02002099

Roller Bearing

Note: (not shown)

$21.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 02002100

Roller Bearing

Note: (not shown)

$20.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 02002101

Retainer Bushing

Note: (not shown)

$

$

Not available

17

Cub Cadet 01009997

Retainer Extension, Self Locking
(Superseded to 716-04191)

$3.99

$

In Stock, Qty 8

0
