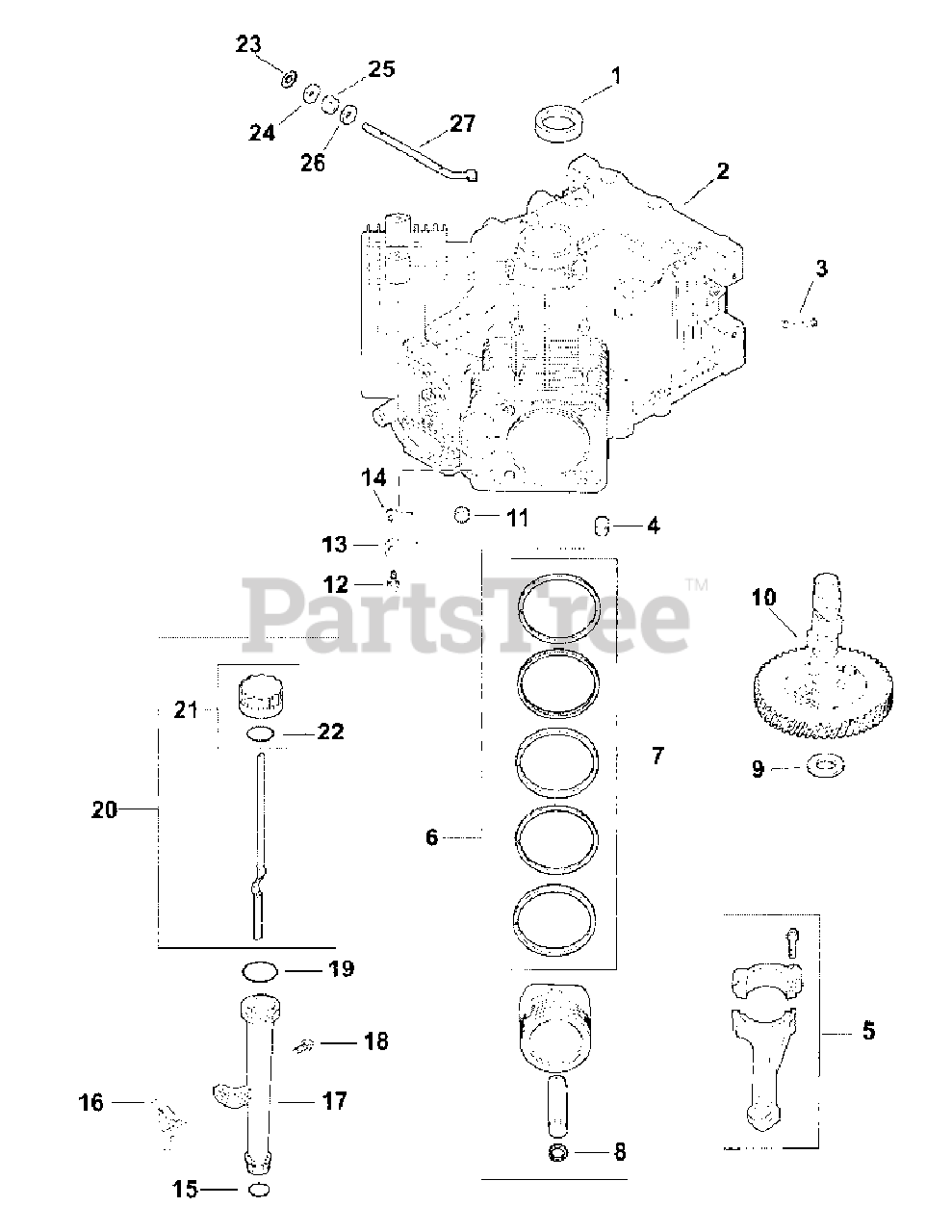

M54-KH (53BB5B8W750) - Cub Cadet 54" Tank Zero-Turn Mower, 25hp Kohler CV730-0025 Crankcase Parts Diagram

54" Tank Zero-Turn Mower, 25hp Kohler

CV730-0025 Crankcase Parts Diagram

  • Title

1

Cub Cadet KH-24-032-19-S

Front Oil Seal

$7.49

$

In Stock, Qty 20+

0

2

Crankcase

$

$

Not available

3

Cub Cadet KH-24-294-13

Fitting

$

$

Not available

4

Cub Cadet KH-24-380-16-S

Locating Pin

$4.49

$

In Stock, Qty 8

0

5

Cub Cadet KH-24-067-30-S

Connecting Rod (Std.)
(Superseded to KH-25-067-04-S)

$59.99

$

In Stock, Qty 11

0

5

Cub Cadet KH-24-067-14

Connecting Rod (.25)

Note: NLA

$

$

Not available

6

Cub Cadet KH-25-874-01-S

Piston w/Ring Set (Std.)
(Superseded to KH-25-874-13-S)

$269.99

$

In Stock, only 3 left!

0

6

Cub Cadet KH-25-874-02-S

Piston w/Ring Set (.08)
(Superseded to KH-25-874-07-S)

$261.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-25-874-03-S

Piston w/Ring Set (.25)
(Superseded to KH-25-874-16-S)

$261.99

$

In Stock, only 1 left!

0

6

Cub Cadet KH-25-874-04-S

Piston w/Ring Set (.50)
(Superseded to KH-25-874-17-S)

$261.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-24-108-15-S

Ring Set (Std. & .08)

$102.99

$

In Stock, only 3 left!

0

7

Cub Cadet KH-24-108-16-S

Ring Set (.25)

$102.99

$

In Stock, only 2 left!

0

7

Cub Cadet KH-24-108-07-S

Ring Set (.50)
(Superseded to KH-24-108-17-S)

$

$

Not available

8

Cub Cadet KH-24-018-01-S

Piston Pin Retainer

$2.49

$

In Stock, only 2 left!

0

9

Cub Cadet KH-12-422-09-S

Camshaft Shim-Red

$2.49

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-12-422-13-S

Camshaft Shim-Black

$2.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-12-422-07-S

Camshaft Shim-White

$4.49

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-12-422-08-S

Camshaft Shim-Blue

$2.49

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-12-422-10-S

Camshaft Shim-Yellow

$2.49

$

In Stock, only 1 left!

0

9

Cub Cadet KH-12-422-11-S

Camshaft Shim-Green

$2.49

$

In Stock, only 1 left!

0

9

Cub Cadet KH-12-422-12-S

Camshaft Shim-Gray

$2.99

$

In Stock, only 1 left!

0

10

Cub Cadet KH-24-012-16-S

Camshaft
(Superseded to KH-24-012-25-S)

$165.99

$

In Stock, only 1 left!

0

11

Cub Cadet KH-52-139-09-S

Cup Plug

$4.99

$

In Stock, Qty 8

0

12

Cub Cadet KH-M-0545010

Hex Flange Screw

$

$

Not available

13

Cub Cadet KH-24-018-04

Reed Retainer

$

$

Not available

14

Cub Cadet KH-24-402-05-S

Breather Reed
(Superseded to KH-24-402-07-S)

$4.49

$

Usually ships in 3-6 days

0

15

Cub Cadet KH-12-153-01-S

Lower Oil Fill Tube O-Ring

$4.99

$

In Stock, Qty 16

0

16

Cub Cadet KH-24-126-19

Oil Fill Tube Bracket
(Superseded to KH-24-126-243-S)

$11.99

$

In Stock, only 1 left!

0

17

Cub Cadet KH-32-755-04-S

Oil Fill Tube

$

$

Not available

18

Cub Cadet KH-M-545016-S

Hex Flange Screw
(Superseded to KH-25-086-398-S)

$3.99

$

In Stock, Qty 13

0

19

Cub Cadet KH-12-153-02-S

Upper Oil Fill Tube O-Ring

$2.49

$

In Stock, only 2 left!

0

20

Cub Cadet KH-24-038-04-S

Dipstick Assembly

$19.99

$

In Stock, only 2 left!

0

21

Cub Cadet KH-24-755-46

Oil Fill Cap Kit

$

$

Not available

22

Cub Cadet KH-25-153-02-S

Dipstick O-Ring

$2.49

$

In Stock, only 2 left!

0

23

Cub Cadet KH-24-018-09-S

Ring Retainer

$2.49

$

In Stock, Qty 7

0

24

Cub Cadet KH-M-931010-S

Plain Washer

$2.49

$

In Stock, Qty 9

0

25

Cub Cadet KH-28-032-09-S

Governor Cross Shaft Seal

$3.49

$

In Stock, Qty 17

0

26

Cub Cadet KH-24-468-15-S

Plain Washer

$2.49

$

In Stock, Qty 9

0

27

Cub Cadet KH-24-144-38-S

Governor Cross Shaft
(Superseded to KH-24-144-39-S)

$41.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-CV730-0025

Replacement Engine

Note: NLA

$

$

Not available
