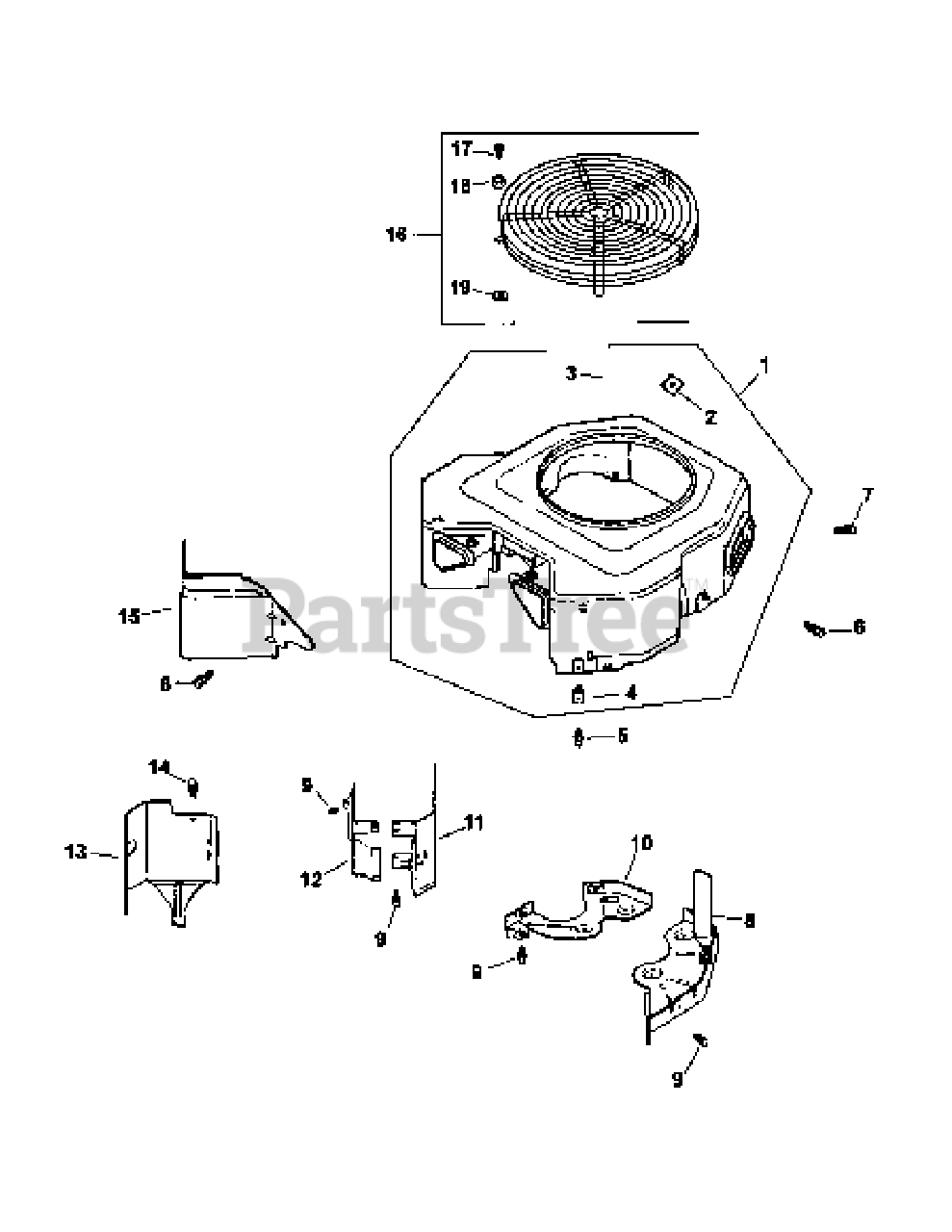

M60-KH (53AB5BAX150) - Cub Cadet 60" Tank Zero-Turn Mower, 25hp Kohler CV25-69558 Blower Housing & Baffles Parts Diagram

60" Tank Zero-Turn Mower, 25hp Kohler

CV25-69558 Blower Housing & Baffles Parts Diagram

  • Title

1

Cub Cadet KH-24-027-199-S

Housing, Blower
(Superseded to KH-24-027-494-S)

Note: (Inc. 2-4 & KH-24-332-01-S)

$165.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-25-100-37-S

Nut, Plastic

$2.49

$

In Stock, only 3 left!

0

3

Cub Cadet KH-25-086-43

Screw, Set

$

$

Not available

4

Cub Cadet KH-24-100-02-S

Nut, Plastic

$2.49

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-M-545020-S

Screw, Hex Flange M5x0.8x20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 17

0

6

Cub Cadet KH-M-545016-S

Screw, Hex Flange M5x0.8x16
(Superseded to KH-25-086-398-S)

$3.99

$

In Stock, Qty 13

0

7

Cub Cadet KH-M-551016-S

Screw, Hex Flange M5x0.8x16

$2.49

$

In Stock, only 1 left!

0

8

Cub Cadet KH-24-146-19-S

Plate, Backing #2 Side
(Superseded to KH-24-146-59-S)

$15.99

$

In Stock, only 2 left!

0

9

Cub Cadet KH-M-645016-S

Screw, Hex Flange M6x1.0x16

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet KH-24-146-20-S

Plate, Backing #1 Side

$

$

Not available

11

Cub Cadet KH-24-063-88-S

Baffle, Cylinder Barrel #2

$28.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-24-063-17

Baffle, Valley #1 Side
(Superseded to KH-24-063-94-S)

$9.49

$

In Stock, only 1 left!

0

13

Cub Cadet KH-24-063-85-S

Baffle, Cylinder Barrel #1 Side

$17.99

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-M-0545010

Screw, Hex Flange M5x0.8x10

$

$

Not available

15

Cub Cadet KH-24-063-69-S

Baffle, Valley #2 Side
(Superseded to KH-24-063-94-S)

$9.49

$

In Stock, only 1 left!

0

16

Cub Cadet KH-24-755-94-S

Kit, Guard

$86.99

$

In Stock, only 2 left!

0

17

Cub Cadet KH-24-086-39-S

Screw Pan hd. M5x0.8x15
(Superseded to KH-25-086-160-S)

$2.99

$

In Stock, only 4 left!

0

18

Cub Cadet KH-24-112-09-S

Spacer
(Superseded to KH-25-112-30-S)

$4.49

$

In Stock, only 4 left!

0

19

Cub Cadet KH-24-468-10

Washer, Plain 1/4"

$

$

Not available

Cub Cadet KH-24-332-01-S

Insert, Threaded

Note: (not shown)

$

$

Not available

Cub Cadet KH-24-113-52-S

Decal, 25hp

Note: (not shown)

$

$

Not available
