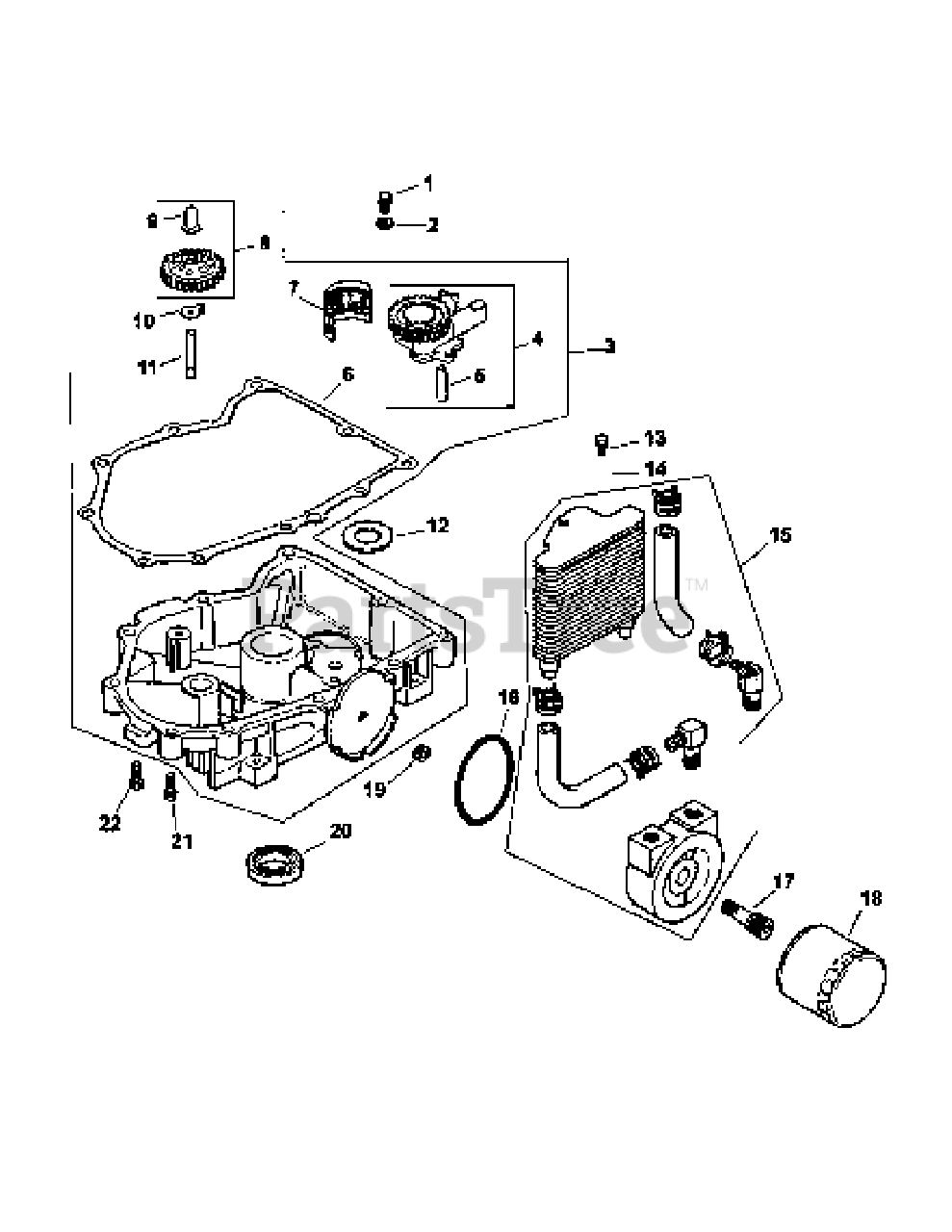

M60-KH (53AB5BAX150) - Cub Cadet 60" Tank Zero-Turn Mower, 25hp Kohler CV25-69558 Oil Pan & Lubrication Parts Diagram

60" Tank Zero-Turn Mower, 25hp Kohler

CV25-69558 Oil Pan & Lubrication Parts Diagram

  • Title

1

Cub Cadet KH-M-645025-S

Screw, Hex Flange M6x1.0x25
(Superseded to KH-25-086-395-S)

$3.49

$

In Stock, Qty 16

0

2

Cub Cadet KH-M-631005

Washer, Plain 6mm

$

$

Not available

3

Cub Cadet KH-24-199-21-S

Kit, Oil Pan w/Gasket
(Superseded to KH-24-199-35-S)

$337.99

$

In Stock, only 1 left!

0

4

Cub Cadet KH-24-393-53-S

Oil Pump Assembly

$

$

Not available

5

Cub Cadet KH-24-123-05

Tube, Oil Pickup
(Superseded to KH-24-381-11-S)

$

$

Not available

6

Cub Cadet KH-24-041-54-S

Gasket, Oil Pan
(Superseded to KH-24-041-66-S)

$25.99

$

In Stock, Qty 20+

0

7

Cub Cadet KH-24-162-26-S

Screen, Oil

$18.99

$

In Stock, only 3 left!

0

8

Cub Cadet KH-24-043-12

Kit, Governor Gear

$

$

Not available

9

Cub Cadet KH-12-380-01

Pin, Governor Regulating

$

$

Not available

10

Cub Cadet KH-52-488-02-S

Tab, Locking

Note: NLA

$

$

Currently unavailable

11

Cub Cadet KH-12-144-02

Shaft, Governor Gear

$

$

Not available

12

Cub Cadet KH-24-422-03-S

Shim, Thrust

$

$

Not available

13

Cub Cadet KH-24-086-12

Screw, Hex Cap M6x1.7x18

$

$

Not available

14

Cub Cadet KH-25-100-37-S

Nut, Plastic

$2.49

$

In Stock, only 4 left!

0

15

Cub Cadet KH-24-594-36-S

Cooler, Oil Phenolic

$233.99

$

Usually ships in 2-5 days

0

16

Cub Cadet KH-24-153-21-S

O-Ring

$6.49

$

In Stock, Qty 16

0

17

Cub Cadet KH-24-136-05-S

Nipple, Oil Filter
(Superseded to KH-24-136-08-S)

$12.99

$

Usually ships in 2-5 days

0

18

Cub Cadet KH-12-050-01-S

Filter, Oil

$13.99

$

In Stock, Qty 20+

0

19

Cub Cadet KH-25-139-62-S

Plug, Hex ctsk 3/8"

$3.49

$

In Stock, only 2 left!

0

20

Cub Cadet KH-25-032-06-S

Seal, Oil (PTO end)

$13.99

$

In Stock, Qty 20+

0

21

Cub Cadet KH-24-086-17-S

Screw, Hex Flange M8x1.25x45

$3.49

$

In Stock, Qty 20+

0

22

Cub Cadet KH-24-086-17-S

Screw, Hex Flange M8x1.25x45

$3.49

$

In Stock, Qty 20+

0

23

Cub Cadet KH-53-139-02-S

Plug, Hex hd. 3/8"

Note: NLA

$

$

Currently unavailable

24

Cub Cadet KH-25-099-27-S

Switch, Oil Pressure

$15.99

$

In Stock, Qty 10

0

25

Cub Cadet KH-25-113-05

Decal, Oil Sentry (n/s)

Note: NLA

$

$

Not available

26

Cub Cadet KH-24-113-25-S

Decal, Oil Cooler

$

$

Not available
