M60-KH (53AB5BDX150) - Cub Cadet 60" Tank Zero-Turn Mower, 27hp Kohler (2003 1/2) CV740S-0015 Oil Pan & Lubrication Parts Diagram

60" Tank Zero-Turn Mower, 27hp Kohler

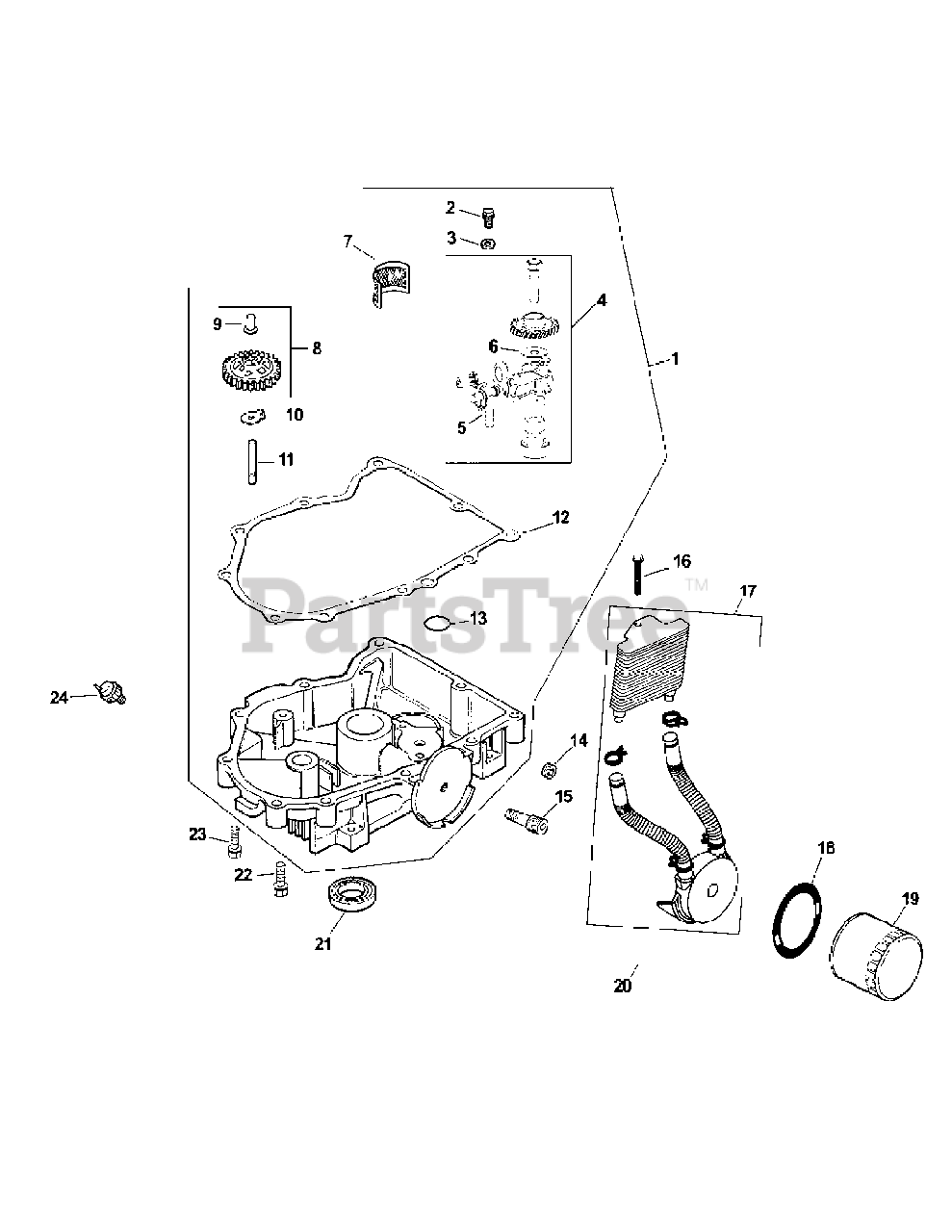

CV740S-0015 Oil Pan & Lubrication Parts Diagram

  • Title

1

Cub Cadet KH-24-199-21-S

Oil Pan w/Gasket Kit
(Superseded to KH-24-199-35-S)

$337.99

$

In Stock, only 3 left!

0

2

Cub Cadet KH-M-645025-S

Hex Flange Screw (M6 x 1.0 x 25)
(Superseded to KH-25-086-395-S)

$3.49

$

In Stock, Qty 17

0

3

Cub Cadet KH-M-631005

Plain Washer 6mm

$

$

Not available

4

Cub Cadet KH-24-393-53-S

Oil Pump Assembly

$

$

Not available

5

Cub Cadet KH-24-381-11-S

Oil Pickup Tube

$

$

Not available

6

Cub Cadet KH-24-153-01

O-Ring

$

$

Not available

7

Cub Cadet KH-24-162-26-S

Oil Screen

$18.99

$

In Stock, only 1 left!

0

8

Cub Cadet KH-24-043-12

Governor Gear Kit

$

$

Not available

9

Cub Cadet KH-12-380-01

Governor Regulating Pin

$

$

Not available

10

Cub Cadet KH-24-448-01-S

Locking Tab

$2.49

$

In Stock, only 2 left!

0

11

Cub Cadet KH-12-144-02

Governor Gear Shaft

$

$

Not available

12

Cub Cadet KH-24-041-54-S

Oil Pan Gasket
(Superseded to KH-24-041-66-S)

$25.99

$

In Stock, Qty 20+

0

13

Cub Cadet KH-24-153-08

O-Ring

$

$

Not available

14

Cub Cadet KH-25-139-62-S

Hex Plug 3/8"

$3.49

$

In Stock, only 2 left!

0

15

Cub Cadet KH-24-136-05-S

Oil Filter Nipple
(Superseded to KH-24-136-08-S)

$

$

Not available

16

Cub Cadet KH-24-086-12

Hex Cap Screw (M6 x 1.7 x 18)

$

$

Not available

17

Cub Cadet KH-24-594-36-S

Oil Cooler

$233.99

$

Usually ships in 2-5 days

0

18

Cub Cadet KH-24-153-21-S

O-Ring

$6.49

$

In Stock, Qty 20+

0

19

Cub Cadet KH-12-050-01-S

Oil Filter

$13.99

$

In Stock, Qty 20+

0

20

Cub Cadet KH-25-100-37-S

Plastic Nut

$2.49

$

In Stock, only 2 left!

0

21

Cub Cadet KH-25-032-06-S

Oil Seal (PTO End)

$13.99

$

In Stock, Qty 20+

0

22

Cub Cadet KH-24-086-17-S

Hex Flange Screw (M8 x 1.25 x 45)

$3.49

$

In Stock, Qty 20+

0

23

Cub Cadet KH-24-086-17-S

Hex Flange Screw (M8 x 1.25 x 45)

$3.49

$

In Stock, Qty 20+

0

24

Cub Cadet KH-25-099-27-S

Oil Pressure Switch

$15.99

$

In Stock, Qty 20+

0

Cub Cadet KH-25-113-05

Oil Sentry Decal

Note: (NLA) (not shown)

$

$

Not available

Cub Cadet KH-24-113-25-S

Oil Cooler Decal

Note: (not shown)

$

$

Not available
