M60-KH (53BH8CT6050) - Cub Cadet 60" Tank Zero-Turn Mower, 27hp Kohler (2010) Front Caster Assembly Parts Diagram

60" Tank Zero-Turn Mower, 27hp Kohler

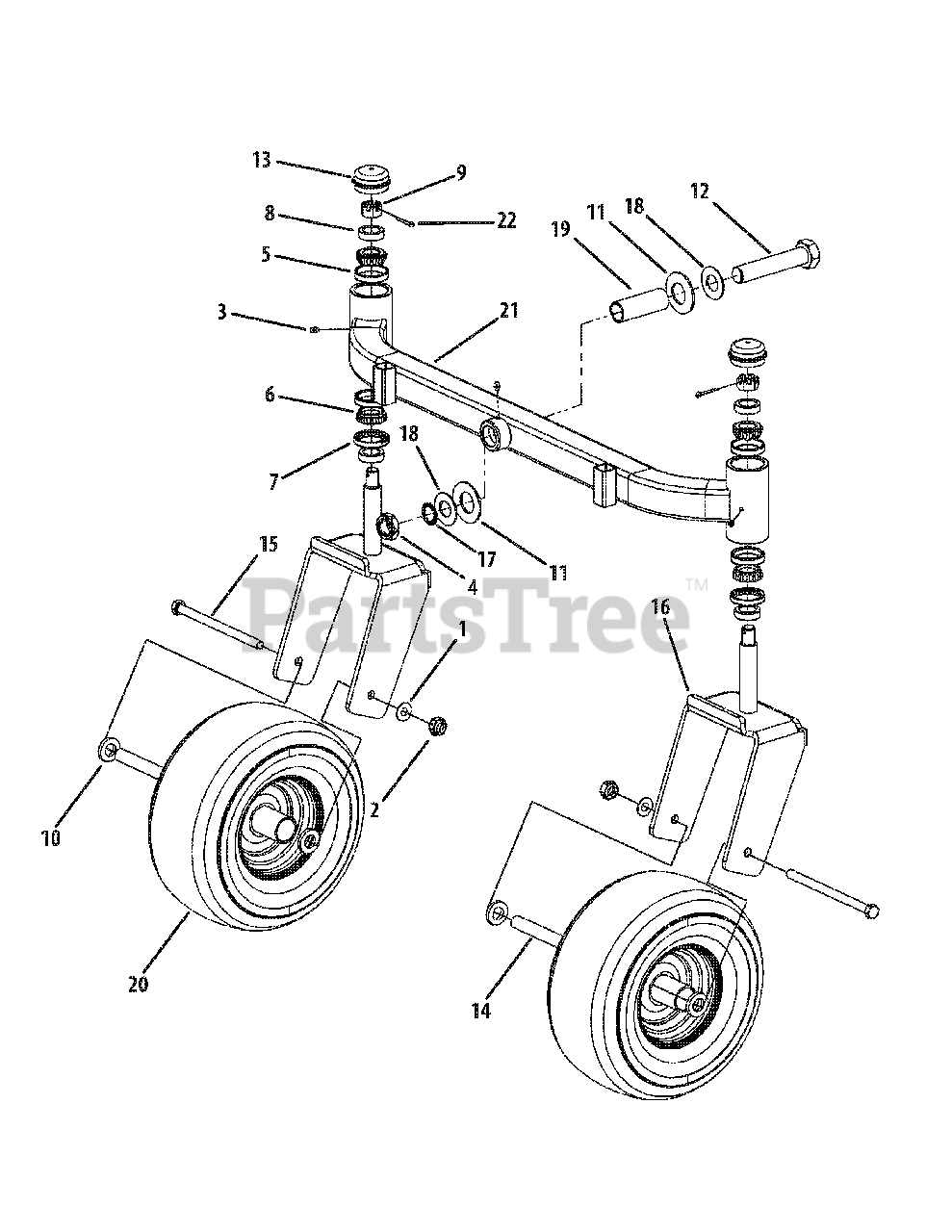

Front Caster Assembly Parts Diagram

  • Title

1

Cub Cadet 00012577

Washer, 1/2 x 1 Shim

$5.49

$

In Stock, Qty 10

0

2

Cub Cadet 00023287

Nut, 1/2-20, Center Lock
(Superseded to 712-0239)

$

$

Not available

3

Cub Cadet 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 6

0

4

Cub Cadet 712-3075

Nut, Jam, 1.0-14, Insert Lock
(Superseded to 712-05008)

$15.99

$

In Stock, only 2 left!

0

5

Cub Cadet 01002620

Cup Bearing
(Superseded to 741-04548)

$9.49

$

In Stock, Qty 8

0

6

Cub Cadet 01002621

Bearing Cone
(Superseded to 741-04549)

$20.99

$

In Stock, only 4 left!

0

7

Cub Cadet 01002622

Seal
(Superseded to 721-04462)

$11.99

$

In Stock, only 2 left!

0

8

Cub Cadet 01002624

Ring Seal
(Superseded to 750-05600)

$7.99

$

In Stock, only 3 left!

0

9

Cub Cadet 712-0359

Slotted Nut, 3/4-16

$12.99

$

In Stock, only 2 left!

0

10

Cub Cadet 01003123

Spacer, .812 ID x .218LG
(Superseded to 750-05553)

$10.99

$

In Stock, Qty 20+

0

11

Cub Cadet 01006294

Bell Washer, 1.25 ID x 2.5 x .157
(Superseded to 736-04604)

$8.99

$

In Stock, only 2 left!

0

12

Cub Cadet 01006309

Hex Cap Screw, 1-14 x 5.0

$32.99

$

In Stock, only 2 left!

0

13

Cub Cadet 01006347

Grease Cap, 1.986 OD
(Superseded to 703-10384)

$15.99

$

In Stock, Qty 15

0

14

Cub Cadet 01006912

Wheel Spacer
(Superseded to 750-05625)

$13.99

$

In Stock, Qty 6

0

15

Cub Cadet 01006961

HHCS, 1/2-20, 7.50
(Superseded to 710-05385)

$11.99

$

In Stock, Qty 17

0

16

Cub Cadet 01007342-0637

Yoke, Caster Wheel

$176.99

$

In Stock, only 4 left!

0

17

Cub Cadet 01009997

Retainer Extension, Self Locking
(Superseded to 716-04191)

$4.49

$

In Stock, only 2 left!

0

18

Cub Cadet 02000588

Flat Washer, 1.00 ID
(Superseded to 736-04605)

$4.49

$

In Stock, only 2 left!

0

19

Cub Cadet 02000589

Spacer, 1.005 ID x 1.25 OD x 3.6

$33.99

$

In Stock, only 2 left!

0

20

Cub Cadet 02002821

Wheel,13 x 6.50 x 6.0, Beige, includes:

$199.99

$

In Stock, only 3 left!

0

20

Cub Cadet 02002108

Tire

$

$

Not available

20

Cub Cadet 02002106

Roller Bearings

$34.99

$

In Stock, only 4 left!

0

20

Cub Cadet 02002107

Retainer Bushings

$6.99

$

In Stock, Qty 11

0

21

Cub Cadet 680-00040-0637

Front Axle Assembly

$

$

Not available

21

Cub Cadet 02004876-0637

Front Axle Assembly

$804.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 02005308-0637

Front Axle Assembly

$391.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 714-0162

Cotter Pin, 5/32, 1.25

$5.49

$

In Stock, Qty 20+

0
