M60-KH (53CB5BDX750) - Cub Cadet 60" Tank Zero-Turn Mower, 27hp Kohler Engine Assembly Kohler Parts Diagram

60" Tank Zero-Turn Mower, 27hp Kohler

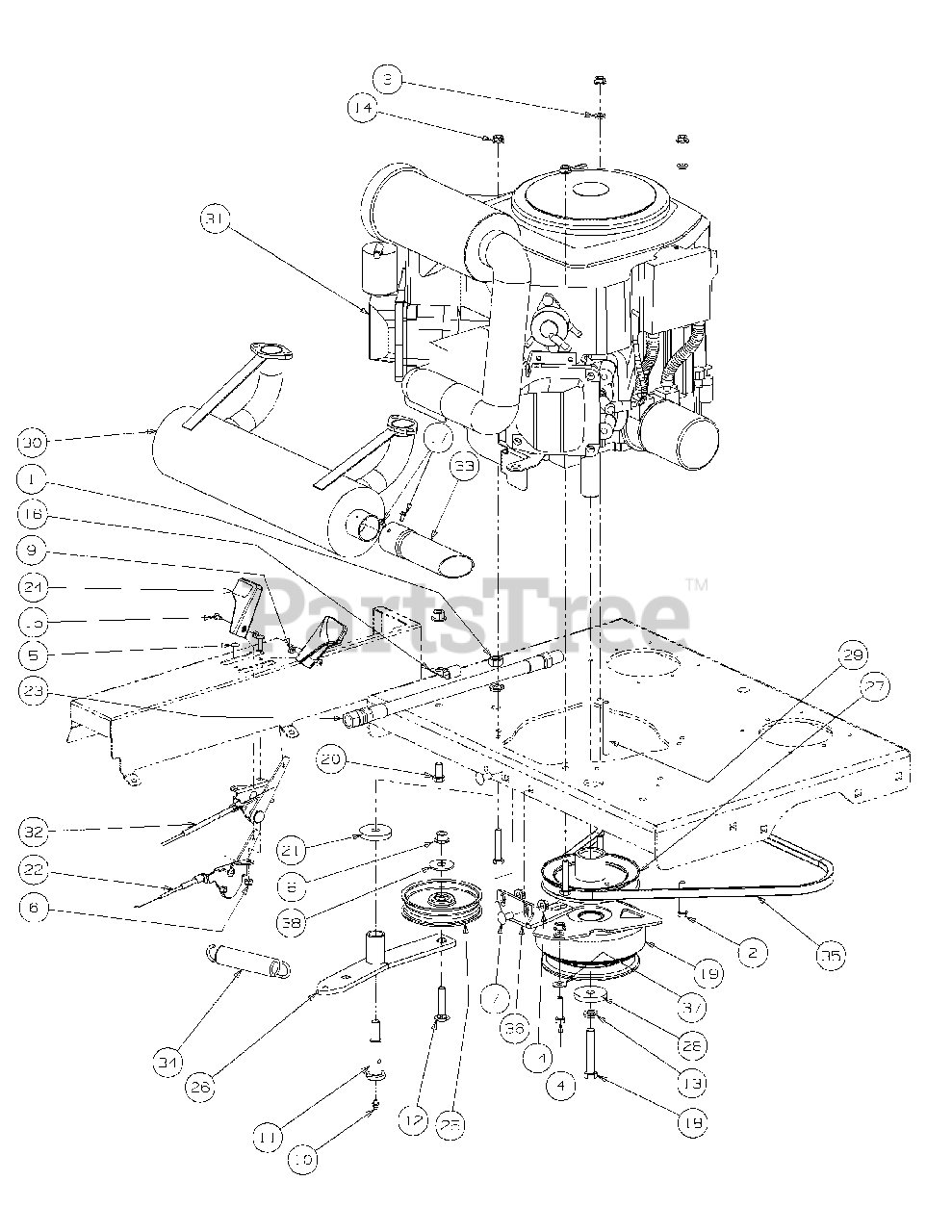

Engine Assembly Kohler Parts Diagram

  • Title

1

Cub Cadet 912-3019

Hex Nut, 7/16-14
(Superseded to 712-3019)

$7.49

$

In Stock, only 3 left!

0

2

Cub Cadet 00006129

HHCS, 5/16-18, 1-3/4

$7.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 00012169

Flat Washer, 5/16

$4.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 00013116

HHCS, 5/16-18 x 1-1/4

$5.99

$

In Stock, only 1 left!

0

5

Cub Cadet 00014602

Round Hd. Machine Screw, 10-32 x 3/4

$

$

Not available

6

Cub Cadet 00014608

Lock Nut, Nylon Insert, 10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 2 left!

0

7

Cub Cadet 00020508

Carriage Bolt, 5/16-18 x .75

$6.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 00022560

Flange Lock, Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 00060056

Nut Washer, W/Star, 8-32

$7.49

$

In Stock, only 1 left!

0

10

Cub Cadet 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 6

0

11

Cub Cadet 01000302

Shoulder Screw, 7/16-14
(Superseded to 738-3102)

$22.99

$

In Stock, Qty 9

0

12

Cub Cadet 710-0560

Hex Carriage Screw, 3/8-16, 1.75

$7.49

$

In Stock, Qty 13

0

13

Cub Cadet 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.99

$

In Stock, Qty 11

0

14

Cub Cadet 712-3004A

Hexflange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 710-3217

Machine Screw, 8-32, .375

$7.49

$

In Stock, only 4 left!

0

16

Cub Cadet 726-3008

Clip, Heat Shield Cable

$5.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-0148

Screw, #8-32 x 0.375

$4.49

$

In Stock, Qty 10

0

18

Cub Cadet 01001395

Capscrew, 7/16-20 x 2.50

$5.49

$

In Stock, only 2 left!

0

19

Cub Cadet 01001979P

Clutch Brake, 1.125 ID

$1047.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 710-0216

Hex Cap Screw, 3/8-16, .750

$4.49

$

In Stock, Qty 8

0

21

Cub Cadet 01003269

Flat Washer, 7/16 ID x 1.75 OD x .25
(Superseded to 736-3082A)

$10.99

$

In Stock, Qty 11

0

22

Cub Cadet 01003273P

Throttle, Control Cable, 45.0

$

$

Not available

23

Cub Cadet 01003283

Oil Drain Hose

$89.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 731-04914

Control Throttle Knob

$13.99

$

In Stock, Qty 5

0

25

Cub Cadet 02005077

Flat Pulley with Flanges

$38.99

$

In Stock, Qty 20+

0

26

Cub Cadet 01005006

Engine Idler Arm

$127.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 01000308

Bearing
(Superseded to 741-04555)

Note: (not shown)

$17.99

$

In Stock, only 2 left!

0

27

Cub Cadet 01005104

Pump Drive Pulley
(Superseded to 756-06263)

$98.99

$

In Stock, only 4 left!

0

28

Cub Cadet 736-04131

Flat Washer, 7/16 ID x 1.75 OD x .25

$15.99

$

In Stock, Qty 11

0

29

Cub Cadet 01005856

Key, 1/4 x 1/4 x 3

$12.99

$

In Stock, only 2 left!

0

30

Cub Cadet 01006566

Muffler Accessory Kohler
(Superseded to 01006566P)

$

$

Not available

31

Cub Cadet KH-CV740-3125

Engine, 27HP Kohler (CV-740-0015)
(Superseded to KH-CV742-3016)

$4589.99

$

Usually ships in 3-6 days

0

31

Cub Cadet KH-CV740-3125

Engine, 27HP Kohler (CV-740-0039)
(Superseded to KH-CV742-3016)

$4589.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 01008256

Choke Control Cable, 38.0

$

$

Not available

33

Cub Cadet 01008623

Muffler Accessory Exhaust Tube

$

$

Not available

34

Cub Cadet 01009635

Extension Spring, .98 OD x 5.00

$20.99

$

In Stock, only 4 left!

0

35

Cub Cadet 754-04212

Belt, 50.0 Lg

$41.99

$

In Stock, Qty 18

0

36

Cub Cadet 02001992-0637

Retainer Clutch Assembly, Ogura

$32.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 00009812

Flat Washer, 5/16

$

$

Not available

38

Cub Cadet 736-3052

Flat Washer, .406 ID, 1.0 OD, .105

$4.99

$

In Stock, Qty 20+

0

Cub Cadet CC-737-3030A

Engine Oil 10W30
(Superseded to CC-737-3030A-B)

Note: (not shown)

$

$

Not available

Cub Cadet KH-25-083-01-S

Air Filter (Primary)

Note: (not shown)

$33.99

$

In Stock, Qty 20+

0

Cub Cadet KH-25-083-04-S

Air Filter (Safety)

Note: (not shown)

$33.99

$

In Stock, Qty 20+

0

Cub Cadet KH-25-050-22-S1

Fuel Filter

Note: (not shown)

$9.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-050-01-S

Oil Filter

Note: (not shown)

$13.99

$

In Stock, Qty 20+

0

Cub Cadet 759-3336

Spark Plug
(Superseded to RC12YC)

Note: (not shown)

$3.99

$

Usually ships in 3-6 days

0
