M60-KH (53CB5BDX750) - Cub Cadet 60" Tank Zero-Turn Mower, 27hp Kohler Kohler CV740-0039 Oil Pan Lubrication Parts Diagram

60" Tank Zero-Turn Mower, 27hp Kohler

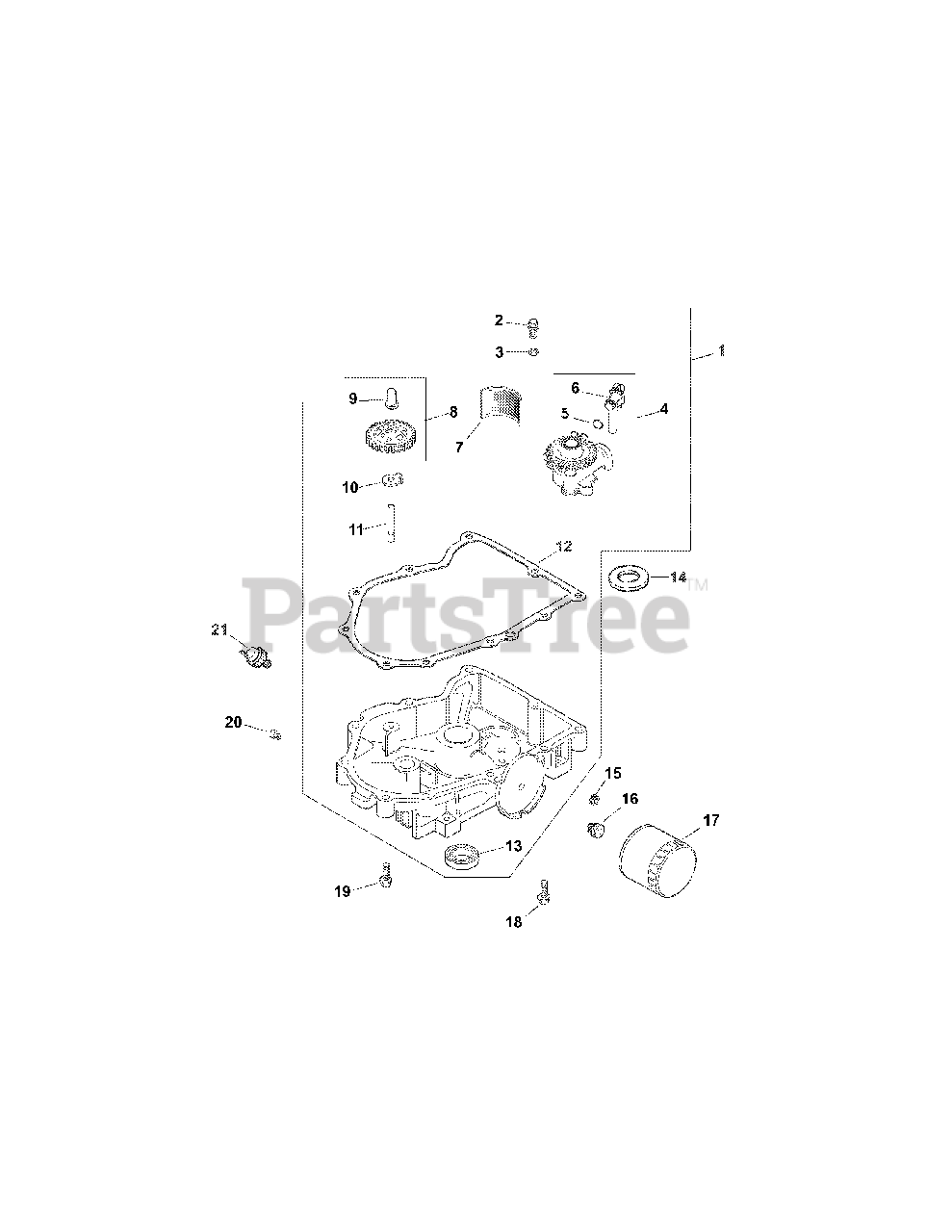

Kohler CV740-0039 Oil Pan Lubrication Parts Diagram

  • Title

1

Cub Cadet KH-24-199-21-S

Pan Assembly; oil (includes 2-13)
(Superseded to KH-24-199-35-S)

$337.99

$

In Stock, Qty 5

0

2

Cub Cadet KH-M-645025-S

Screw, flg thd frm M6x1.0x25
(Superseded to KH-25-086-395-S)

$2.49

$

In Stock, Qty 12

0

3

Cub Cadet KH-M-631005

Washer, flat 6 mm

$

$

Not available

4

Cub Cadet KH-24-393-51-S

Pump assembly, oil (Includes 5,6)
(Superseded to KH-24-393-53-S)

$

$

Not available

5

Cub Cadet KH-24-153-01

O-Ring, oil pickup

$

$

Not available

6

Cub Cadet KH-24-381-11-S

Tube, oil pickup

$

$

Not available

7

Cub Cadet KH-24-162-26-S

Screen, oil

$17.99

$

In Stock, only 1 left!

0

8

Cub Cadet KH-24-043-12-S

Kit, governor gear w/pin (Includes 9)

$

$

Currently unavailable

9

Cub Cadet KH-12-380-01

Pin, governor regulating

$

$

Not available

10

Cub Cadet KH-24-448-02-S

Tab, locking

$2.49

$

In Stock, only 1 left!

0

11

Cub Cadet KH-12-144-02

Shaft, governor gear

$

$

Not available

12

Cub Cadet KH-24-041-54-S

Gasket, oil pan (Select-A Seal)
(Superseded to KH-24-041-66-S)

$24.99

$

In Stock, Qty 20+

0

13

Cub Cadet KH-52-032-08-S

Seal, oil (PTO end)
(Superseded to KH-25-032-06-S)

$10.99

$

In Stock, Qty 20+

0

14

Cub Cadet KH-24-422-05-S

Shim, thrust

$20.99

$

In Stock, only 2 left!

0

15

Cub Cadet KH-25-139-62-S

Plug, ctsk. 3/8 inch

$3.49

$

In Stock, only 2 left!

0

16

Cub Cadet KH-24-136-01

Nipple, oil filter
(Superseded to KH-24-136-09-S)

$6.49

$

Usually ships in 3-6 days

0

17

Cub Cadet KH-52-050-02

Filter, oil
(Superseded to KH-52-050-02-S)

$14.99

$

In Stock, Qty 20+

0

18

Cub Cadet KH-24-086-17-S

Screw, flg M8x1.25x45

$2.49

$

In Stock, Qty 19

0

19

Cub Cadet KH-24-086-16-S

Screw, flg M8x1.25x45
(Superseded to KH-24-086-17-S)

$2.49

$

In Stock, Qty 19

0

20

Cub Cadet KH-25-139-57-S

Plug, sq. hd. Pipe 3/8 inch

$2.49

$

In Stock, Qty 13

0

21

Cub Cadet KH-25-099-24-S

Switch, pressure
(Superseded to KH-25-099-27-S)

$15.99

$

Usually ships in 2-5 days

0
