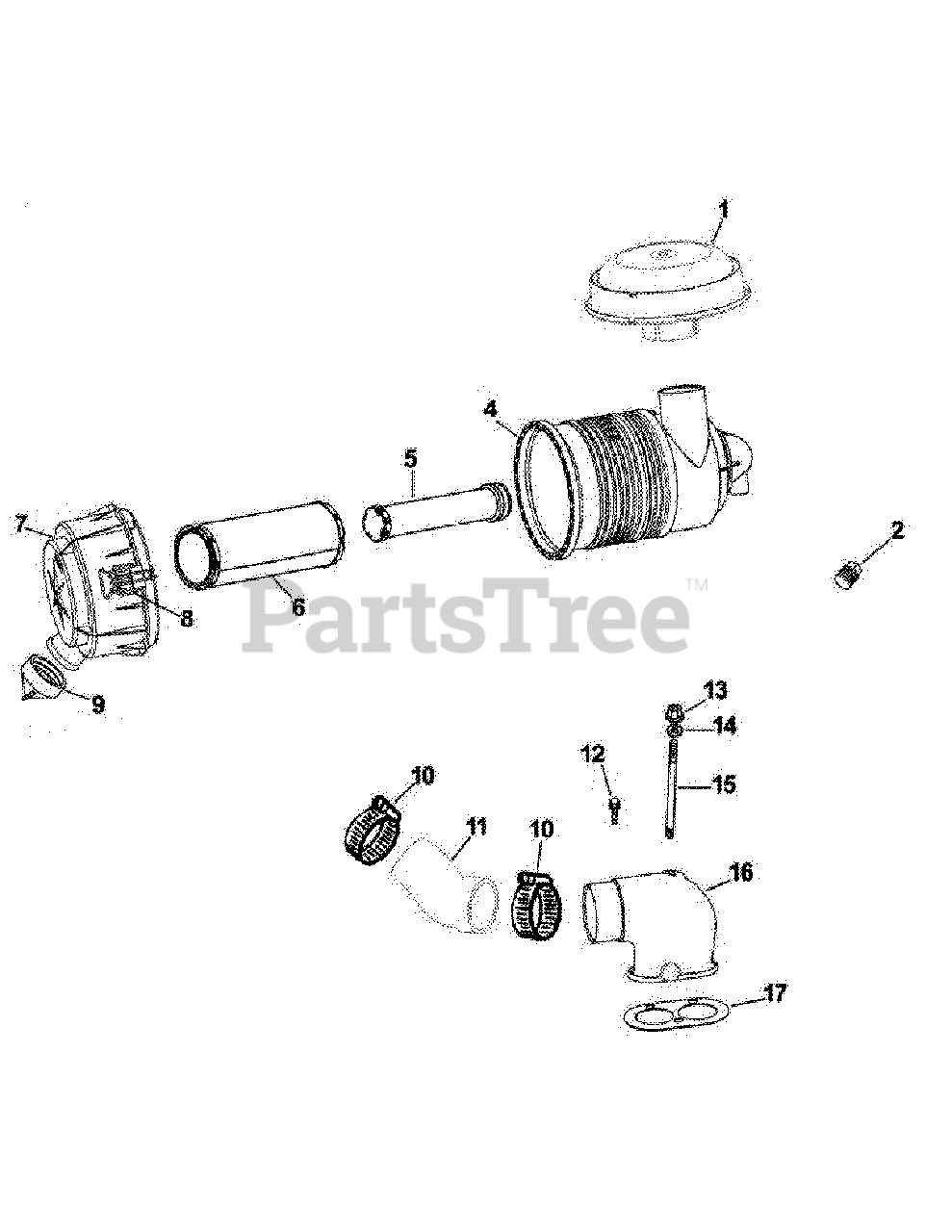

M60-KH EFI (53AB5HEX750) - Cub Cadet 60" Tank Zero-Turn Mower, 28hp Kohler EFI CV745-0006 Air Intake & Filtration Parts Diagram

60" Tank Zero-Turn Mower, 28hp Kohler EFI

CV745-0006 Air Intake & Filtration Parts Diagram

  • Title

1

Cub Cadet KH-25-324-04-S

Hood

$49.99

$

In Stock, Qty 6

0

2

Cub Cadet KH-25-139-20-S

Pipe Plug

$8.49

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-25-081-01-S

Housing

$140.99

$

In Stock, only 1 left!

0

5

Cub Cadet KH-25-083-04-S

Air Cleaner Element (Safety)

$31.99

$

In Stock, Qty 20+

0

6

Cub Cadet KH-25-083-01-S

Air Cleaner Element (Primary)

$31.99

$

In Stock, Qty 20+

0

7

Cub Cadet KH-25-096-06-S

Cover Assembly

$83.99

$

In Stock, Qty 5

0

8

Cub Cadet KH-25-154-05-S

Clip
(Superseded to KH-62-154-07-S)

$12.99

$

In Stock, only 4 left!

0

9

Cub Cadet KH-24-462-07-S

Dust Ejector Valve

$21.99

$

In Stock, Qty 20+

0

10

Cub Cadet KH-25-237-21-S

Hose Clamp

$7.99

$

In Stock, only 4 left!

0

11

Cub Cadet KH-24-326-53-S

Air Cleaner Hose

$13.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-M-639016-S

Hex Flange Screw

$2.49

$

In Stock, only 3 left!

0

13

Cub Cadet KH-M-641060-S

Hex Flange Nut

$4.49

$

In Stock, Qty 14

0

14

Cub Cadet KH-25-468-01

Copper Washer

Note: NLA

$

$

Not available

15

Cub Cadet KH-M-0629122

Stud

Note: NLA

$

$

Not available

16

Cub Cadet KH-24-029-60-S

Air Cleaner Adapter

$

$

Not available

17

Cub Cadet KH-24-041-36-S

Air Cleaner Base Gasket

$5.49

$

In Stock, only 1 left!

0

Cub Cadet KH-X-25-73-S

Plain Washer

Note: (not shown)

$3.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-126-02-S

Air Cleaner Bracket
(Superseded to KH-24-126-191-S)

Note: (not shown)

$60.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-126-118-S

Main Support Bracket

Note: (NLA) (not shown)

$123.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-M-647060

Hex Lock Nut

Note: (NLA) (not shown)

$

$

Not available

Cub Cadet KH-24-126-165-S

Air Cleaner Mounting Bracket
(Superseded to KH-24-126-184-S)

Note: (not shown)

$92.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-139-60-S

Plain Washer

Note: (not shown)

$3.49

$

In Stock, only 3 left!

0

Cub Cadet KH-M-644025-S

Hex Socket Screw

Note: (not shown)

$3.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-113-27-S

Air Cleaner Decal

Note: (not shown)

$

$

Not available

Cub Cadet KH-25-454-04-S

Wire Tie

Note: (not shown)

$3.49

$

Usually ships in 2-5 days

0
