M60-KH EFI (53AB5HEX750) - Cub Cadet 60" Tank Zero-Turn Mower, 28hp Kohler EFI CV745-0006 Ignition & Electrical Parts Diagram

60" Tank Zero-Turn Mower, 28hp Kohler EFI

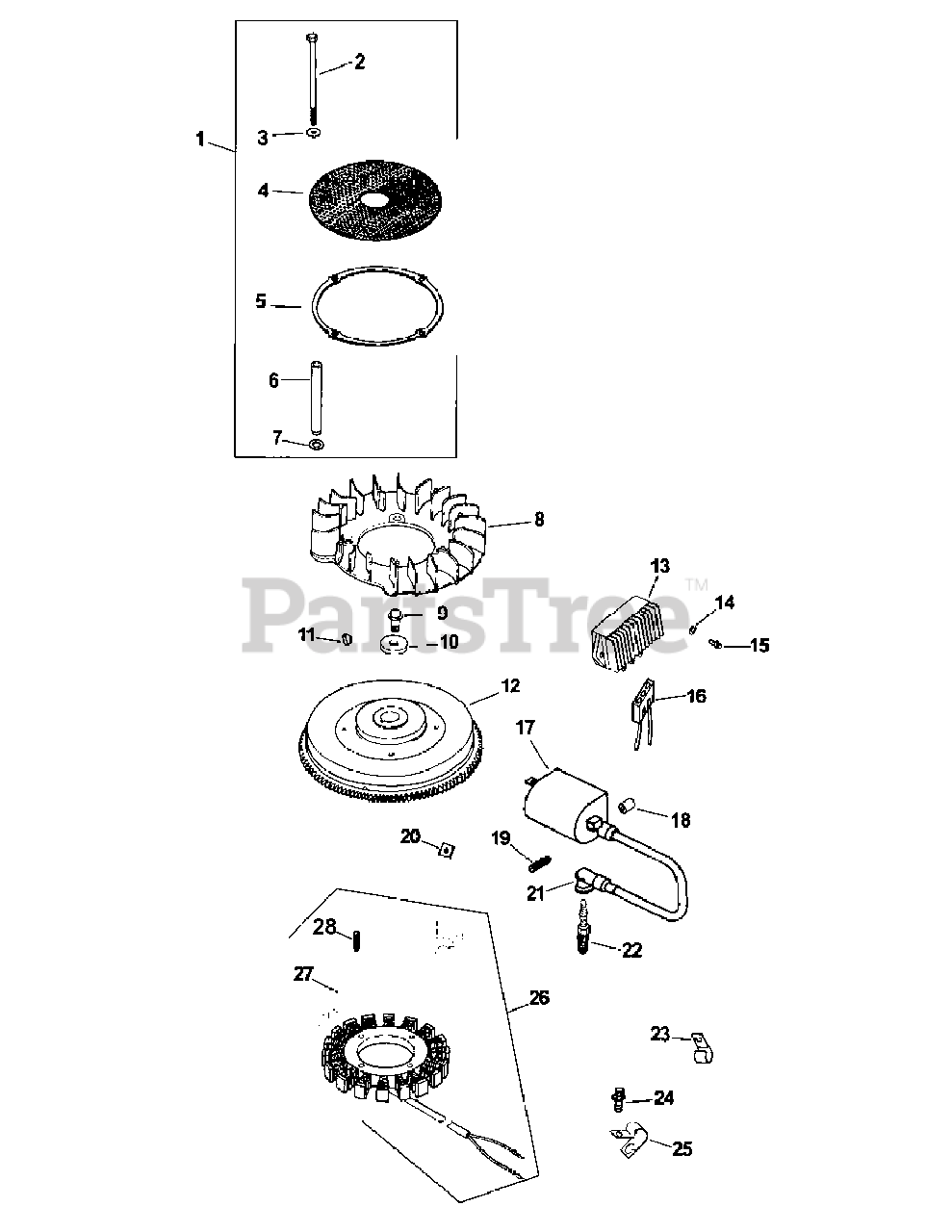

CV745-0006 Ignition & Electrical Parts Diagram

  • Title

1

Cub Cadet KH-24-755-79

Chopper Screen Kit

$

$

Not available

2

Cub Cadet KH-M-603100

Hex Head Screw

$

$

Not available

3

Cub Cadet KH-X-25-53

Plain Washer

$

$

Not available

4

Cub Cadet KH-24-162-41-S

Grass Screen

$24.99

$

In Stock, only 2 left!

0

5

Cub Cadet KH-24-141-06

Support Ring
(Superseded to KH-25-141-08-S)

$6.99

$

In Stock, only 3 left!

0

6

Cub Cadet KH-24-112-14

Grass Screen Spacer

$

$

Not available

7

Cub Cadet KH-24-468-11

Spring Washer

$

$

Not available

8

Cub Cadet KH-24-157-04-S

Fan

$79.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-25-086-361-S

Hex Flange Screw

$4.49

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-12-468-03

Plain Washer

$

$

Not available

11

Cub Cadet KH-X-42-15

Key

$

$

Not available

12

Cub Cadet KH-24-025-09-S

Flywheel
(Superseded to KH-24-025-23-S)

$283.99

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-25-403-08-S

Rectifier-Regulator
(Superseded to KH-25-403-39-S)

$96.99

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-X-25-92

Plain Washer

$

$

Not available

15

Cub Cadet KH-24-086-18

Phillips Screw

$

$

Not available

16

Cub Cadet KH-25-155-41-S

Connector

$29.99

$

In Stock, only 1 left!

0

17

Cub Cadet KH-24-519-02-S

Ignition Coil

$207.99

$

In Stock, only 1 left!

0

18

Cub Cadet KH-24-112-16-S

Spacer

$29.99

$

Usually ships in 2-5 days

0

19

Cub Cadet KH-24-086-48-S

Tapping Screw

$2.49

$

Usually ships in 2-5 days

0

20

Cub Cadet KH-25-100-37-S

Plastic Nut

$2.49

$

In Stock, only 4 left!

0

21

Cub Cadet KH-24-131-02-S

Spark Plug Boot

$66.99

$

Usually ships in 2-5 days

0

22

Cub Cadet 759-3336

Spark Plug
(Superseded to RC12YC)

$7.49

$

Usually ships in 3-6 days

0

23

Cub Cadet KH-48-154-02

Cable Clip

$

$

Not available

24

Cub Cadet KH-M-545016-S

Hex Flange Screw
(Superseded to KH-25-086-398-S)

$4.49

$

Usually ships in 2-5 days

0

25

Cub Cadet KH-25-237-06-S

Hose Clamp

$

$

Not available

26

Cub Cadet KH-28-085-02-S

Stator Kit

$194.99

$

In Stock, only 3 left!

0

27

Cub Cadet KH-24-126-71

Stator Wire Bracket
(Superseded to KH-24-126-139-S)

$19.99

$

Usually ships in 2-5 days

0

28

Cub Cadet KH-24-086-29-S

Tapping Screw

$

$

Not available

Cub Cadet KH-25-086-43

Set Screw

Note: (not shown)

$

$

Not available

Cub Cadet KH-24-126-137-S

Ground Strap Bracket
(Superseded to KH-24-518-12-S)

Note: (not shown)

$5.99

$

In Stock, only 2 left!

0

Cub Cadet KH-41-037-10-S

Service Nameplate

Note: (not shown)

$12.99

$

In Stock, only 1 left!

0
