M60-KW (53AB5D8X750) - Cub Cadet 60" Tank Zero-Turn Mower, 25hp Kawasaki Floor Panel Assembly Parts Diagram

60" Tank Zero-Turn Mower, 25hp Kawasaki

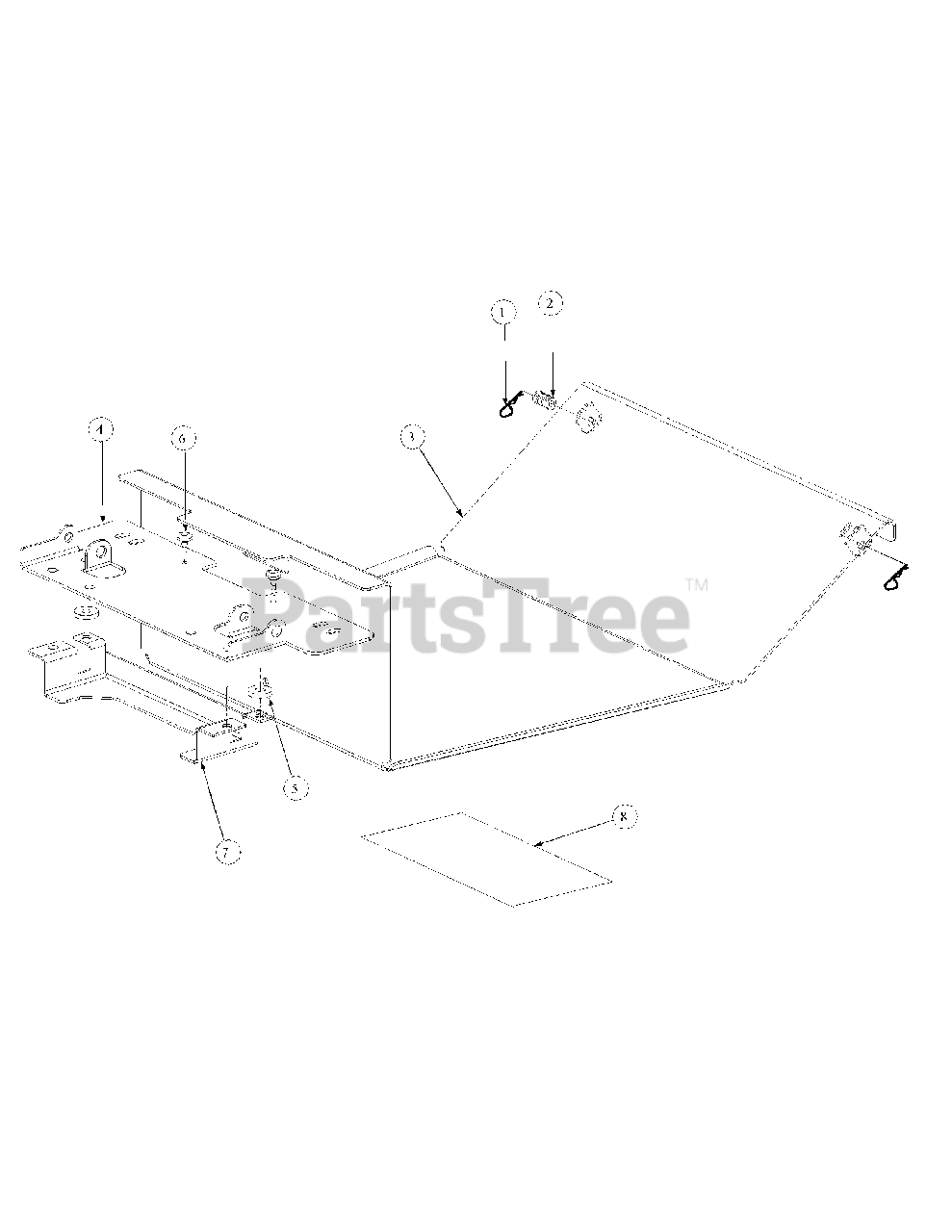

Floor Panel Assembly Parts Diagram

  • Title

1

Cub Cadet 00021956

Hair Pin, 3/8-1/2
(Superseded to 914-04023)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 00012158

Washer

Note: A/R

$4.99

$

In Stock, only 2 left!

0

3

Cub Cadet 01007560

Floor Panel Assembly

$

$

Not available

4

Cub Cadet 01002656-0637

Panel Seat

$

$

Not available

5

Cub Cadet 00083192

Washer
(Superseded to 736-0258)

$4.99

$

In Stock, Qty 10

0

6

Cub Cadet 935-0199A

Rubber Bumper, .62 OD x .22 Thick
(Superseded to 735-0199A)

$8.49

$

In Stock, Qty 13

0

7

Cub Cadet 01004727-0637

Support, Seat Bracket

$

$

Not available

8

Cub Cadet 01004992

Label, Belt Routing and Lubrication

$

$

Not available
