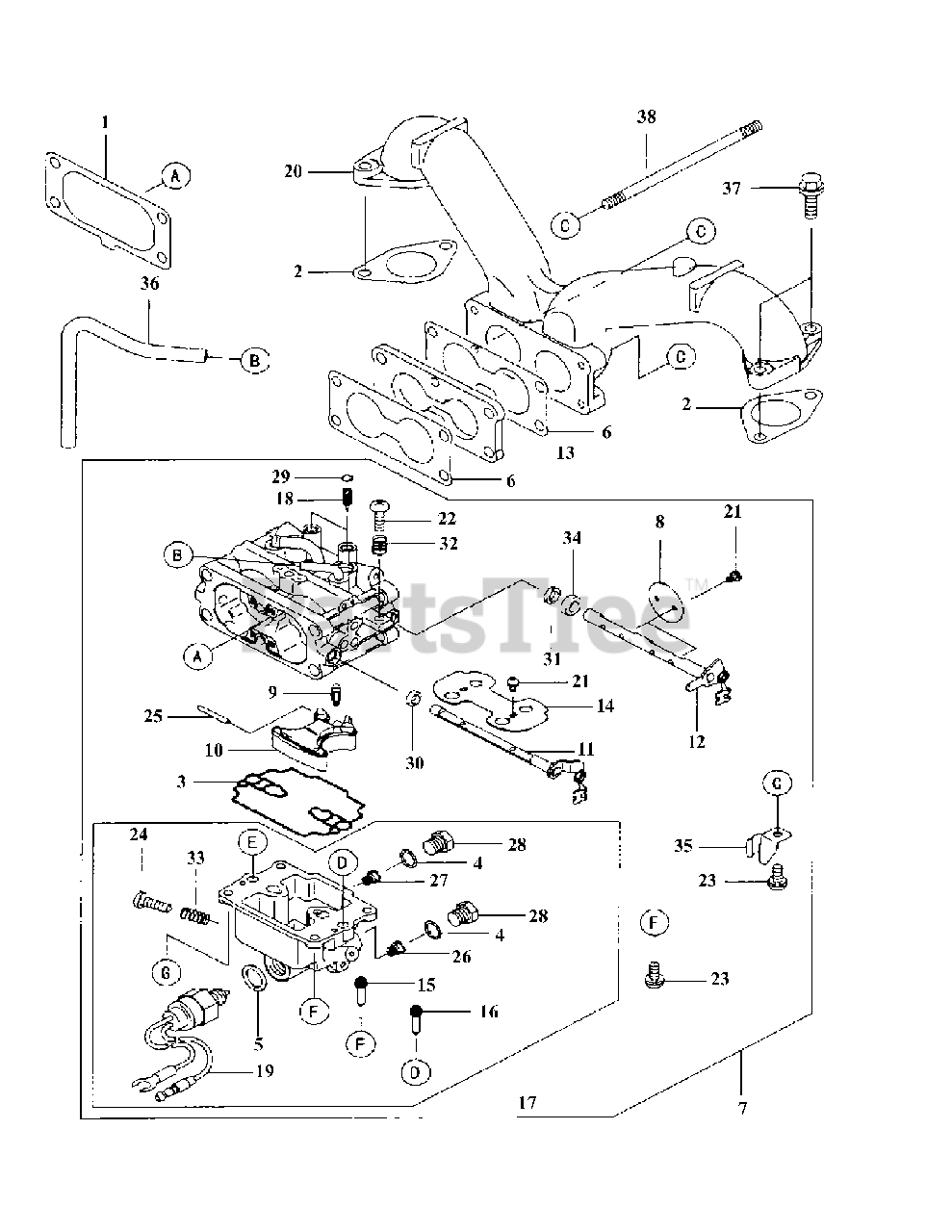

M60-KW (53AB5DCX150) - Cub Cadet 60" Tank Zero-Turn Mower, 25hp Kawasaki FH721V-AS15 Intake & Carburetor Parts Diagram

60" Tank Zero-Turn Mower, 25hp Kawasaki

FH721V-AS15 Intake & Carburetor Parts Diagram

  • Title

1

Cub Cadet KM-11060-7009

Gasket, Air Filter

$2.49

$

In Stock, Qty 20+

0

2

Cub Cadet KM-11060-7011

Gasket

$2.49

$

In Stock, Qty 20+

0

3

Cub Cadet KM-11060-7018

Gasket, Float Chamber

$1.49

$

In Stock, Qty 15

0

4

Cub Cadet KM-11060-7019

Gasket, Main Plug

$1.49

$

In Stock, Qty 18

0

5

Cub Cadet KM-11060-7020

Gasket,Solenoid

$0.99

$

In Stock, Qty 15

0

6

Cub Cadet KM-11060-7024

Gasket, Carburetor-Assy

$11.99

$

In Stock, Qty 20+

0

7

Cub Cadet KM-15003-7080

Carburetor-Assy

$469.99

$

Usually ships in 2-5 days

0

8

Cub Cadet KM-16025-7003

Valve-Throttle

$25.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KM-16030-7002

Valve-Float

$18.99

$

In Stock, only 2 left!

0

10

Cub Cadet KM-16031-7001

Float

$29.99

$

In Stock, only 1 left!

0

11

Cub Cadet KM-16041-7059

Shaft-Carburetor, Choke

$41.99

$

In Stock, only 1 left!

0

12

Cub Cadet KM-16041-7014

Shaft-Carburetor

$

$

Not available

13

Cub Cadet KM-16073-7005

Insulator

$4.49

$

In Stock, Qty 10

0

14

Cub Cadet KM-16126-7004

Valve,Choke

$6.49

$

Usually ships in 2-5 days

0

15

Cub Cadet KM-16158-7006

Jet-Slow

$

$

Not available

16

Cub Cadet KM-16158-7007

Jet-Slow

$

$

Not available

17

Cub Cadet KM-16184-7006

Chamber-Assy-Float

$

$

Not available

18

Cub Cadet KM-16187-7002

Needle-Jet

$13.99

$

In Stock, Qty 5

0

19

Cub Cadet KM-21188-7001

Solenoid

$172.99

$

In Stock, only 2 left!

0

20

Cub Cadet KM-59076-7011

Manifold-Intake
(Superseded to KM-59076-0026)

$125.99

$

Usually ships in 2-5 days

0

21

Cub Cadet KM-92009-7003

Screw

$0.99

$

In Stock, Qty 20+

0

22

Cub Cadet KM-92009-7004

Screw

$1.49

$

In Stock, only 4 left!

0

23

Cub Cadet KM-92009-7005

Screw

$1.49

$

In Stock, Qty 9

0

24

Cub Cadet KM-92009-7006

Screw, Drain

$1.49

$

In Stock, only 3 left!

0

25

Cub Cadet KM-92043-7004

Pin, Float

$6.99

$

In Stock, only 3 left!

0

26

Cub Cadet KM-92063-7010

Jet-Main

$

$

Not available

27

Cub Cadet KM-92063-7011

Jet-Main

$19.99

$

In Stock, only 1 left!

0

28

Cub Cadet KM-92066-7008

Plug, Main, Jet

$4.49

$

In Stock, only 2 left!

0

29

Cub Cadet KM-92066-7009

Plug, Expansion

$7.99

$

In Stock, Qty 8

0

30

Cub Cadet KM-92093-7001

Seal, 5.9

$2.49

$

In Stock, Qty 9

0

31

Cub Cadet KM-92093-7002

Seal, 6.9

$2.49

$

In Stock, Qty 18

0

32

Cub Cadet KM-92145-7010

Spring

$2.49

$

Usually ships in 2-5 days

0

33

Cub Cadet KM-92145-7011

Spring

$2.49

$

Usually ships in 2-5 days

0

34

Cub Cadet KM-92152-7001

Collar

$11.99

$

Usually ships in 2-5 days

0

35

Cub Cadet KM-92171-7001

Clamp

$

$

Not available

36

Cub Cadet KM-92191-7010

Tube

$1.49

$

In Stock, Qty 5

0

37

Cub Cadet KM-130CA0620

Bolt-Flange

$1.49

$

In Stock, Qty 6

0

38

Cub Cadet KM-172BA06105

Bolt-Stud

$4.49

$

In Stock, only 2 left!

0
