M60-KW (53AH5D8X750) - Cub Cadet 60" Tank Zero-Turn Mower, 25hp Kawasaki Frame Assembly Parts Diagram

60" Tank Zero-Turn Mower, 25hp Kawasaki

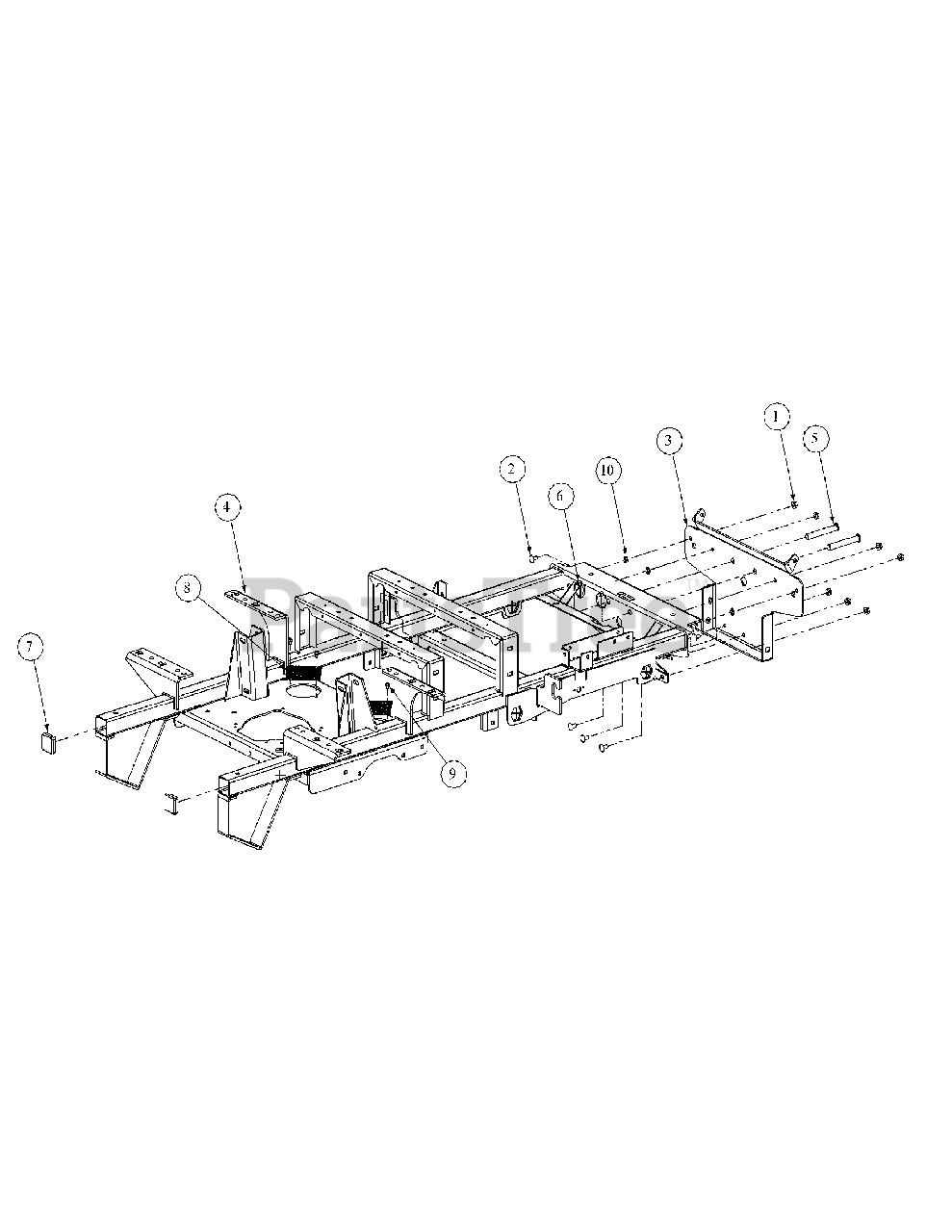

Frame Assembly Parts Diagram

  • Title
1

Cub Cadet 00022560

Hex Nut, 3/8-16 Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75 Long

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 01001713

Bracket Assembly, Frame, Front

$198.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 01009427

Frame Assembly

Note: NLA

$

$

Not available

5

Cub Cadet 01003282

Clevis Pin, .625 Dia x 4.375 Long

$12.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 01003993

Linch Pin, 3/16 Dia.
(Superseded to 753-04070)

$9.99

$

In Stock, Qty 20+

0

7

Cub Cadet 01005160

Plug, Square Tube

$10.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 01005680

Cover, Hydro Fan

$

$

Not available

9

Cub Cadet 710-0599

Screw, TT, 1/4-20, 0.5

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 01008225

Push Retainer, 3/8
(Superseded to 712-0229)

$3.99

$

In Stock, Qty 20+

0
