M60-KW LC (53AB5GFX750) - Cub Cadet 60" Tank Zero-Turn Mower, 29hp Kawasaki Electrical Assembly Kawasaki Parts Diagram

60" Tank Zero-Turn Mower, 29hp Kawasaki

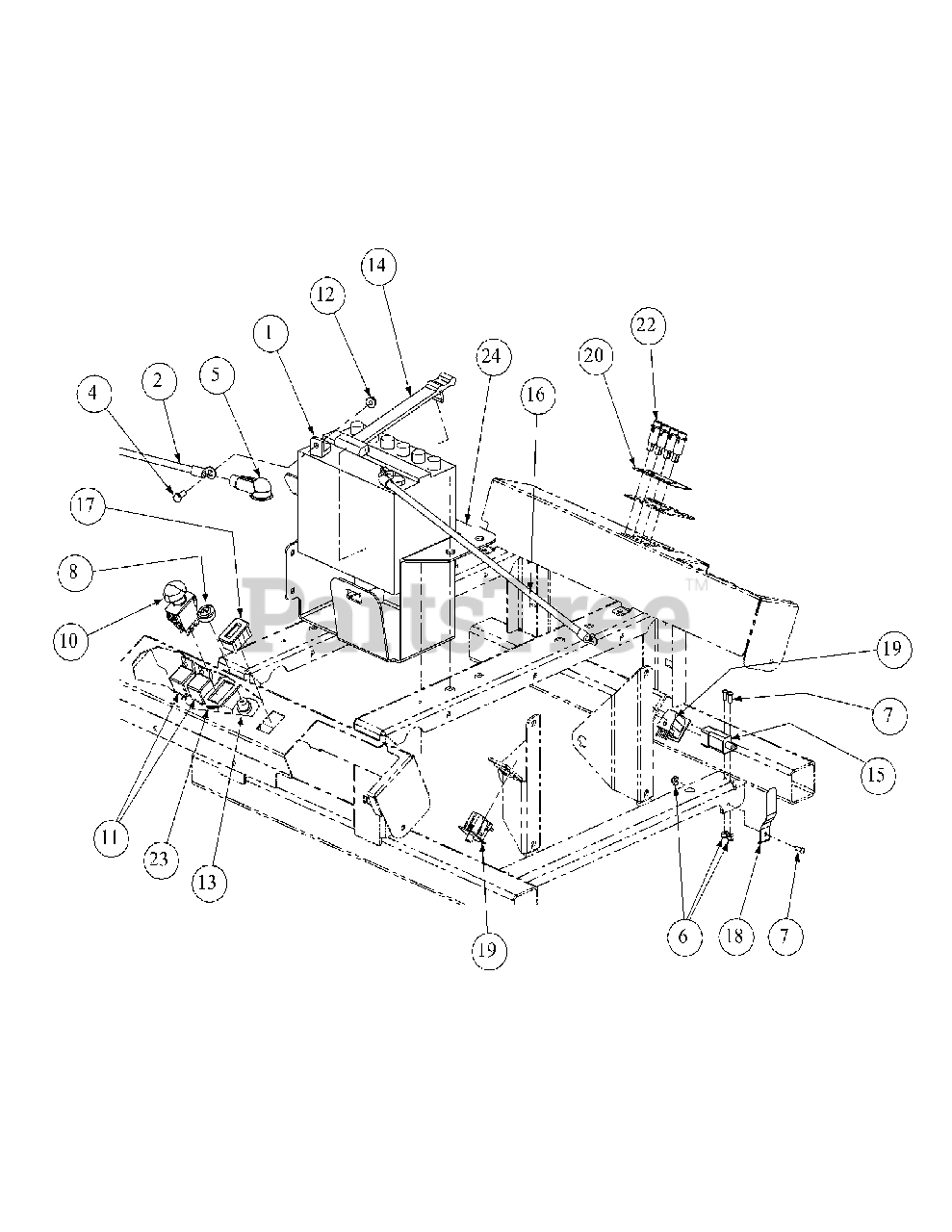

Electrical Assembly Kawasaki Parts Diagram

  • Title

1

Cub Cadet 925-1707D

Battery, 12V 225CCA 30 Min

$

$

Not available

2

Cub Cadet 00012289

Cable, Battery, Red, 36"

$

$

Not available

3

Cub Cadet 725-0157

Tie, Cable, 3/16 x .05 x 7.4"

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 00013131

Screw, Hex, Cap, 1/4-20 x .75

$6.49

$

In Stock, only 1 left!

0

5

Cub Cadet 00013258

Boot, 1" OD Rubber Battery-PST, Red

$9.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 00014608

Nut, Lock, Nylon Insert, #10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 2 left!

0

7

Cub Cadet 00030906

Screw, Phillips Head, Machine, 10-32 x 5/8

$6.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 00032097

Nut, W/Cap, 5/8-32 Ignition
(Superseded to 00032097P)

$

$

Not available

10

Cub Cadet 01002111

Switch, Electric, PTO
(Superseded to 925-1716A)

$77.99

$

In Stock, Qty 13

0

11

Cub Cadet 01002251

Relay, 12V 40A

$61.99

$

In Stock, Qty 7

0

12

Cub Cadet 912-3027

Hex Flange Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 01003581P

Switch, Ignition, 6 Pin

$74.99

$

In Stock, Qty 8

0

13

Cub Cadet 725-1341B

Key, Ignition

$11.99

$

In Stock, only 4 left!

0

14

Cub Cadet 723-0444

Strap, Battery

$

$

Not available

15

Cub Cadet 01003712

Switch, Plunger
(Superseded to 725-3223)

$19.99

$

In Stock, only 3 left!

0

16

Cub Cadet 01009623

Cable, Battery Black, 34"

$

$

Not available

17

Cub Cadet 925-04893

Meter, Hour
(Superseded to 925-04893A)

$175.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 732-04200

Spring Retainer

$10.99

$

In Stock, only 1 left!

0

19

Cub Cadet 925-04165

Neutral Switch

$34.99

$

In Stock, Qty 13

0

20

Cub Cadet 01009619

Decal, Engine Light

$

$

Not available

22

Cub Cadet 01009816P

Light Indicator, 12V

$43.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 01009905

Bracket, PTO Switch Retainer

$28.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 01009995

Mount Bracket, Battery

$

$

Not available

Cub Cadet 01009921

Adaptor - Diode

Note: (not shown)

$25.99

$

Usually ships in 3-6 days

0

Cub Cadet 01001811

Hourmeter, Harness
(Superseded to 929-04195)

Note: (not shown)

$8.99

$

Usually ships in 3-6 days

0

Cub Cadet 01009805

Harness Assembly

Note: (not shown)

$

$

Not available
