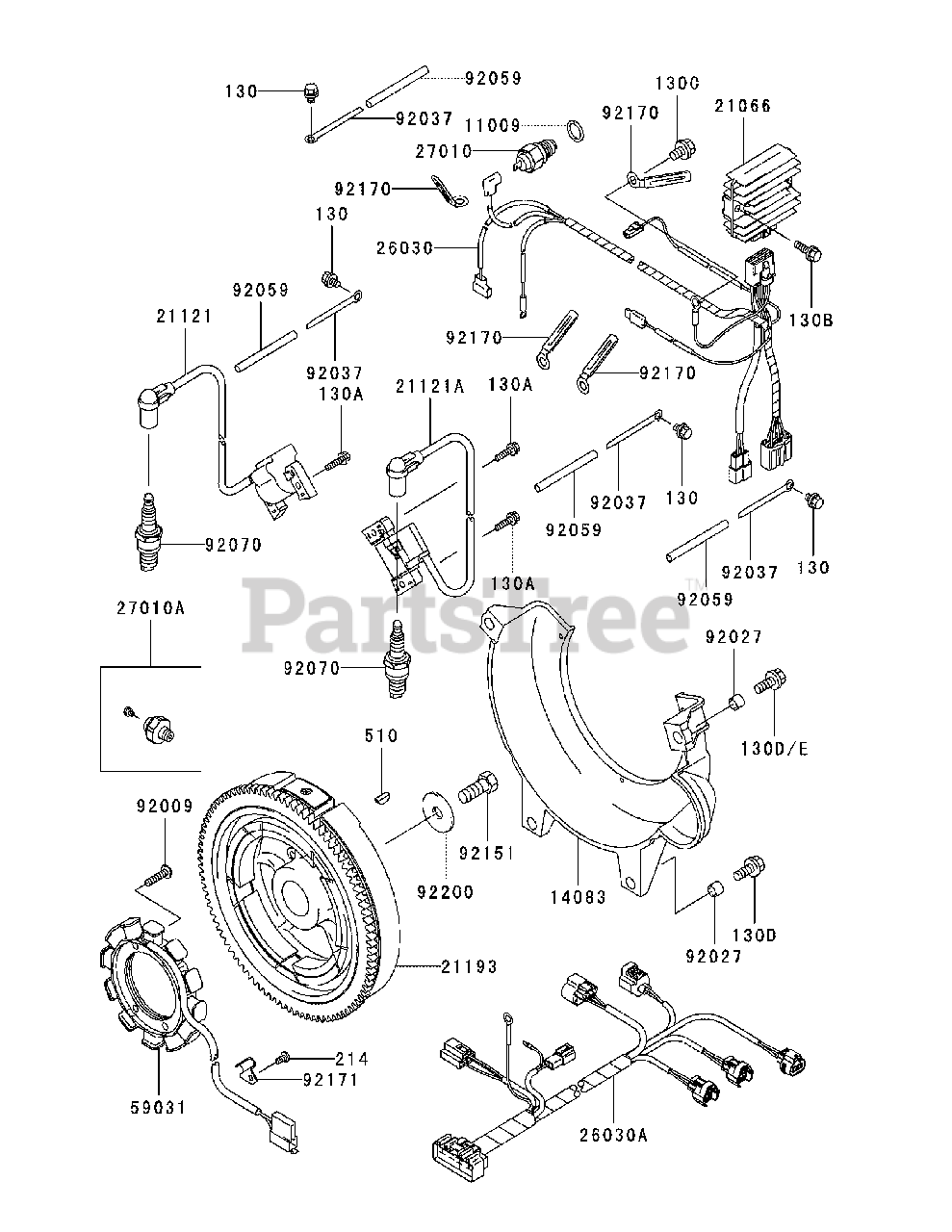

M60-KW LC (53AJ8CT6050) - Cub Cadet 60" Tank Zero-Turn Mower, 29hp Kawasaki FD791D-CS05 Electrical Equipment Parts Diagram

60" Tank Zero-Turn Mower, 29hp Kawasaki

FD791D-CS05 Electrical Equipment Parts Diagram

  • Title

11009

Cub Cadet KM-11009-2766

Gasket, 16x24x1

$1.49

$

In Stock, Qty 9

0

14083

Cub Cadet KM-14083-2055

Cover-Flywheel

$41.99

$

Usually ships in 2-5 days

0

21066

Cub Cadet KM-21066-2070

Regulator-Voltage

$131.99

$

In Stock, only 3 left!

0

21121

Cub Cadet KM-21121-2090

Coil-Ignition, No.1
(Superseded to KM-21121-6004)

$79.99

$

Usually ships in 3-6 days

0

21121A

Cub Cadet KM-21121-2091

Coil-Ignition, No. 2
(Superseded to KM-21121-6005)

$79.99

$

Usually ships in 3-6 days

0

21193

Cub Cadet KM-21193-2187

Flywheel Assy
(Superseded to KM-21193-0032)

$526.99

$

Usually ships in 2-5 days

0

26030

Cub Cadet KM-26030-2324

Harness

$67.99

$

Usually ships in 2-5 days

0

26030A

Cub Cadet KM-26030-2331

Harness

$112.99

$

Usually ships in 2-5 days

0

27010

Cub Cadet KM-27010-2182

Switch

$38.99

$

In Stock, only 1 left!

0

27010A

Cub Cadet KM-27010-2234

Switch
(Superseded to KM-27010-0851)

$19.99

$

In Stock, only 1 left!

0

59031

Cub Cadet KM-59031-2123

Coil-Charging

$196.99

$

In Stock, only 1 left!

0

92009

Cub Cadet KM-92009-2273

Screw, 6x25

$1.49

$

Usually ships in 2-5 days

0

92027

Cub Cadet KM-92027-1568

Collar, 8.3x11.5x9

$1.99

$

In Stock, only 4 left!

0

92037

Cub Cadet KM-92037-2171

Clamp

$1.99

$

Usually ships in 2-5 days

0

92059

Cub Cadet KM-92059-2011

Tube, 5x6x75

$0.99

$

In Stock, only 1 left!

0

92070

Cub Cadet KM-BPR4ES

Plug-Spark, BPR4ES(NGK), Solid

$3.49

$

In Stock, Qty 20+

0

92151

Cub Cadet KM-92154-7003

Bolt, 12x30

$4.99

$

In Stock, Qty 9

0

92170

Cub Cadet KM-92170-2060

Clamp

$3.99

$

Usually ships in 2-5 days

0

92171

Cub Cadet KM-92171-2060

Clamp

$1.99

$

Usually ships in 2-5 days

0

92200

Cub Cadet KM-92200-2119

Washer, 12.2x40x3.0

$6.49

$

Usually ships in 2-5 days

0

130

Cub Cadet KM-130J0608

Bolt-Flanged, 6x8

$

$

Not available

130A

Cub Cadet KM-130P0520

Bolt-Flanged, 5x20

$

$

Not available

130B

Cub Cadet KM-130CA0620

Bolt-Flanged, 6x20

$1.49

$

In Stock, Qty 6

0

130C

Cub Cadet KM-130G0812

Bolt-Flanged, 8x12

$

$

Not available

130D

Cub Cadet KM-130G0825

Bolt-Flanged, 8x25

$

$

Not available

130E

Cub Cadet KM-130P0830

Bolt-Flanged, 8x30
(Superseded to KM-130CA0830)

$2.99

$

Usually ships in 2-5 days

0

214

Cub Cadet KM-214B0510

Screw-Pan, 5x10

$

$

Not available

510

Cub Cadet KM-510A5100

Key-Woodruff

$3.49

$

In Stock, Qty 9

0
