M60-KW LC (53BB5GFX750) - Cub Cadet 60" Tank Zero-Turn Mower, 29hp Kawasaki Hydro Pump Assembly Parts Diagram

60" Tank Zero-Turn Mower, 29hp Kawasaki

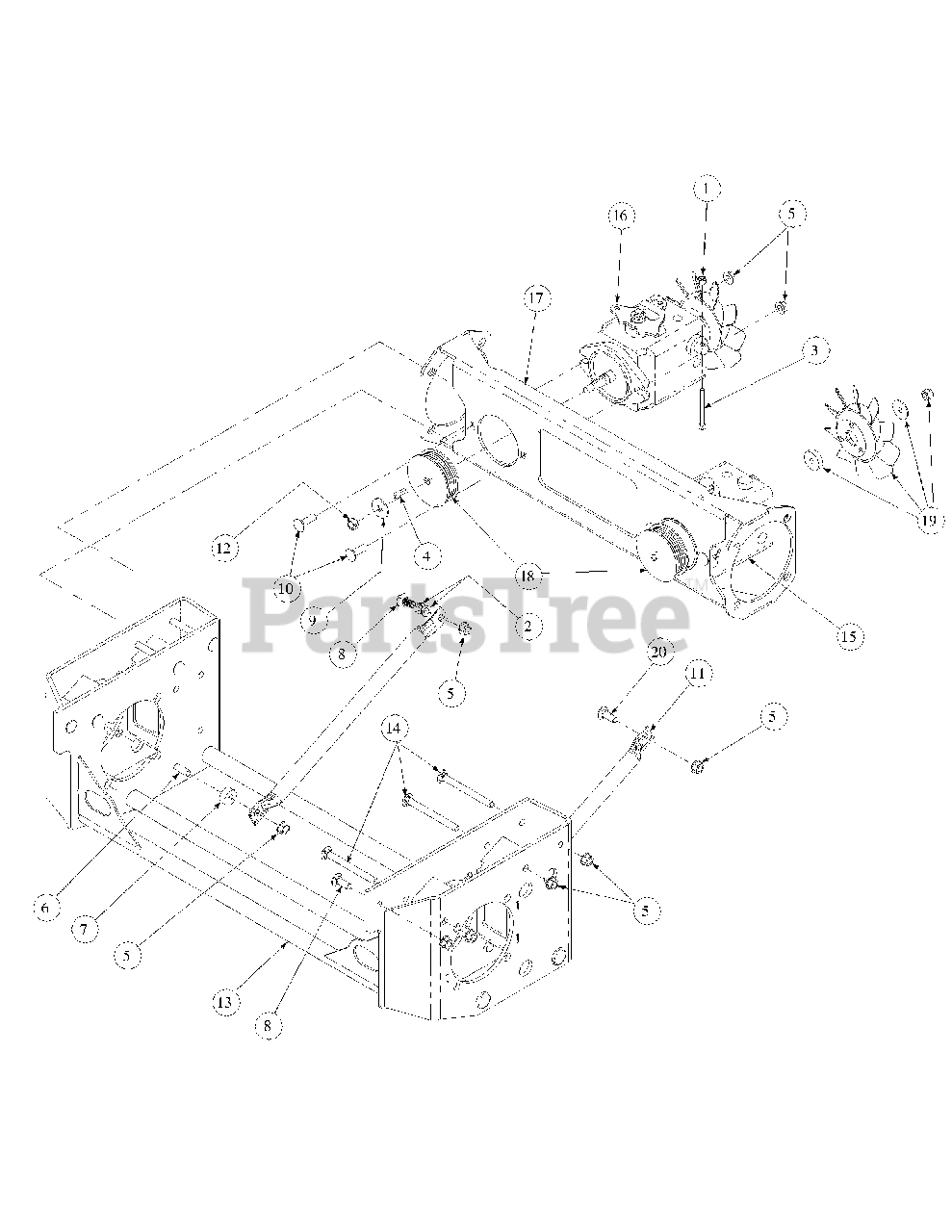

Hydro Pump Assembly Parts Diagram

  • Title

1

Cub Cadet 00012152

Lock Nut, Nylon Insert, 1/4-20

$4.49

$

In Stock, only 1 left!

0

2

Cub Cadet 936-0169

Washer lock 3/8 zinc
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 00070040

Hex Cap Screw, 1/4-20 x 2.00

Note: NLA

$

$

Not available

4

Cub Cadet 00020628

Key, 3/16" x 7/8"

$7.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 00022560

Flange Lock Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3005

Hex Cap Screw, 2/8 -16 x 1.25

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 750-3119

Spacer, .406 ID x 1.00 OD x .38

$12.99

$

In Stock, only 1 left!

0

8

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1

$5.99

$

In Stock, only 4 left!

0

9

Cub Cadet 00012158

Flat Washer, 3/8

$4.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-3034

Carriage Screw, 3/8-16 x 1.25

$4.49

$

In Stock, only 2 left!

0

11

Cub Cadet 01002593-0637

Strut Frame

$

$

Not available

12

Cub Cadet 01007309

Hex Nut, 3/8-24

$5.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 01008050

Hydro Motor Frame Assembly

$

$

Not available

14

Cub Cadet 01008049

Carriage Bolt, 3/8-16 x 4.00
(Superseded to 710-05384)

$5.99

$

In Stock, Qty 20+

0

15

Cub Cadet 01009531P

Hydro Pump, RH

$1627.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 01009532P

Hydro Pump, LH

$

$

Not available

17

Cub Cadet 01009582

Hydro Pump Mounting Weldment

$

$

Not available

18

Cub Cadet 01009593

Hydro Pulley Pump

$146.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 01009631P

Kit, Fan BDP
(Superseded to HG-71172)

$39.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75

$4.49

$

Usually ships in 3-6 days

0
