M72-CT (53AB5JEZ750) - Cub Cadet 72" Tank Zero-Turn Mower, 28hp Caterpillar Diesel Electrical Assembly Parts Diagram

72" Tank Zero-Turn Mower, 28hp Caterpillar Diesel

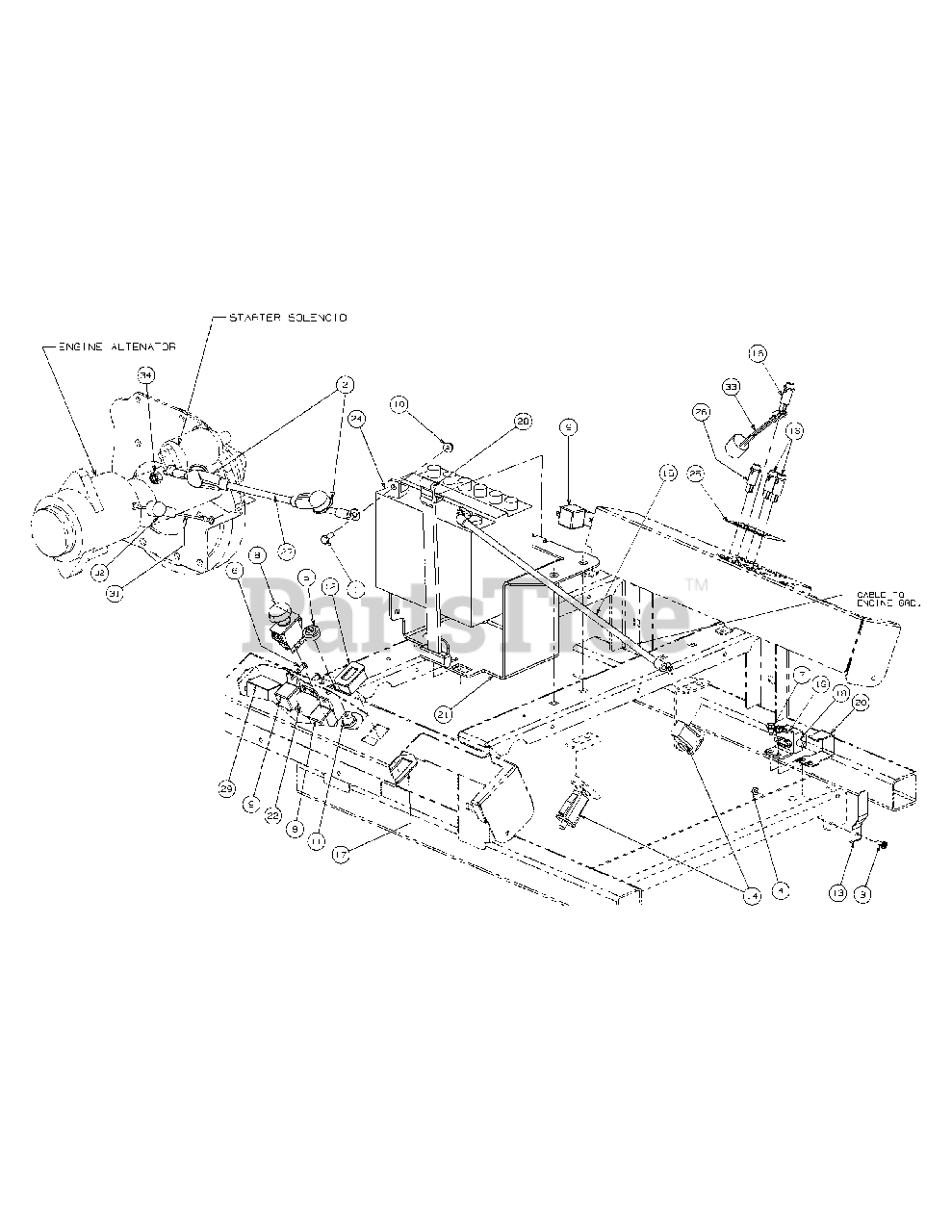

Electrical Assembly Parts Diagram

  • Title

1

Cub Cadet 00013131

Screw, Hex, Cap, 1/4-20 x .75

$6.49

$

In Stock, only 1 left!

0

2

Cub Cadet 00013258

Boot, 1" OD Rubber Battery-PST, Red

$9.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 00013669

Screw, Hex Washer, 10-32 x 1/2

$2.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 00014608

Lock Nut, Nylon Insert
(Superseded to 712-05003)

$3.49

$

In Stock, only 2 left!

0

5

Cub Cadet 00032097

Nut, W/Cap, 5/8-32 Ignition
(Superseded to 00032097P)

$

$

Not available

6

Cub Cadet 710-3256

Screw Button Head, 1/4-20 x .5

$11.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0599

Screw, TT, 1/4-20, 0.5, Hex Index Washer

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 01002111

Switch, Electric, PTO
(Superseded to 925-1716A)

$77.99

$

In Stock, Qty 13

0

9

Cub Cadet 01002251

Relay, 12V 40A

$61.99

$

In Stock, Qty 7

0

10

Cub Cadet 912-3027

Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 01003581P

Switch, Ignition, 6 Pin

$74.99

$

In Stock, Qty 8

0

12

Cub Cadet 925-05120A

Meter, Hour

$101.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 732-04200

Spring Retainer

$10.99

$

In Stock, only 1 left!

0

14

Cub Cadet 01008571P

Switch, Plunger
(Superseded to 925-3191A)

$57.99

$

In Stock, only 1 left!

0

15

Cub Cadet 01009623

Cable, Battery Black, 34"

$

$

Not available

16

Cub Cadet 01009816P

Light Indicator, 12V

$43.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 01009905

Bracket, PTO Switch Retainer

$28.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 02000165P

Switch, Plunger
(Superseded to 725-04232)

$52.99

$

In Stock, Qty 20+

0

19

Cub Cadet 02000349

Bracket, Plunger Switch

$

$

Not available

20

Cub Cadet 02000348

Clamp, Plunger Switch

$

$

Not available

21

Cub Cadet 02000897-0637

Mount Bracket, Battery

$

$

Not available

22

Cub Cadet 02000907

Interlock Time Delay Shutdown

$88.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 925-0453G

Battery, 320CCA

$

$

Not available

25

Cub Cadet 02001115

Decal, Engine Light

$

$

Not available

26

Cub Cadet 02001350

Light Indicator, 12V

$31.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 02002059

Cable, Battery Red, 42"

$39.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 723-3064

Strap, Battery

$31.99

$

In Stock, only 3 left!

0

29

Cub Cadet 925-04218

Timer Relay

$

$

Not available

30

Cub Cadet 725-0157

Tie, Cable, 3/16 x .05 x 7.4"

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 02000987

Wire, Alternator Charge

$

$

Not available

32

Cub Cadet 02002346

Cover, Alternator

$

$

Not available

33

Cub Cadet 02002588

Alarm, High Temperature

$

$

Not available

34

Cub Cadet 01003561

Nut, Hex, Center Lock, M8

$

$

Not available

Cub Cadet 02000915

Harness Assembly

Note: (not shown)

$

$

Not available
