M72-CT (53AL8CT8050) - Cub Cadet 72" Tank Zero-Turn Mower, 28hp Caterpillar Diesel Hydro Hose & Pump Assembly Parts Diagram

72" Tank Zero-Turn Mower, 28hp Caterpillar Diesel

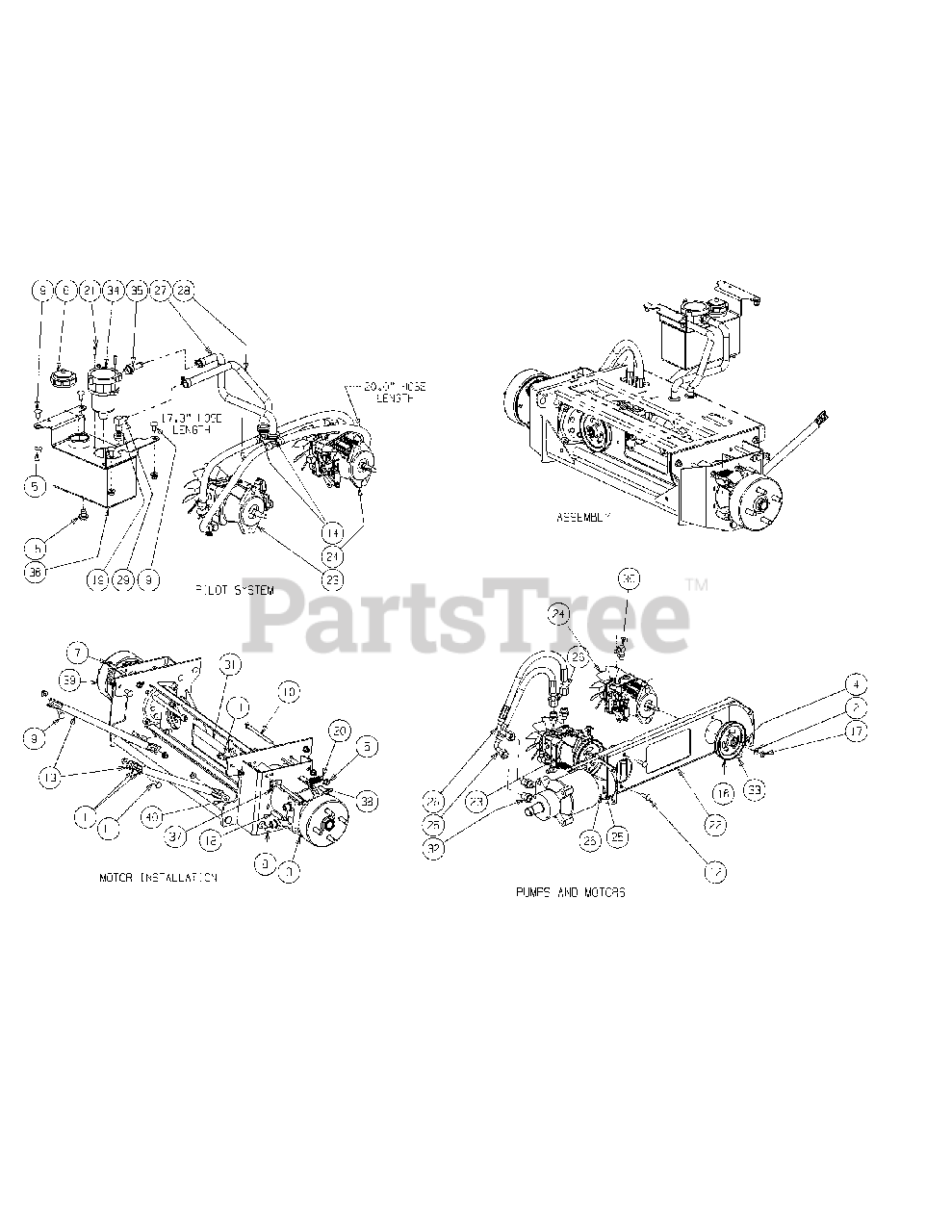

Hydro Hose & Pump Assembly Parts Diagram

  • Title

1

Cub Cadet 00012157

Washer lock 3/8 zinc
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 00012158

Flat Washer, 3/8

$4.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 00012428

Washer lock 3/8 zinc

$7.49

$

In Stock, only 2 left!

0

4

Cub Cadet 00020628

Key, 3/16" x 7/8"

$7.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 00022560

Flange Lock Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 00030261

Cap, Hydro Oil Tank

$39.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 00034167

Hex Cap Screw, 3/8-16 x 5.00

$

$

Not available

8

Cub Cadet 01000369

Hex Cap Screw, 3/8 -16 x 1.25
(Superseded to 710-3005)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 01000372

Carriage Bolt, 3/8-16 x .75 LG.
(Superseded to 710-3178)

$4.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 01000642

Carriage Bolt, 3/8-16 x 5.50

$18.99

$

In Stock, only 3 left!

0

11

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1

$5.99

$

In Stock, only 4 left!

0

12

Cub Cadet 01002010

Carriage Screw, 3/8-16 x 1.25
(Superseded to 710-3034)

$4.49

$

In Stock, only 2 left!

0

13

Cub Cadet 01001618

Strut Frame
(Superseded to 01002593-0637)

$

$

Not available

14

Cub Cadet 01004040

Grommet, .75 ID
(Superseded to 735-04285)

$4.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 01004192

Oil Pan Drain Plug w/ Seal
(Superseded to 738-0940)

$

$

Not available

16

Cub Cadet 01006799

Hydro Pump Pulley

$192.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 01007309

Hex Nut, 3/8-24

$5.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 01008449

Socket Head Capscrew, 1/2-13; 6-1/2

$13.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 02000296

Grommet Fitting, .54 ID x .78 OD

$21.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 02000401

Spring Extension, .740 OD x 2.656

$10.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 02000841

Socket Low Head Cap Screw, 1/4-20 x 0.75

$5.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 02001088

Hydro Pump Mounting Bracket

$

$

Not available

23

Cub Cadet 02001100

Hydro Pump, BDP-12, LH
(Superseded to 02001100P)

$2122.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 01009631

Kit, Fan
(Superseded to HG-71172)

Note: (Not shown)

$39.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 02001101

Hydro Pump, BDP-12, RH
(Superseded to 02001101P)

$2418.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 01009631

Kit, Fan
(Superseded to HG-71172)

Note: (Not shown)

$39.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 02001102

Hose Assembly

$

$

Not available

26

Cub Cadet 02001103

Hose Assembly

$

$

Not available

27

Cub Cadet 02001106

Hose Assembly, Pilot includes:

$

$

Not available

27

Cub Cadet 02001175

Tee Fitting

Note: (Not shown)

$29.99

$

In Stock, only 2 left!

0

27

Cub Cadet N/A

Hose Clamp

Note: (Purchase locally)

$

$

Currently unavailable

27

Cub Cadet N/A

Hose, .50 ID x .75 OD

Note: (Purchase locally)

$

$

Currently unavailable

28

Cub Cadet 02001107

Hose Assembly, Drain includes:

$107.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 02001175

Tee Fitting

Note: (Not shown)

$29.99

$

In Stock, only 2 left!

0

28

Cub Cadet N/A

Hose Clamp

Note: (Purchase locally)

$

$

Currently unavailable

28

Cub Cadet N/A

Hose, .50 ID x .75 OD

Note: (Purchase locally)

$

$

Currently unavailable

29

Cub Cadet 02001151

Fitting Elbow Spur, 5/8 x 1/2

$

$

Not available

30

Cub Cadet 02001160

Fitting Elbow, 9/16 x 1/2

$63.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 02001492

Hydro Motor Frame Assembly

$

$

Not available

32

Cub Cadet 02001715

Adaptor Fitting, 8 x 10
(Superseded to 737P05711)

$16.99

$

In Stock, only 1 left!

0

33

Cub Cadet 02001975

Adaptor Fitting, 8 x 8

$

$

Not available

34

Cub Cadet 02002257

Hydraulic In-Tank Filter includes:

$185.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 02002258

Replacement Filter Element

Note: (Not shown)

$52.99

$

In Stock, Qty 15

0

35

Cub Cadet 02002557

Fitting, 3/4 ORB x 1/2 Tube

$

$

Not available

36

Cub Cadet 02002703

Hydraulic Tank Assembly
(Superseded to 02002701-0637)

$

$

Not available

37

Cub Cadet 02002899

Rear Cable Mounting Bracket

$

$

Not available

38

Cub Cadet 02002967

Hydro Motor, Left Hand Assembly w/ Brake & Drum
(Superseded to 02002967P)

$2333.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 02002968

Hydro Motor, Right Hand Assembly w/ Brake & Drum
(Superseded to 02002968P)

$2245.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 750-3119

Spacer .406 ID x 1.0 OD

$12.99

$

Usually ships in 3-6 days

0

Cub Cadet 761-04074

Brake Shoe, Set of Two
(Superseded to 961-04074)

Note: (Not shown) for Hydro Motor

$82.99

$

Usually ships in 3-6 days

0

Cub Cadet 02002058

Lubricant, OIL-RIMULA 15W/40, quart
(Superseded to 737-04325QT)

Note: (Not shown)

$14.99

$

In Stock, Qty 8

0
