M72-KW (53AI8CT8050) - Cub Cadet 72" Tank Zero-Turn Mower, 37hp Kawasaki (2009 & Before) Fabricated Deck Spindle Assembly (2008 & Before) Parts Diagram

72" Tank Zero-Turn Mower, 37hp Kawasaki

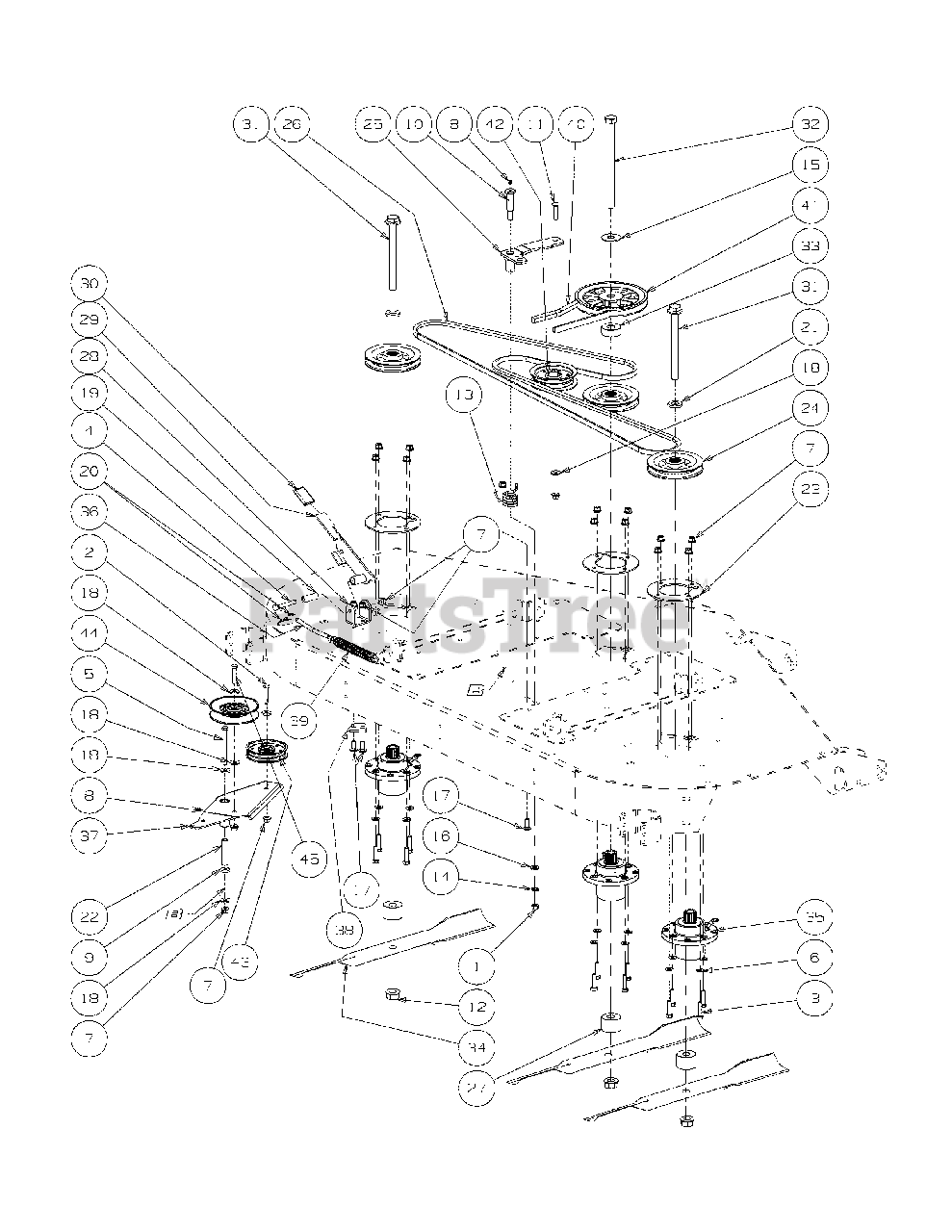

Fabricated Deck Spindle Assembly (2008 & Before) Parts Diagram

  • Title

1

Cub Cadet 912-3019

Hex Nut, 7/16-14
(Superseded to 712-3019)

$6.49

$

In Stock, only 2 left!

0

2

Cub Cadet 00008495

Hex Cap Screw, 3/8-16 x 1-3/4

$6.49

$

In Stock, Qty 9

0

3

Cub Cadet 00011438

Hex Cap Screw, 3/8-16 x 1-1/2
(Superseded to 710-06021)

$3.49

$

In Stock, only 2 left!

0

4

Cub Cadet 00011861

Hex Cap Screw, #8-16 x 2-1/2
(Superseded to 710-0859)

$6.49

$

In Stock, Qty 20+

0

5

Cub Cadet 00011925

Hex Cap Screw, 3/8-16, 4.00
(Superseded to 710-0411)

$7.99

$

In Stock, Qty 20+

0

6

Cub Cadet 00012158

Flat Washer, 3/8

$4.49

$

In Stock, Qty 10

0

7

Cub Cadet 00022560

Flange Lock Hex Nut, 3/8-16
(Superseded to 712-05007)

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.49

$

In Stock, Qty 16

0

9

Cub Cadet 00083192

Idler Washer
(Superseded to 736-0258)

$4.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 01000302

Shoulder Screw, 7/16-14
(Superseded to 738-3102)

$19.99

$

In Stock, Qty 12

0

11

Cub Cadet 710-0560

Hex Carriage Screw, 3/8-16, 1.75

$6.49

$

In Stock, Qty 17

0

12

Cub Cadet 712-3078

Flange Hex Nut, 3/4-16

$9.49

$

In Stock, Qty 20+

0

13

Cub Cadet 932-3009

Torsion Idler Spring

$22.99

$

In Stock, Qty 20+

0

14

Cub Cadet 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 736-3014

Flat Washer, .781 ID 2.00 OD, .105

$4.49

$

In Stock, Qty 19

0

16

Cub Cadet 936-3015

Flat Washer, .469 ID, .875 OD, .105

$3.99

$

In Stock, only 3 left!

0

17

Cub Cadet 710-3168

Carriage Bolt, 3/8-16 x 1

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 736-3052

Flat Washer, .406 ID, 1.0 OD, .105

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 01002751

Spacer, .39 ID x .63 OD x 1.75

$13.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 914-0104

Cotter Pin, .072 x 1.12
(Superseded to 714-0104)

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 01003123

Spacer .812 ID x .268 LG
(Superseded to 750-05553)

$9.49

$

In Stock, Qty 20+

0

22

Cub Cadet 01003245

Spacer, .39 ID x .625 OD x 2.75

$17.99

$

In Stock, only 1 left!

0

23

Cub Cadet 01004478-0637

Aluminum Spindle Support Plate
(Superseded to 703-08898)

$39.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 01007499

V-Pulley, 5.75 OD

$157.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 01007786

Idler Arm Assembly includes:

$

$

Not available

25

Cub Cadet 01000308

Bearing Sleeve
(Superseded to 741-04555)

$15.99

$

In Stock, Qty 10

0

26

Cub Cadet 01007937

V-Belt, B Section x 124.0 Lg
(Superseded to 01007937P)

$102.99

$

In Stock, only 2 left!

0

27

Cub Cadet 01008018

Spacer, .760 ID x 2.00 OD x .330

$47.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 01008222-0637

Tension Idler Bracket

$24.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 01008247-0637

Handle Tension Weldment

$81.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 01008270

Tension Idler Handle Grip

$26.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 01008542

Hex Cap Screw, 3/4-16, 7.50

$28.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 01008543

Hex Cap Screw, 3/4-16, 9.50

$39.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 750-05184

Spacer, .76 ID x 2.0 OD x .790

$34.99

$

In Stock, Qty 5

0

34

Cub Cadet 02000568

Bahia Blade, 25.0, .756 ID
(Superseded to 742-04418-0637)

$

$

Not available

35

Cub Cadet 02000920P

Aluminum Spindle Assembly
(Superseded to 918-05132)

$354.99

$

In Stock, Qty 10

0

36

Cub Cadet 02001574

Spring Tension Rod

$35.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 02003759

Idler Arm Assembly Service Kit

$168.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 01000308

Bearing Sleeve in idler arm
(Superseded to 741-04555)

$15.99

$

In Stock, Qty 10

0

38

Cub Cadet 02004063

Adaptor Plate
(Superseded to 02004064)

$

$

Not available

39

Cub Cadet 02004069

Extension Spring, .94 OD x 7.72

$27.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 02004377

V-Belt, B Section x 107.0
(Superseded to 02004377P)

$155.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 02004379

V-Pulley, 7.450 OD x .750 Bore, Cast

$186.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 02005077

Idler Pulley, 4.06 OD

$33.99

$

In Stock, Qty 20+

0

43

Cub Cadet 02004447

PULLEY-FLAT IDLER 4.875

$53.99

$

In Stock, Qty 20+

0

44

Cub Cadet 02005079

Idler Pulley, 5.06 Dia.
(Superseded to 756-04522)

$36.99

$

In Stock, Qty 17

0

45

Cub Cadet 00002528

Hex Cap Screw, 3/8-16 x 2.00

$6.49

$

In Stock, Qty 10

0

Cub Cadet 02003677

Label, Belt Routing
(Superseded to 777I23639)

$6.99

$

Usually ships in 3-6 days

0
