MAG-61 (MAG-72) - Scag Magnum III Three-Wheel Riding Mower (SN: 60000 - 69999) CUTTER BRAKE LINKAGE Parts Diagram

Magnum III Three-Wheel Riding Mower

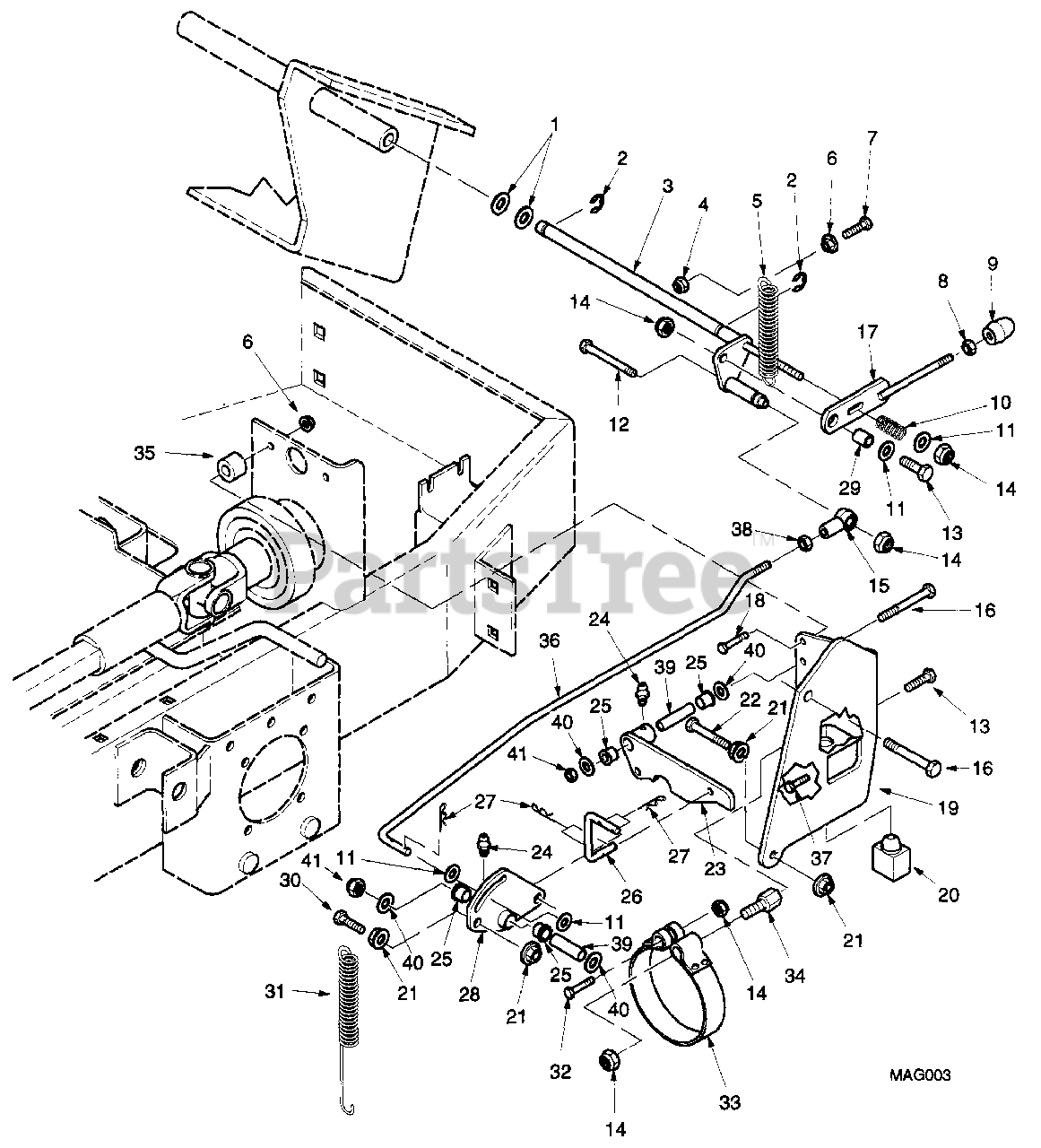

CUTTER BRAKE LINKAGE Parts Diagram

  • Title

1

Scag 04041-08

FLATWASHER, 3/4(.766 X 1.250 X .060)

$0.99

$

In Stock, Qty 20+

0

1

Scag 04041-08S

FLATWASHER, 3/4(.766 X 1.250 X .035)

$0.99

$

In Stock, Qty 20+

0

2

Scag 04050-02

RETAINING RING - .75 EXT

$0.99

$

In Stock, Qty 10

0

3

Scag 45702

LEVER, CLUTCH ENGAGE

$

$

Not available

4

Scag 04021-10

HEX LOCKNUT, ELASTIC STOP, 5/16-18

$0.99

$

In Stock, Qty 20+

0

5

Scag 481163

SPRING, CLUTCH LEVER

$21.99

$

Usually ships in 2-12 days

0

6

Scag 04019-03

SERR. FL. HEX NUT, 5/16-18

$0.99

$

In Stock, Qty 16

0

7

Scag 04017-17

SERR. FL. HEX HEAD CAPSCREW, 5/16-18 X 1

$0.99

$

Usually ships in 2-12 days

0

8

Scag 04020-04

NUT, HEX, 3/8-16

$0.99

$

In Stock, Qty 20+

0

9

Scag 48092

GRIP, CLUTCH LEVER

$5.99

$

Usually ships in 2-12 days

0

10

Scag 481244

SPRING, FRICTION CONTROL

$

$

Not available

11

Scag 04041-07

FLATWASHER, 3/8(.391 X .938 X .105)

$0.99

$

In Stock, Qty 20+

0

12

Scag 04001-51

BOLT, HEX HEAD, 3/8-16 X 3-3/4

$1.49

$

In Stock, Qty 20+

0

13

Scag 04017-26

SERR. FL. HEX HEAD CAPSCREW, 3/8-16 X 3/4

$1.49

$

Usually ships in 2-12 days

0

14

Scag 04021-09

HEX LOCKNUT, ELASTIC STOP, 3/8-16

$0.99

$

In Stock, Qty 20+

0

15

Scag 48464

BALL JOINT, RH THD, 3/8-16

$23.99

$

In Stock, only 1 left!

0

16

Scag 04001-53

BOLT, HEX HEAD, 5/16-18 X 2-1/2

$0.99

$

In Stock, Qty 13

0

17

Scag 45693

LEVER, CLUTCH

$

$

Not available

18

Scag 04017-19

SERR. FL. HEX HEAD CAPSCREW, 5/16-18 X 1-1/2

$1.49

$

Usually ships in 2-12 days

0

19

Scag 421805

BASE, BRAKE ASSEMBLY

$89.99

$

Usually ships in 2-12 days

0

20

Scag 48522

SWITCH, INTERLOCK
(Superseded to 481474)

$106.99

$

In Stock, only 3 left!

0

21

Scag 04019-04

SERR. FL. HEX NUT, 3/8-16

$0.99

$

In Stock, Qty 20+

0

22

Scag 04001-31

BOLT, HEX HEAD, 3/8-16 X 2-1/2

$0.99

$

In Stock, Qty 10

0

23

Scag 46875

LEVER, BRAKE ENGAGE(INCLUDES 24, 25)

$57.99

$

Usually ships in 2-12 days

0

24

Scag 48114-05

GREASE FITTING, SHORT

$1.49

$

In Stock, Qty 10

0

25

Scag 48100-04

BUSHING, OILITE - .50 I.D.

$0.99

$

In Stock, only 4 left!

0

26

Scag 44109

ROD, CLUTCH ENGAGE

$11.99

$

Usually ships in 2-12 days

0

27

Scag 04062-02

COTTER PIN, HAIR(.080 X 1.19)

$0.99

$

In Stock, Qty 20+

0

28

Scag 46876

BELLCRANK, CLUTCH ENGAGE(INCLUDES 24, 25)

$114.99

$

Usually ships in 2-12 days

0

29

Scag 43212

SLEEVE

$4.49

$

Usually ships in 2-12 days

0

30

Scag 04001-20

BOLT, HEX HEAD, 3/8-16 X 1-1/2

$0.99

$

In Stock, Qty 17

0

31

Scag 481034

SPRING, BRAKE

$7.99

$

Usually ships in 2-12 days

0

32

Scag 04001-26

BOLT, HEX HEAD, 3/8-16 X 1-1/4

$0.99

$

Usually ships in 2-12 days

0

33

Scag 481170

BRAKE BAND

$39.99

$

Usually ships in 2-12 days

0

34

Scag 43337

ANCHOR, BRAKE

$45.99

$

Usually ships in 2-12 days

0

35

Scag 43336

SPACER, BRAKE

$9.99

$

Usually ships in 2-12 days

0

36

Scag 44110

ROD, CLUTCH ENGAGE

$18.99

$

Usually ships in 2-12 days

0

37

Scag 04017-20

SERR. FL. HEX HEAD CAPSCREW, 5/16-18 X 1-3/4

$1.49

$

Usually ships in 2-12 days

0

38

Scag 04020-14

HEX NUT, 3/8-24

$0.99

$

In Stock, Qty 7

0

39

Scag 43110

SLEEVE, CONTROL LEVER

$8.49

$

Usually ships in 2-12 days

0

40

Scag 04040-04

FLATWASHER, 5/16(.344 X .688 X .065)

$0.99

$

In Stock, Qty 20+

0

41

Scag 04021-10

HEX LOCKNUT, ELASTIC STOP, 5/16-18

$0.99

$

In Stock, Qty 20+

0
