MAG-61 (MAG-72) - Scag Magnum III Three-Wheel Riding Mower (SN: 60000 - 69999) CUTTER DECK SUPPORT MAG-61 Parts Diagram

Magnum III Three-Wheel Riding Mower

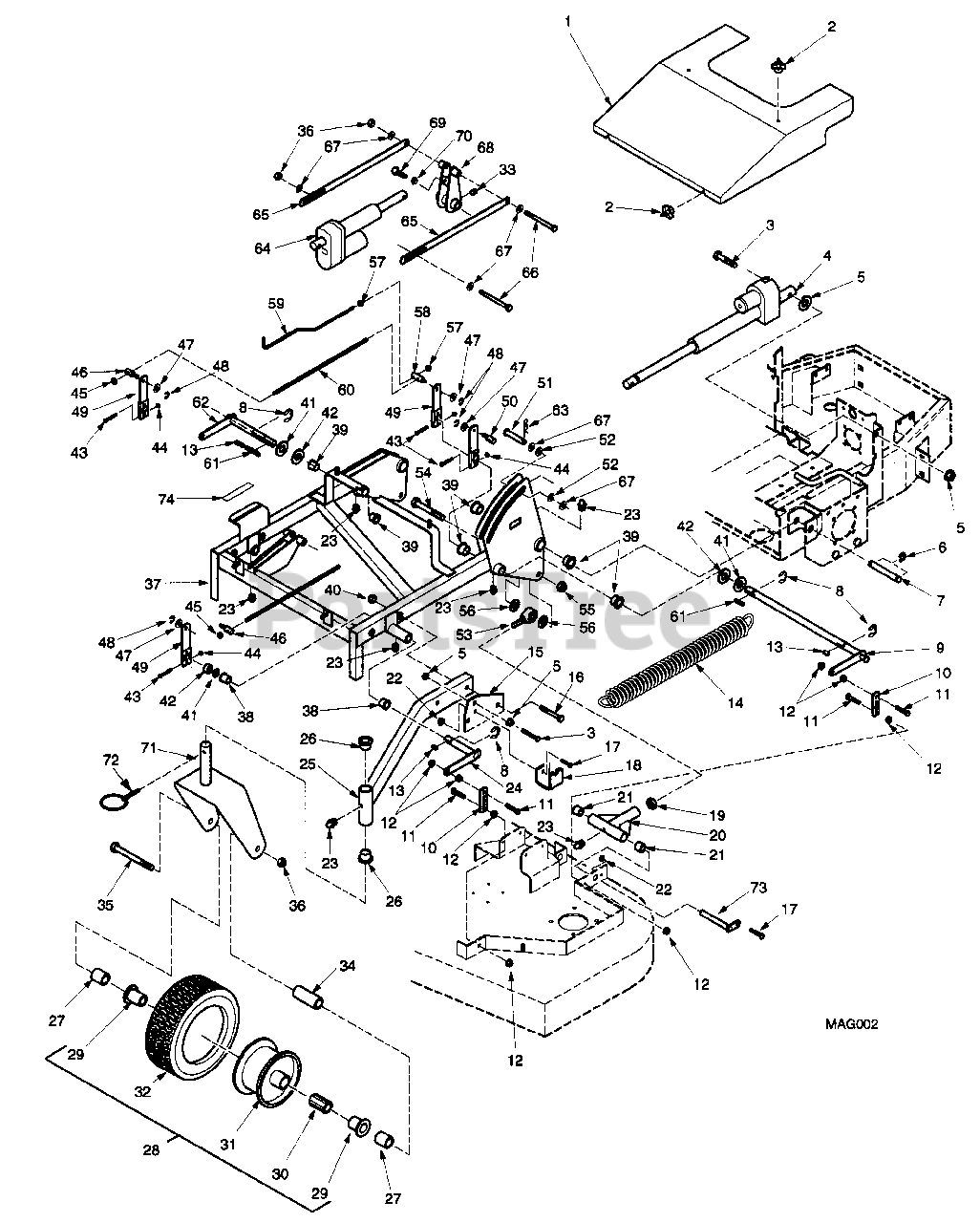

CUTTER DECK SUPPORT MAG-61 Parts Diagram

  • Title

1

Scag 45733

COVER, BELT

$

$

Not available

2

Scag 04029-03

WINGNUT, PLASTIC, 3/8-16

$2.49

$

In Stock, Qty 20+

0

3

Scag 04001-52

BOLT, HEX HEAD, 1/2-13 X 2-1/2

$1.99

$

In Stock, only 1 left!

0

4

Scag 481195

ACTUATOR, DECK LIFT

$1116.99

$

Usually ships in 2-12 days

0

5

Scag 04019-06

SERR. FL. HEX NUT, 1/2-13

$0.99

$

In Stock, Qty 20+

0

6

Scag 04050-05

RETAINING RING, 1.125 EXT

$0.99

$

In Stock, Qty 20+

0

7

Scag 43356

PIN, DECK SUPPORT MOUNTING

$38.99

$

Usually ships in 2-12 days

0

8

Scag 04050-08

RETAINING RING, 1.00 EXT "E"

$0.99

$

In Stock, Qty 20+

0

9

Scag 45728

LIFT BELLCRANK, LH REAR

$202.99

$

Usually ships in 2-12 days

0

10

Scag 421878

LINK, DECK SUPPORT

$17.99

$

Usually ships in 2-12 days

0

11

Scag 04001-117

BOLT, HEX HEAD, 7/16-14 X 1-3/4

$1.49

$

In Stock, only 3 left!

0

12

Scag 04019-05

SERR. FL. HEX NUT, 7/16-14

$0.99

$

In Stock, Qty 12

0

13

Scag 04063-19

KEY, 1/4 X 1/4 X 3/4

$0.99

$

In Stock, only 3 left!

0

14

Scag 481215

SPRING, DECK LIFT

$60.99

$

Usually ships in 2-12 days

0

15

Scag 421838

ANCHOR, DECK SPRING

$

$

Not available

16

Scag 04001-119

BOLT, HEX HEAD, 5/8-11 X 5-1/2

$6.99

$

Usually ships in 2-12 days

0

17

Scag 04017-16

SERR. FL. HEX HEAD CPSCR, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 10

0

18

Scag 422027

RETAINER, SPRING

$

$

Not available

19

Scag 04020-21

HEX NUT, 3/4-16

$

$

Currently unavailable

20

Scag 46865

PUSH ROD ASSY(INCLUDES 19, 21, 23, 53)

$398.99

$

Usually ships in 2-12 days

0

21

Scag 48100-06

BUSHING, OLITE - 3/4 ID

$1.49

$

In Stock, Qty 9

0

22

Scag 04019-03

SERR. FL. HEX NUT, 5/16-18

$0.99

$

In Stock, Qty 16

0

23

Scag 48114-04

GREASE FITTING

$1.49

$

In Stock, Qty 20+

0

24

Scag 45727

LIFT BELLCRANK, FRONT

$105.99

$

Usually ships in 2-12 days

0

25

Scag 45722

TUBE, LH CASTER(SHOWN)

$

$

Not available

25

Scag 45723

TUBE, RH CASTER(NOT SHOWN)

$

$

Not available

26

Scag 48100-08

BUSHING, OLITE - 1.00 ID

$5.49

$

Usually ships in 2-12 days

0

27

Scag 43041

SPACER

$5.49

$

Usually ships in 2-12 days

0

28

Scag 48537

WHEEL ASSEMBLY, CASTER(INCLUDES 29,30,31,32)

$254.99

$

Usually ships in 2-12 days

0

29

Scag 48006-07

RETAINER
(Superseded to 481770)

$4.99

$

In Stock, Qty 20+

0

30

Scag 48006-06

BEARING, ROLLER
(Superseded to 481769)

$28.99

$

In Stock, Qty 16

0

31

Scag 48537-03

RIM
(Superseded to 481829)

$120.99

$

Usually ships in 2-12 days

0

32

Scag 48537-02

TIRE
(Superseded to 481830)

$64.99

$

In Stock, only 1 left!

0

33

Scag 04012-04

SETSCREW, HEX SOCKET, 5/16-18 X .75

$0.99

$

In Stock, Qty 12

0

34

Scag 43022

SLEEVE, CASTER WHEEL

$6.99

$

In Stock, Qty 9

0

35

Scag 04001-80

BOLT, HEX HEAD, 1/2-13 X 6-1/2

$5.99

$

In Stock, Qty 19

0

36

Scag 04021-07

HEX LOCKNUT, ELASTIC STOP, 1/2-13

$0.99

$

In Stock, Qty 20+

0

37

Scag 46869

FRAME, DECK SUPPORT(INCLUDES 23,38,39,74)
(Superseded to 461006)

$

$

Not available

38

Scag 48100-02

BUSHING, OLITE - 1-1/8 ID

$3.99

$

Usually ships in 2-12 days

0

39

Scag 48100-08

BUSHING OLITE - 1.00 ID

$5.49

$

Usually ships in 2-12 days

0

40

Scag 04021-13

HEX LOCKNUT, ELASTIC STOP, 5/8-11

$1.49

$

In Stock, Qty 11

0

41

Scag 04042-05

FLATWASHER, 1"(1.062 X 1.75 X .10)

$0.99

$

In Stock, Qty 20+

0

41

Scag 04041-14

FLATWASHER, 1"(1.062 X 1.50 X .048)

$0.99

$

In Stock, Qty 18

0

42

Scag 43353

SPACER

$

$

Not available

43

Scag 04001-45

BOLT, HEX HEAD, 3/8-16 X 2

$0.99

$

In Stock, Qty 13

0

44

Scag 04021-09

HEX LOCKNUT, ELASTIC STOP, 3/8-16

$0.99

$

In Stock, Qty 20+

0

45

Scag 04020-09

HEX NUT, 5/8-11

$0.99

$

In Stock, Qty 20+

0

46

Scag 43270

SWIVEL JOINT, RH

$20.99

$

Usually ships in 2-12 days

0

47

Scag 04040-09

FLATWASHER, 5/8(.656 X 1.312 X .095)

$0.99

$

In Stock, Qty 13

0

48

Scag 04050-01

RETAINING RING, 5/8 EXT "E"

$0.99

$

In Stock, Qty 20+

0

49

Scag 45731

LEVER, DECK LIFT

$

$

Not available

50

Scag 43271

SWIVEL JOINT, LH

$59.99

$

Usually ships in 2-12 days

0

51

Scag 04064-11

PIN, CLEVIS, 1/2 X 2.25

$2.99

$

In Stock, only 4 left!

0

52

Scag 04044-01

FLATWASHER, NYLON, 1"(.54 X 1.125 X 25)

$0.99

$

Usually ships in 2-12 days

0

53

Scag 481217

ROD END, MALE, 3/4-16 RH

$98.99

$

Usually ships in 2-12 days

0

54

Scag 04001-120

BOLT, HEX HEAD, 3/4-16 X 3

$

$

Currently unavailable

55

Scag 04021-14

HEX LOCKNUT, ELASTIC STOP, 3/4-16

$1.99

$

Usually ships in 2-12 days

0

56

Scag 43352

SPACER

$7.49

$

Usually ships in 2-12 days

0

57

Scag 04020-04

HEX NUT, 3/8-16

$0.99

$

In Stock, Qty 20+

0

58

Scag 43357

SWIVEL JOINT, LH

$

$

Not available

59

Scag 44113

ROD, HEIGHT INDICATOR

$

$

Not available

60

Scag 04004-15

STUD, MOWER LIFT

$52.99

$

Usually ships in 2-12 days

0

61

Scag 04063-01

KEY, 1/4 X 1/4 X 1-1/4

$1.49

$

In Stock, only 3 left!

0

62

Scag 45729

LIFT, BELLCRANK, RH REAR

$121.99

$

Usually ships in 2-12 days

0

63

Scag 04062-01

COTTER PIN, HAIR - 0.94 X 1.62

$0.99

$

In Stock, Qty 20+

0

64

Scag 481216

ACTUATOR, CUTTING HEIGHT

$2101.99

$

Usually ships in 2-12 days

0

65

Scag 421834

LINK, DECK TRAVEL LIMIT

$

$

Not available

66

Scag 04001-118

BOLT, HEX HEAD, 1/2-13 X 4-3/4

$4.49

$

Usually ships in 2-12 days

0

67

Scag 04040-07

FLATWASHER, 1/2(.531 X 1.06 X .095)

$0.99

$

In Stock, Qty 13

0

68

Scag 45730

LEVER, BELLCRANK ACTUATION

$

$

Not available

69

Scag 04001-72

BOLT, HEX HEAD, 1/2-13 X 2

$1.99

$

In Stock, only 2 left!

0

70

Scag 04020-07

HEX NUT, 1/2-13

$0.99

$

In Stock, only 3 left!

0

71

Scag 45325

YOKE, CASTER WHEEL

$232.99

$

Usually ships in 2-12 days

0

72

Scag 04066-01

QUICK PIN

$8.99

$

Usually ships in 2-12 days

0

73

Scag 45332

SHAFT, PUSH ROD
(Superseded to 451240)

$53.99

$

In Stock, Qty 11

0

74

Scag 481331

DECAL, CUTTING HEIGHT

$

$

Not available
