MAG-61 (MAG-72) - Scag Magnum III Three-Wheel Riding Mower (SN: 60000 - 69999) FORWARD/REVERSE LINKAGE Parts Diagram

Magnum III Three-Wheel Riding Mower

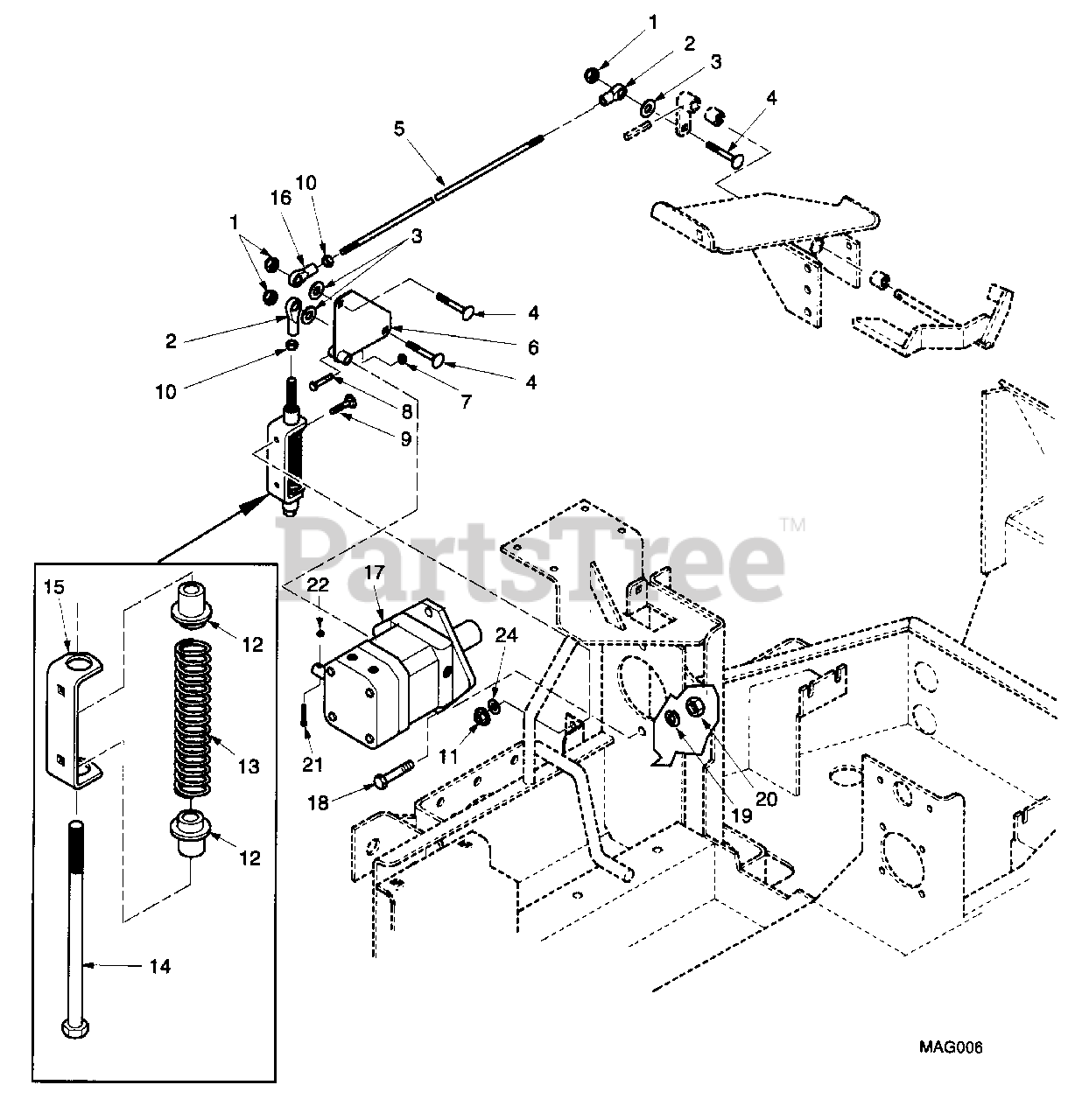

FORWARD/REVERSE LINKAGE Parts Diagram

  • Title

1

Scag 04021-09

HEX LOCKNUT, ELASTIC STOP, 3/8-16

$0.99

$

In Stock, Qty 20+

0

2

Scag 48544

BALL JOINT, 3/8-24 LH THREAD

$27.99

$

Usually ships in 2-12 days

0

3

Scag 04041-07

FLATWASHER, 3/8(.391 X .938 X .105)

$0.99

$

In Stock, Qty 20+

0

4

Scag 04003-05

CARRIAGE BOLT, 3/8-16 X 1-1/2

$0.99

$

In Stock, Qty 11

0

5

Scag 04004-22

ROD, TRANSMISSION CONTROL

$19.99

$

Usually ships in 2-12 days

0

6

Scag 45708

BELLCRANK, PUMP CONTROL

$

$

Not available

7

Scag 04021-08

HEX LOCKNUT, ELASTIC STOP, 1/4-20

$0.99

$

In Stock, Qty 10

0

8

Scag 04001-59

BOLT, HEX HEAD, 1/4-20 X 1-1/4

$0.99

$

In Stock, Qty 17

0

9

Scag 04003-04

CARRIAGE BOLT, 5/16-18 X 1

$0.99

$

In Stock, only 4 left!

0

10

Scag 04020-14

HEX NUT, 3/8-24

$0.99

$

In Stock, Qty 7

0

11

Scag 04019-03

SERR. FL. HEX NUT, 5/16-18

$0.99

$

In Stock, Qty 16

0

12

Scag 43257

BUSHING, SPRING KEEPER

$16.99

$

Usually ships in 2-12 days

0

13

Scag 48463

SPRING, NEUTRAL RETURN

$5.49

$

Usually ships in 2-12 days

0

14

Scag 48512

BOLT, NEUTRAL ADJUSTMENT, 3/8-24 X 6-3/4

$42.99

$

Usually ships in 2-12 days

0

15

Scag 421148

RETAINER, NEUTRAL SPRING

$21.99

$

Usually ships in 2-12 days

0

16

Scag 48464

BALL JOINT, 3/8-24 RH THREAD

$23.99

$

In Stock, only 1 left!

0

17

Scag 481102

HYDRAULIC PUMP

$5115.99

$

Usually ships in 2-12 days

0

18

Scag 04001-71

BOLT, HEX HEAD, 1/2-13 X 1-1/2

$1.49

$

In Stock, only 4 left!

0

19

Scag 04030-06

LOCKWASHER, 1/2

$0.99

$

In Stock, only 2 left!

0

20

Scag 04020-07

HEX NUT, 1/2-13

$0.99

$

In Stock, only 3 left!

0

21

Scag 04010-11

SCREW, ROUND HEAD, #10-32

$0.99

$

Usually ships in 2-12 days

0

22

Scag 04021-01

HEX NUT, ELASTIC STOP, #10-32

$0.99

$

In Stock, Qty 10

0

?23

Scag 04040-15

FLATWASHER, 5/16(.375 X .875 X .083)

$0.99

$

In Stock, Qty 9

0

24

UNKNOWN

$

$

Not available
