MAG-61 (MAG-72) - Scag Magnum III Three-Wheel Riding Mower (SN: 60000 - 69999) FUEL TANK AND LINES Parts Diagram

Magnum III Three-Wheel Riding Mower

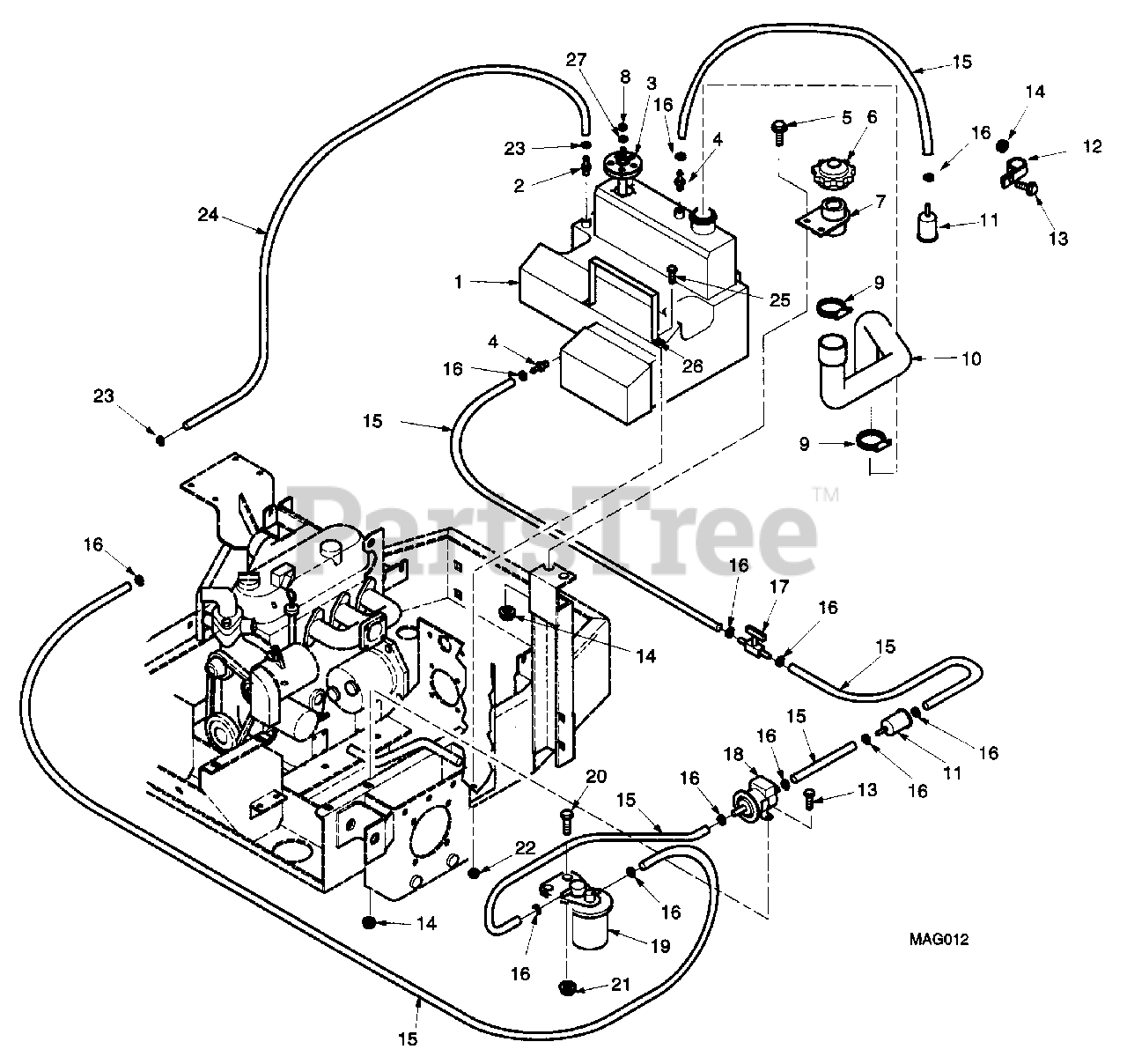

FUEL TANK AND LINES Parts Diagram

  • Title

1

Scag 46826

FUEL TANK(INCLUDES 2, 3, 4)
(Superseded to 46933)

$

$

Not available

2

Scag 481313

FITTING, RETURN LINE

$35.99

$

Usually ships in 2-12 days

0

3

Scag 481304

SENDER UNIT, FUEL LEVEL(INCL GASKET&SCREWS)

$104.99

$

Usually ships in 2-12 days

0

4

Scag 481312

FITTING, HOSE
(Superseded to 483749)

$12.99

$

Usually ships in 2-12 days

0

5

Scag 04017-16

SERR. FL. HEX HEAD CAPSCREW, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 10

0

6

Scag 481298

CAP, DIESEL FUEL
(Superseded to 481604)

$69.99

$

Usually ships in 2-12 days

0

7

Scag 45780

FILL NECK
(Superseded to 46957)

$

$

Not available

8

Scag 04020-01

HEX NUT, #10-32

$8.99

$

In Stock, Qty 20+

0

9

Scag 48136-08

CLAMP, HOSE

$4.49

$

Usually ships in 2-12 days

0

10

Scag 481296

HOSE, FUEL FILL

$156.99

$

Usually ships in 2-12 days

0

11

Scag 481307

FUEL PRE-FILTER

$48.99

$

Usually ships in 2-12 days

0

12

Scag 48030-08

CLAMP, FUEL FILTER

$

$

Not available

13

Scag 04017-05

SERR. FL. HEX HEAD CAPSCREW, 1/4-20 X 3/4

$0.99

$

In Stock, Qty 20+

0

14

Scag 04019-02

SERR. FL. HEX NUT, 1/4-20

$0.99

$

In Stock, Qty 20+

0

15

Scag 481178

HOSE, FUEL LINE, 5/16

$

$

Not available

16

Scag 48136-05

CLAMP HOSE

$3.99

$

In Stock, only 2 left!

0

17

Scag 481308

VALVE, FUEL SHUTOFF

$42.99

$

Usually ships in 2-12 days

0

18

FUEL PUMP, ELECTRIC

Note: AVAILABLE ONLY FROM THE ENGINE MANUFACTURER.

$

$

Not available

19

FUEL FILTER

Note: AVAILABLE ONLY FROM THE ENGINE MANUFACTURER.

$

$

Not available

20

Scag 04017-17

SERR. FL HEX HEAD CAPSCREW 5/16-18 X 1

$0.99

$

Usually ships in 2-12 days

0

21

Scag 04019-03

SERR. FL. HEX NUT, 5/16-18

$0.99

$

In Stock, Qty 16

0

22

Scag 04021-08

HEX LOCKNUT, ELASTIC STOP, 1/4-20

$0.99

$

In Stock, Qty 10

0

23

Scag 48059-03

FUEL HOSE CLAMP, 3/16

$

$

Not available

24

Scag 481179

HOSE FUEL LINE, 3/16

$0.99

$

Usually ships in 2-12 days

0

25

Scag 04017-04

SERR. FL. HEX HEAD CAPSCREW, 1/4-20 X 1-1/2

$0.99

$

In Stock, Qty 20+

0

26

Scag 422003

STRAP, FUEL TANK

$30.99

$

Usually ships in 2-12 days

0

27

Scag 04030-01

LOCKWASHER, #10

$0.99

$

Usually ships in 2-12 days

0
