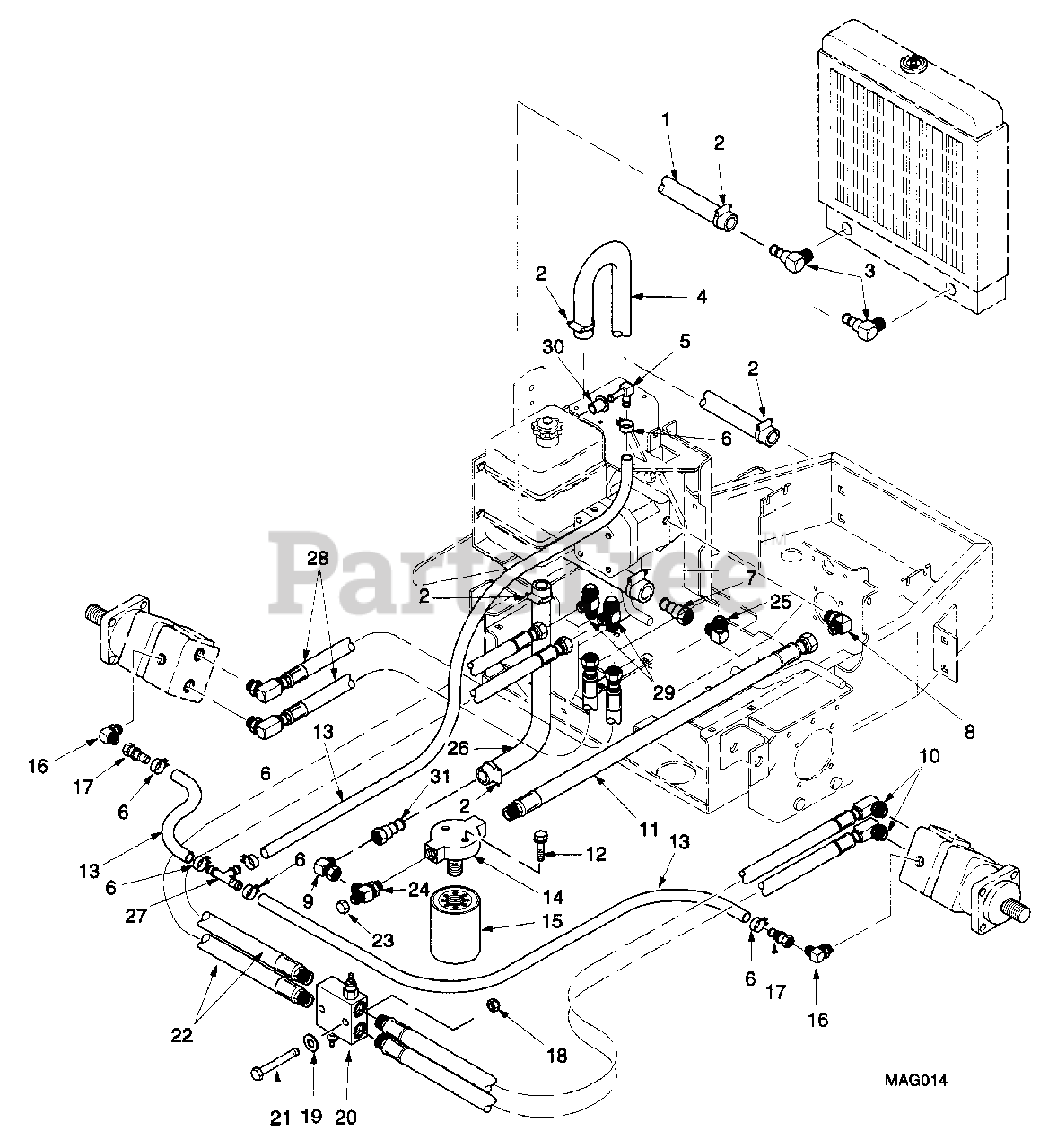

MAG-61 (MAG-72) - Scag Magnum III Three-Wheel Riding Mower (SN: 60000 - 69999) HYDRAULIC CIRCUITS Parts Diagram

Magnum III Three-Wheel Riding Mower

HYDRAULIC CIRCUITS Parts Diagram

  • Title

1

Scag 481292

HOSE, PUMP TO OIL COOLER, 5/8 HOSE BARB

$64.99

$

Usually ships in 2-12 days

0

2

Scag 48136-04

CLAMP, HOSE

$8.49

$

Usually ships in 2-12 days

0

3

Scag 481301-01

ELBOW, 90DEG,

$

$

Not available

4

Scag 481202

HOSE, OIL COOLER/RESERVOIR, 5/8&3/8 HOSE BARB

$

$

Not available

5

Scag 48939

ELBOW, 90DEG
(Superseded to 483748)

$9.49

$

In Stock, only 2 left!

0

6

Scag 48059-01

CLAMP, HOSE

$0.99

$

In Stock, Qty 20+

0

7

Scag 48936-02

COUPLING, HOSE, 7/8-14 SAE X 5/8 HOSE BARB

$16.99

$

Usually ships in 2-12 days

0

8

Scag 48350-13

ELBOW, 90DEG, 1-1/16-12 JIC X 7/8-14 O-RING

$23.99

$

Usually ships in 2-12 days

0

9

Scag 481203-01

ELBOW, 90DEG, 3/4 JIC SWIVEL X 3/4 JIC

$

$

Not available

10

Scag 481197

HOSE ASSEMBLY, LEFT MOTOR

$96.99

$

Usually ships in 2-12 days

0

11

Scag 481201

HOSE ASSEMBLY, PUMP INLET

$183.99

$

Usually ships in 2-12 days

0

12

Scag 04017-05

SERR. FL. HEX HEAD CAPSCREW, 1/4-20 X 3/4

$0.99

$

In Stock, Qty 20+

0

13

Scag 48482

HOSE, HYDRAULIC, 1/4"

$0.99

$

In Stock, Qty 20+

0

14

Scag 481174

FILTER HEAD

$50.99

$

Usually ships in 2-12 days

0

15

Scag 48758

FILTER, HYDRAULIC

$27.99

$

Usually ships in 2-12 days

0

16

Scag 48350-03

ELBOW, 90DEG

$21.99

$

Usually ships in 2-12 days

0

17

Scag 48353-02

COUPLING, HOSE

$4.49

$

Usually ships in 2-12 days

0

18

Scag 04021-10

HEX NUT, ELASTIC STOP, 5/16-18

$0.99

$

In Stock, Qty 20+

0

19

Scag 04040-04

FLATWASHER, 5/16(.344 X .688 X .065)

$0.99

$

In Stock, Qty 20+

0

20

Scag 481196

RELIEF VALVE, DUAL CROSS-OVER

$757.99

$

Usually ships in 2-12 days

0

21

Scag 04001-39

BOLT, HEX HEAD, 5/16-18 X 2-1/4

$0.99

$

In Stock, only 3 left!

0

22

Scag 481199

HOSE ASSEMBLY, PUMP TO VALVE

$57.99

$

Usually ships in 2-12 days

0

23

Scag 48571-03

TUBE CAP, 1-1/16-12

$

$

Not available

24

Scag 48937-02

TEE, RUN, 3/4 X 3/4

$

$

Not available

25

Scag 48350-05

ELBOW, 90DEG, 7/8-14 JIC X 7/8-14 O-RING

$32.99

$

Usually ships in 2-12 days

0

26

Scag 48602

HOSE, RESERVOIR TO FILTER, 3/4

$1.99

$

Usually ships in 2-12 days

0

27

Scag 48935-01

TEE, PUSHLOCK, 1/2

$17.99

$

Usually ships in 2-12 days

0

28

Scag 481198

HOSE ASSEMBLY, RIGHT MOTOR

$77.99

$

Usually ships in 2-12 days

0

29

Scag 48937-01

TEE, RUN

$45.99

$

Usually ships in 2-12 days

0

30

Scag 48309

BUSHING
(Superseded to 482571)

$12.99

$

In Stock, Qty 20+

0

31

Scag 48936-01

HOSE BARB TO JIC SWIVEL

$33.99

$

Usually ships in 2-12 days

0
