MAG-61 (MAG-72) - Scag Magnum III Three-Wheel Riding Mower (SN: 60000 - 69999) PARKING BRAKE LINKAGE Parts Diagram

Magnum III Three-Wheel Riding Mower

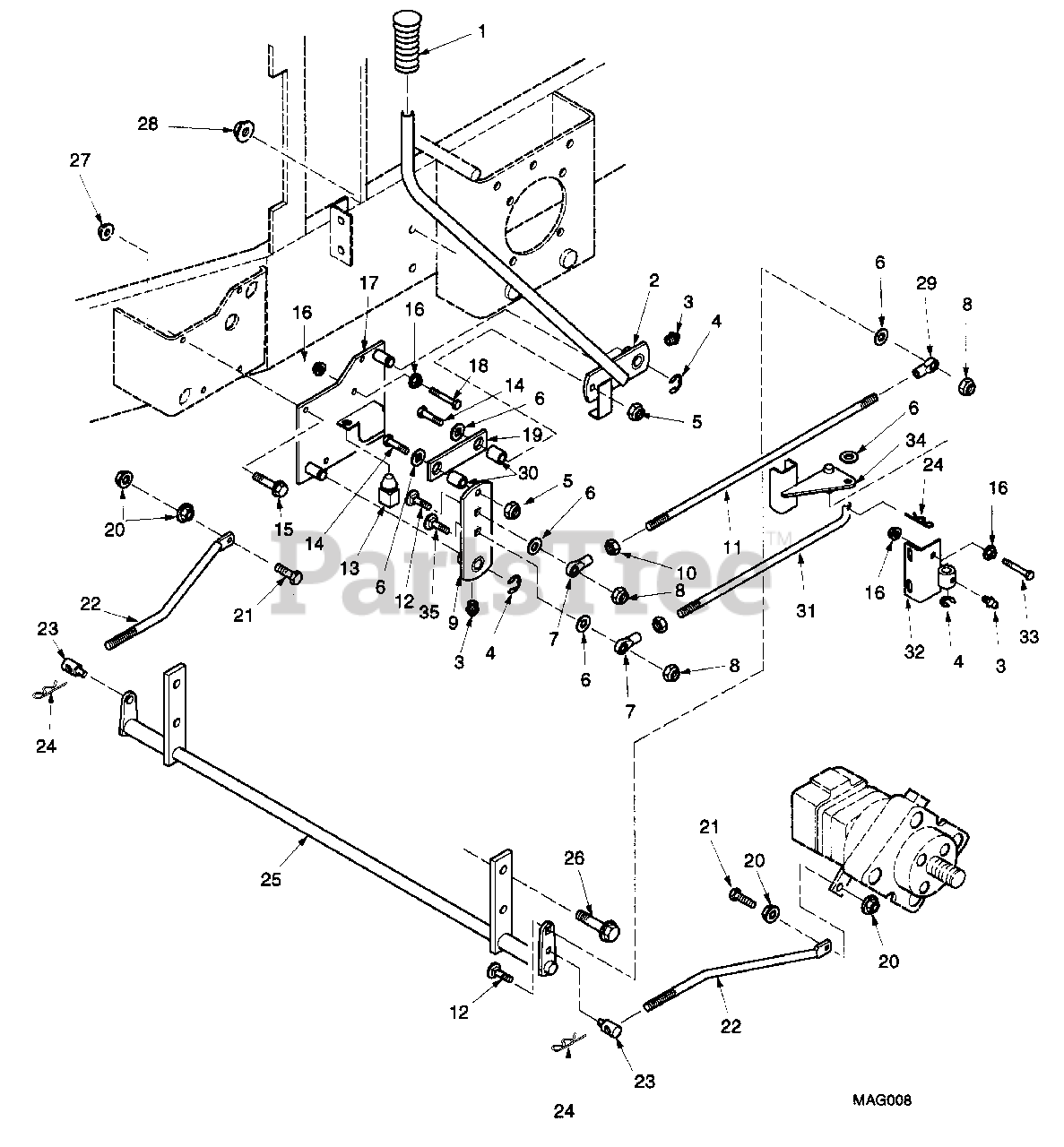

PARKING BRAKE LINKAGE Parts Diagram

  • Title

1

Scag 48093

GRIP, HANDLE

$1.99

$

In Stock, only 1 left!

0

2

Scag 45716

LEVER, BRAKE

$

$

Not available

3

Scag 48114-04

GREASE FITTING

$1.49

$

In Stock, Qty 20+

0

4

Scag 04050-01

RETAINING RING, .625 EXT

$0.99

$

In Stock, Qty 20+

0

5

Scag 04020-04

HEX LOCKNUT, ELASTIC STOP, 3/8-16

$0.99

$

In Stock, Qty 20+

0

6

Scag 04041-07

WASHER, FLAT, 3/8(.391 X .938 X .105)

$0.99

$

In Stock, Qty 20+

0

7

Scag 48464

BALL JOINT, 3/8-24 RH THD

$23.99

$

In Stock, only 1 left!

0

8

Scag 04021-09

HEX LOCKNUT, ELASTIC STOP, 3/8-16

$0.99

$

In Stock, Qty 20+

0

9

Scag 45782

ARM, WELDMENT

$

$

Not available

10

Scag 04020-14

HEX NUT, 3/8-24

$0.99

$

In Stock, Qty 7

0

11

Scag 04004-23

ROD, PARKING BRAKE

$7.99

$

Usually ships in 2-12 days

0

12

Scag 04003-05

CARRIAGE BOLT, 3/8-16 X 1-1/2

$0.99

$

In Stock, Qty 11

0

13

Scag 48522

SWITCH, INTERLOCK
(Superseded to 481474)

$106.99

$

In Stock, only 3 left!

0

14

Scag 04001-19

BOLT, HEX HEAD, 3/8-16 X 1.00

$0.99

$

In Stock, Qty 20+

0

15

Scag 04017-17

SERR. FL. HEX HEAD CAPSCREW, 5/16-18 X 1.00

$0.99

$

Usually ships in 2-12 days

0

16

Scag 04019-04

SERR. FL. HEX NUT, 3/8-16

$0.99

$

In Stock, Qty 20+

0

17

Scag 45781

MOUNTING BASE, PARKING BRAKE

$

$

Not available

18

Scag 04001-21

BOLT, HEX HEAD, 3/8-16 X 1-1/4

$0.99

$

In Stock, Qty 20+

0

19

Scag 421338

LINK, CAM

$94.99

$

Usually ships in 2-12 days

0

20

Scag 04019-02

SERR. FL. HEX NUT, 1/4-20

$0.99

$

In Stock, Qty 20+

0

21

Scag 04001-59

BOLT, HEX HEAD, 1/4-20 X 1-1/4

$0.99

$

In Stock, Qty 17

0

22

Scag 44108

ROD, BRAKE ACTUATOR

$13.99

$

Usually ships in 2-12 days

0

23

Scag 43032

SWIVEL

$6.49

$

Usually ships in 2-12 days

0

24

Scag 04062-02

HAIR PIN, COTTER, .08 X 1.19

$0.99

$

In Stock, Qty 20+

0

25

Scag 45705

ACTUATOR, BRAKE

$

$

Not available

26

Scag 04017-37

SERR. FL HEX HEAD CAPSCREW, 1/2-13 X 1-3/4

$2.49

$

In Stock, only 4 left!

0

27

Scag 04019-03

SERR. FL. HEX NUT, 5/16-18

$0.99

$

In Stock, Qty 16

0

28

Scag 04019-06

SERR. FL. HEX NUT, 1/2-13

$0.99

$

In Stock, Qty 20+

0

29

Scag 48544

BALL JOINT, 3/8-24 LH THREAD

$27.99

$

Usually ships in 2-12 days

0

30

Scag 43212

SLEEVE

$4.49

$

Usually ships in 2-12 days

0

31

Scag 44124

ROD, INTERLOCK

$19.99

$

Usually ships in 2-12 days

0

32

Scag 45834

BRACKET, NEUTRAL LOCKOUT MOUNTING

$

$

Not available

33

Scag 04001-51

BOLT, HEX HEAD, 3/8-16 X 3.75

$1.49

$

In Stock, Qty 20+

0

34

Scag 45835

BRACKET, NEUTRAL LOCKOUT

$54.99

$

Usually ships in 2-12 days

0

35

Scag 04003-03

CARRIAGE BOLT

$1.49

$

In Stock, Qty 5

0
