MAG-61 (MAG-72) - Scag Magnum III Three-Wheel Riding Mower (SN: 60000 - 69999) PUMP AND FAN DRIVE SYSTEMS Parts Diagram

Magnum III Three-Wheel Riding Mower

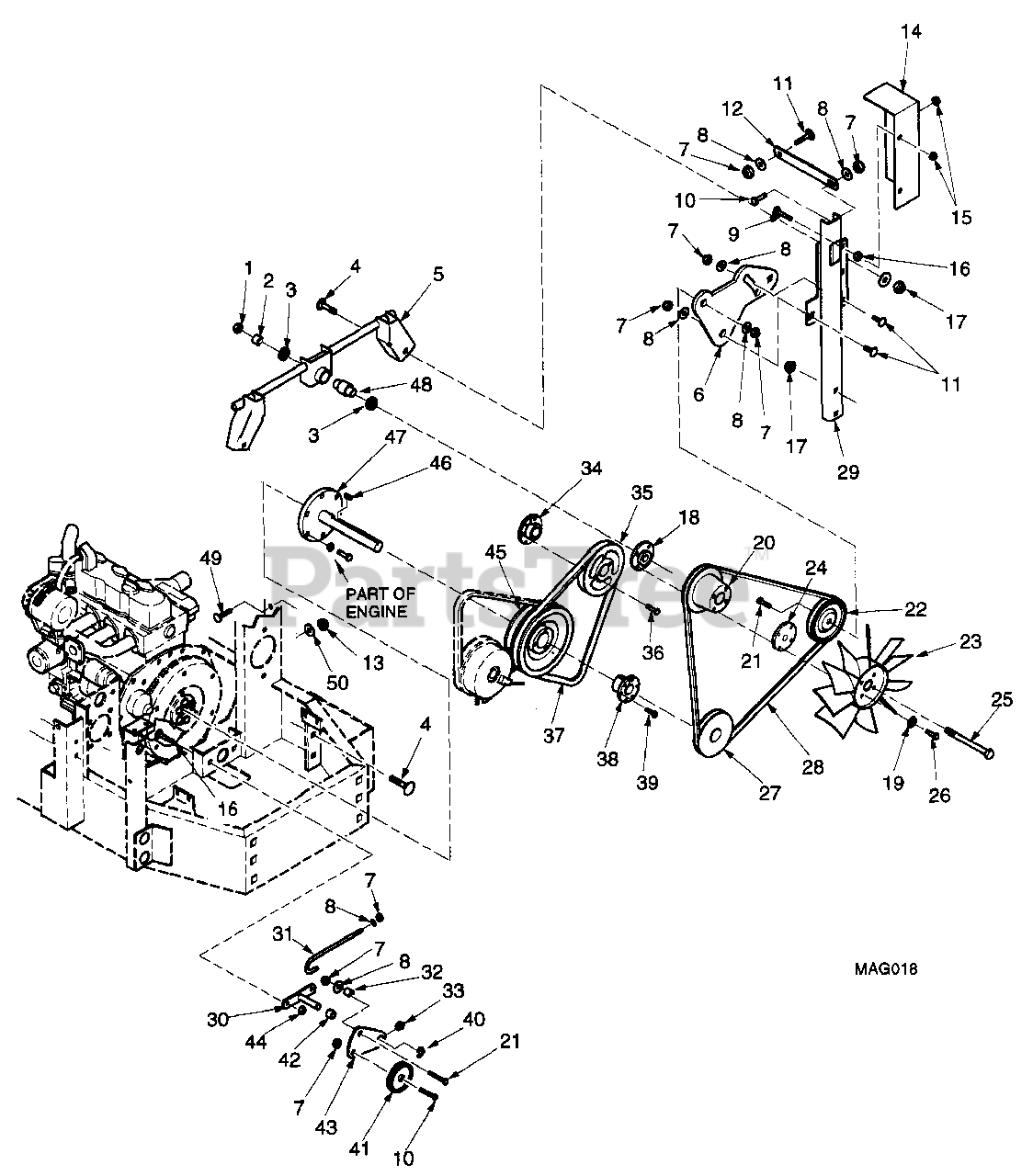

PUMP AND FAN DRIVE SYSTEMS Parts Diagram

  • Title

1

Scag 04021-16

HEX LOCKNUT, 1/2-20

$4.49

$

In Stock, only 2 left!

0

2

Scag 43335

SPACER, FAN

$10.99

$

Usually ships in 2-12 days

0

3

Scag 48442

BEARING

$37.99

$

Usually ships in 2-12 days

0

4

Scag 04003-19

CARRIAGE BOLT, 1/2-13 X 1-1/4

$1.99

$

Usually ships in 2-12 days

0

5

Scag 46872

BRACKET, FAN MOUNTING(INCLUDES 3, 48)

$

$

Not available

6

Scag 422017

IDLER BRACKET, FAN DRIVE

$28.99

$

Usually ships in 2-12 days

0

7

Scag 04021-09

HEX LOCKNUT, ELASTIC STOP, 3/8-16

$0.99

$

In Stock, Qty 20+

0

8

Scag 04041-07

FLAT WASHER, 3/8(.391 X .938 X .105)

$0.99

$

In Stock, Qty 18

0

9

Scag 04003-06

CARRIAGE BOLT, 1/4-20 X 1

$0.99

$

In Stock, Qty 6

0

10

Scag 04001-32

BOLT, HEX HEAD, 3/8-16 X 1-1/4

$0.99

$

In Stock, Qty 14

0

11

Scag 04003-11

CARRIAGE BOLT, 3/8-16 X 1-1/4

$0.99

$

In Stock, Qty 7

0

12

Scag 422019

BRACE, FAN SUPPORT

$10.99

$

Usually ships in 2-12 days

0

13

Scag 04019-02

SERR. FL. HEX NUT, 1/4-20

$0.99

$

In Stock, Qty 20+

0

14

Scag 421808

GUARD, PUMP BELT

$29.99

$

Usually ships in 2-12 days

0

15

Scag 04021-08

HEX LOCKNUT, ELASTIC STOP, 1/4-20

$0.99

$

In Stock, Qty 10

0

16

Scag 04003-12

CARRIAGE BOLT, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 20+

0

17

Scag 04019-06

SERR. FL. HEX NUT, 1/2-13

$0.99

$

In Stock, Qty 20+

0

18

Scag 43334

HUB, FAN

$66.99

$

Usually ships in 2-12 days

0

19

Scag 04030-02

LOCKWASHER, 1/4

$0.99

$

In Stock, Qty 20+

0

20

PULLEY, FAN

Note: AVAILABLE ONLY FROM THE ENGINE MANUFACTURER.

$

$

Not available

21

Scag 04001-21

BOLT, HEX HEAD, 3/8-18 X 1-3/4

$0.99

$

In Stock, Qty 20+

0

22

Scag 481315

PULLEY, BELT TENSIONING IDLER

$35.99

$

In Stock, only 1 left!

0

23

FAN

Note: AVAILABLE ONLY FROM THE ENGINE MANUFACTURER.

$

$

Not available

24

Scag 43390

HUB, FAN

$170.99

$

Usually ships in 2-12 days

0

25

Scag 04001-114

BOLT, HEX HEAD, 1/2-20 X 4.75 LH THREAD

$38.99

$

Usually ships in 2-12 days

0

26

Scag 04001-116

BOLT, HEX HEAD, 1/4-28 X 1

$0.99

$

Usually ships in 2-12 days

0

27

Scag 481330

PULLEY, 4.25 O.D. X 1.4375 I.D.

$119.99

$

Usually ships in 2-12 days

0

28

Scag 481114

BELT, FAN DRIVE

$20.99

$

Usually ships in 2-12 days

0

29

Scag 45713

UPRIGHT, FAN SUPPORT - RH

$61.99

$

Usually ships in 2-12 days

0

30

Scag 45307

BASE, IDLER PIVOT - PUMP
(Superseded to 45037)

$31.99

$

Usually ships in 2-12 days

0

31

Scag 44107

ROD, J-HOOK

$6.99

$

Usually ships in 2-12 days

0

32

Scag 43282

SPACER, J PULL ROD

$7.99

$

Usually ships in 2-12 days

0

33

Scag 48114-04

GREASE FITTING

$1.49

$

In Stock, Qty 20+

0

34

Scag 48761

TAPER HUB, .75 BORE

$38.99

$

Usually ships in 2-12 days

0

35

Scag 48790

PULLEY, PUMP, 5.94 O.D.
(Superseded to 482648)

$38.99

$

In Stock, Qty 5

0

36

Scag 04001-109

BOLT, HEX HEAD, 1/4-20 X 3/8

$2.49

$

In Stock, Qty 6

0

37

Scag 481103

BELT, PUMP DRIVE

$48.99

$

Usually ships in 2-12 days

0

38

Scag 481168

TAPER HUB, 1-7/16 BORE

$63.99

$

Usually ships in 2-12 days

0

39

Scag 04015-09

CPSCR, SOCKET HEAD, 1/4-20 X 1-1/4

$0.99

$

Usually ships in 2-12 days

0

40

Scag 04050-02

RETAINING RING, .75 EXT

$0.99

$

In Stock, Qty 10

0

41

Scag 48181

PULLEY, IDLER, 5.95 O.D.

$26.99

$

In Stock, Qty 10

0

42

Scag 48100-05

BUSHING, OILITE - .75 I.D.

$0.99

$

In Stock, Qty 18

0

43

Scag 46878

ARM, IDLER(INCLUDES 33, 42)

$83.99

$

Usually ships in 2-12 days

0

44

Scag 04019-03

SERR. FL. HEX NUT, 5/16-18

$0.99

$

In Stock, Qty 16

0

45

Scag 481329

PULLEY, DOUBLE GROOVE

$179.99

$

Usually ships in 2-12 days

0

46

Scag 04063-22

KEY, 3/8 X 1-1/4

$1.99

$

Usually ships in 2-12 days

0

47

STUBSHAFT, CRANKSHAFT

Note: AVAILABLE ONLY FROM THE ENGINE MANUFACTURER.

$

$

Not available

48

Scag 43139

SPACER

$44.99

$

Usually ships in 2-12 days

0

49

Scag 04003-09

CARRIAGE BOLT, 1/4-20 X 1-1/4

$0.99

$

In Stock, Qty 9

0

50

Scag 04040-14

FLATWASHER, 1/4

$0.99

$

In Stock, Qty 7

0
